TOSLINE-S20 Active Star Coupler (ASC25) Instruction Manual 6F3B0360
TOSLINE S20 7

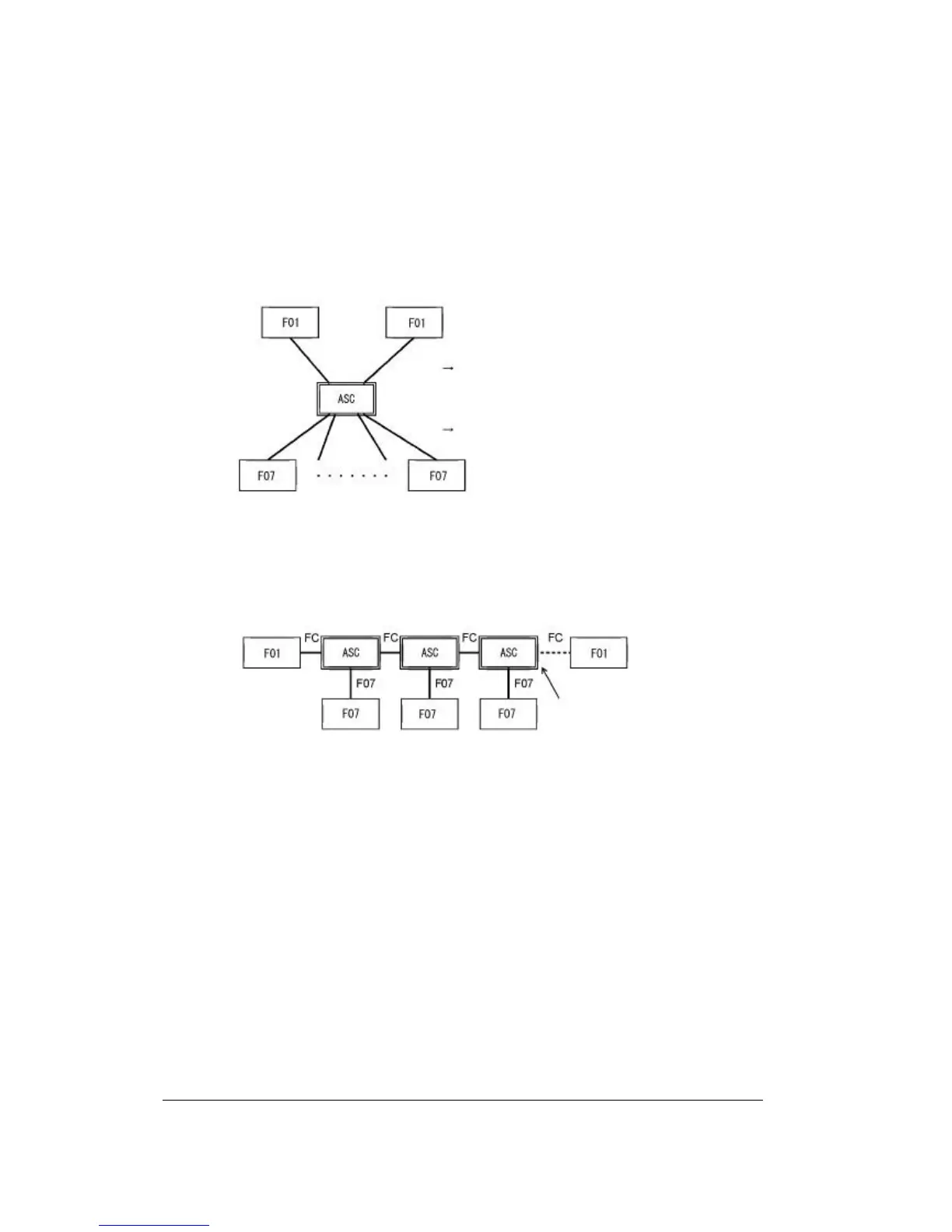

3. System Configurations
Adoption of the Active Star Coupler provides a system configuration illustrated below.
(1) Basic configuration
The maximum applicable number of F01 (FC) Type
connector stations is two.
The maximum applicable number of F07 Type
connector stations is eight.
F01: F01 (FC) Type station
F07: F07 Type station
Figure 3.1
(2) Active Star Coupler daisy-shain connection
The maximum applicable
number of ASCs in daisy-
chain connection is nine.
Figure 3.2
