TOSLINE-S20 Active Star Coupler (ASC25) Instruction Manual 6F3B0360
TOSLINE S20 13
6. Hardware
The section describes the hardware of Active Star Coupler.
6.1 Product construction
(1) Active Star Coupler main unit (1 unit)
Pet Name : ASC25
Product Code : SASC25*US
Target apparatus for connection : TOSLINE-S20 fiber optic network stations.
(Various kinds of stations, ASC22, ASC25)
(2) Fuse (2 pieces)
Rating: 250 V AC, 3 A
(One is attached to the apparatus, the other is for spare.)
(3) L-shape bracket (2 units)
(Both are attached to the apparatus on shipment.)

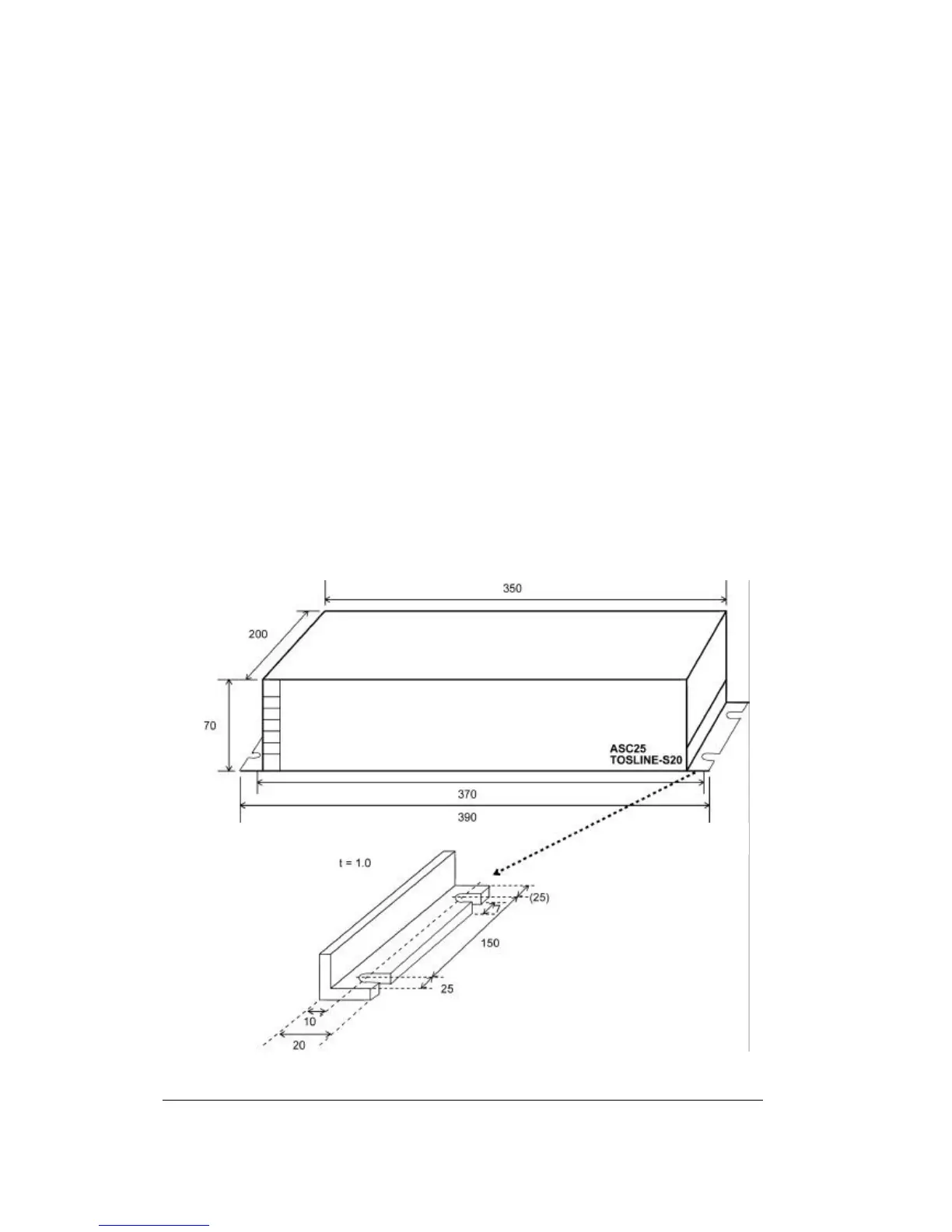

6.2 External dimensions
External dimensions
Unit: mm
L-shape bracket
Figure 6.1
