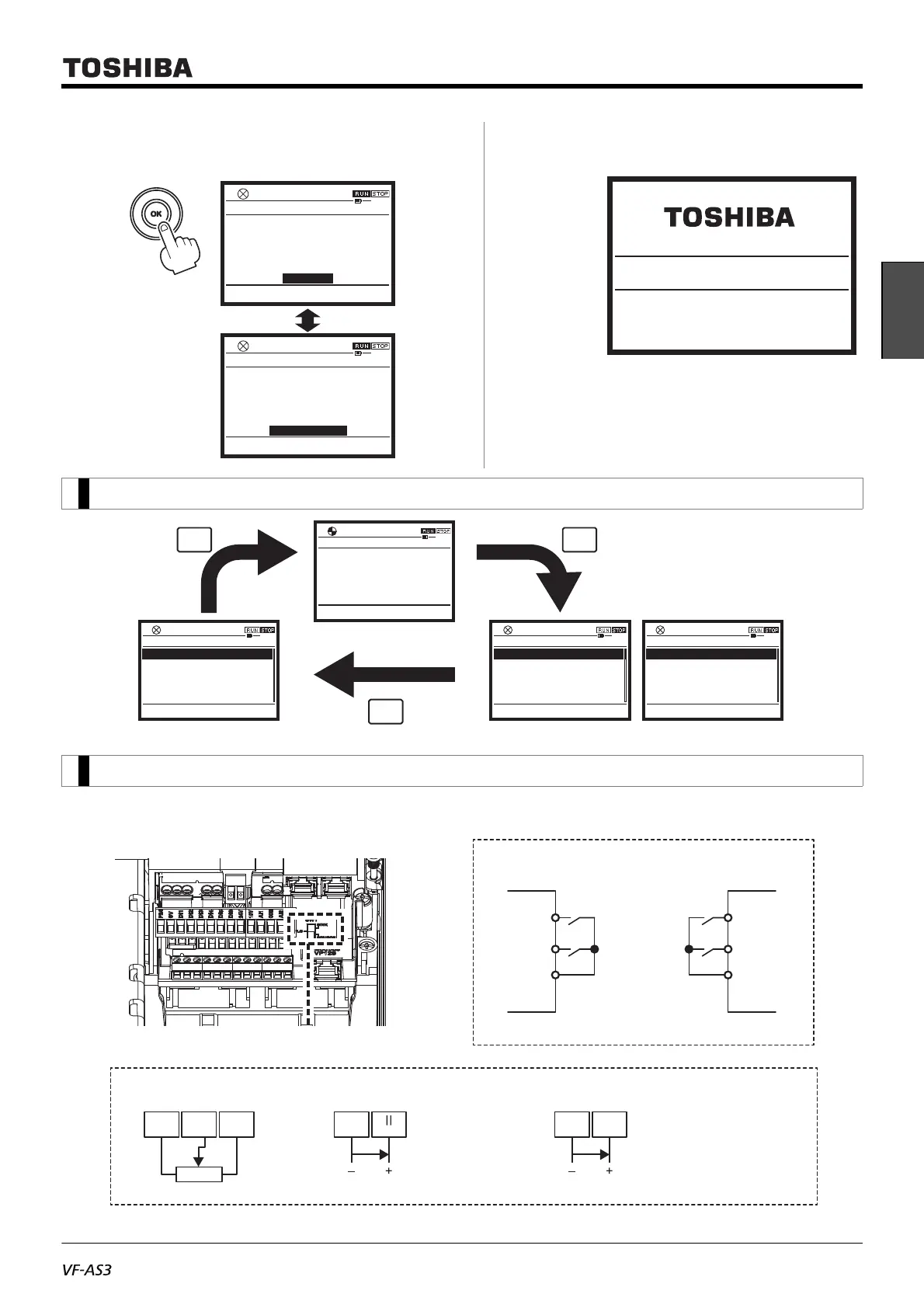

Select sink logic or source logic by slide switch [SW1], then connect for external signals. Set the parameters for
operation.
(3) Press [OK] or [F4] key.
The screens below are displayed alternately while
setting a region.
(4) When setting is complete, the initial screen immediately
after power on is displayed for four seconds.
Then, [Standard mode] screen is displayed.
(5) Please set a slide switch SW1 to select sink logic,
source logic, or PLC (external power supply). Refer to
the instruction manual for details.
6. Switch the operation panel display
7. Operate the inverter with external signals
CopyKeypad
0.0HzSTOP
02:40
Top View Mode
EU
Easy
Setting for Europe
Monitor
CopyKeypad
0.0HzSTOP
02:40
Top View Mode
lnit
Easy
Initializing...
Monitor
HELLO
200.0V 0.75KW- 1.00HP
VFAS3-2007PM
Easy Keypad Copy Monitor
Hz
20.0HzRUN
20.0
12:40
CMOd : Run command select
FMOd : Frequency command 1
ACC : Acceleration time 1
dEC : Deceleration time 1
UL : Upper limit frequency
Top View
0.0HzSTOP
12:38
1
10
10.0s
10.0s
1. History function
2. Direct access
3. Guidance function
4. Basic parameters
5. Extended parameters(F - - -)
Top View
0.0HzSTOP
12:38
Monitor
Parameter Setup Mode
Direction of rotation
Output current
Frequency reference
DC bus voltage
Output vol with filter
Top View Easy Parameter
0.0HzSTOP
12:38
Forward
0%
20.0Hz
0%
0%
Status Monitor Mode
Top View Mode
Easy parameters
60.0Hz
Monitor
[Monitor mode]
[Standard mode]
[Setting mode] [Easy mode]
ESCESC
ESC
Control terminal block
Side switch [SW1]
CC
R
F
P24
R
F
< Sink logic > < Source logic >
F: Forward run command
Forward run when F-CC or P24-F is ON.
R: Reverse run command
Run command
CC RR PP
<FMOd>=1
1) Potentiometer
Freguency command
CC
<FMOd>=3
2) Current input (4 to 20mA)
CC RX
<FMOd>=2
3) Voltage input (0 to 10V) or (-10 to +10V)
