8
E6582188
Step 6A

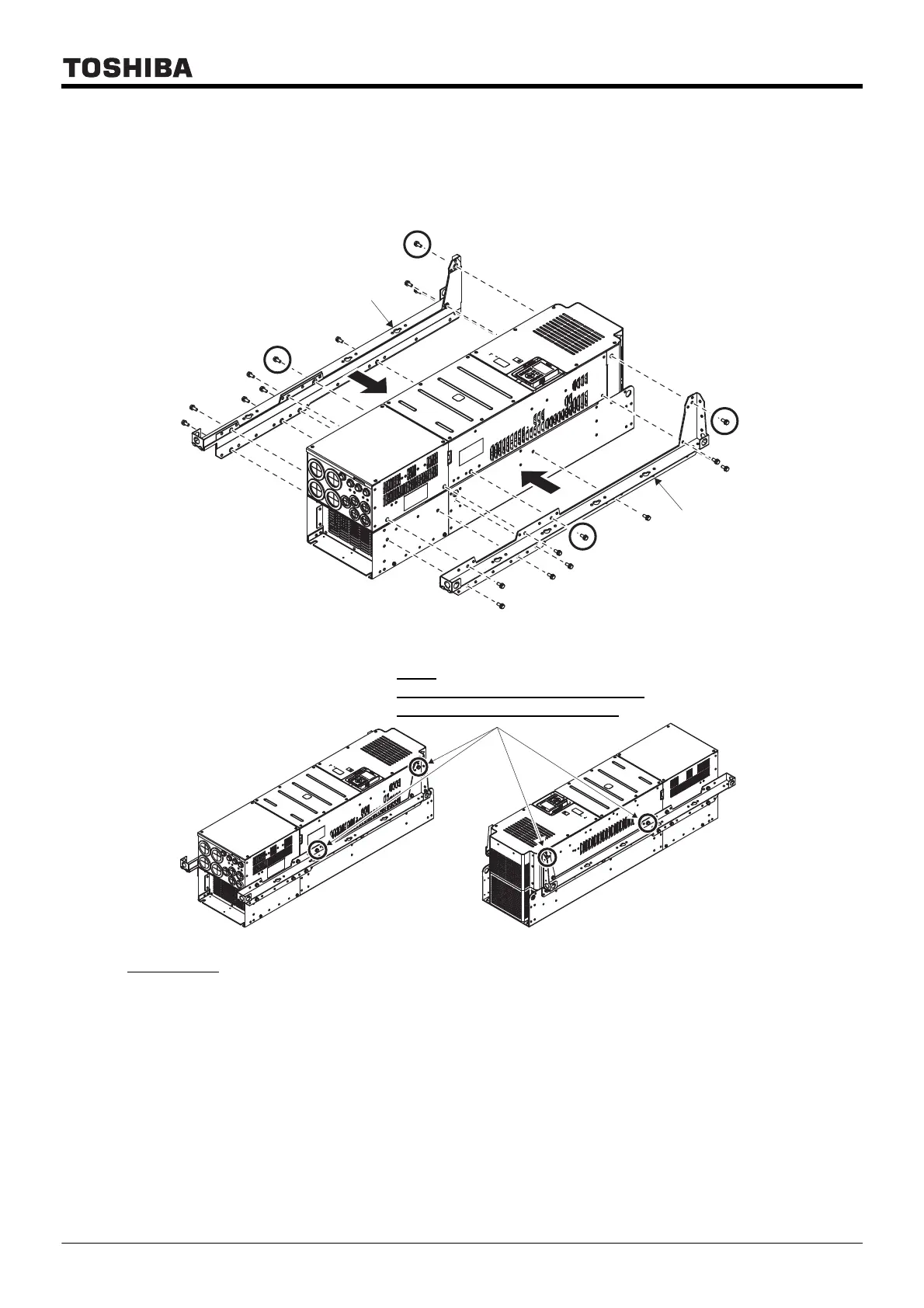

Fix Part (A) and Part (B) on both sides of Inverter and PB7-4132K by the attached Bolts M8 (20pcs).
Tightening torque of M8 bolts
Circled on bottom figure(4pcs): 7.3Nm
Others (16pcs): 11.8Nm
Go to Step7
(B)
(A)
Notice
These bolts must be tightened at 7.3Nm
because they may be broken easily.
