14
E6582188

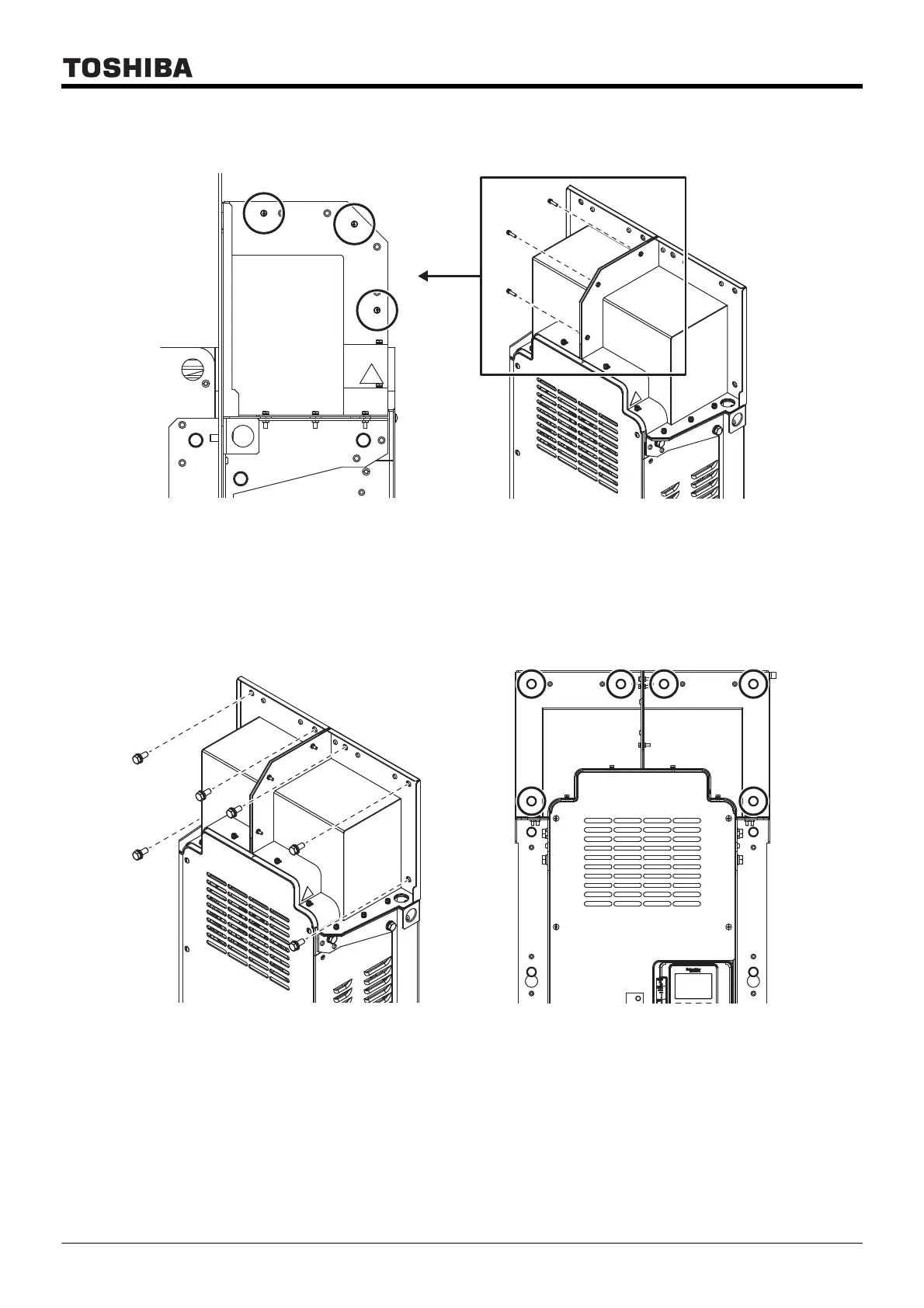

Step 11
Tighten Part (F) and (G) by the attached screws M4 (3pcs) as temporary with adjusting.
Step 12
Tighten 6pcs M8 bolts (not included with this kit)
Tighten all temporary tightened M4 screws at Step 10 and Step 11 (13pcs) on Part (F) and (G) finally.
Tightening torque of M4 screws: 1.2Nm
