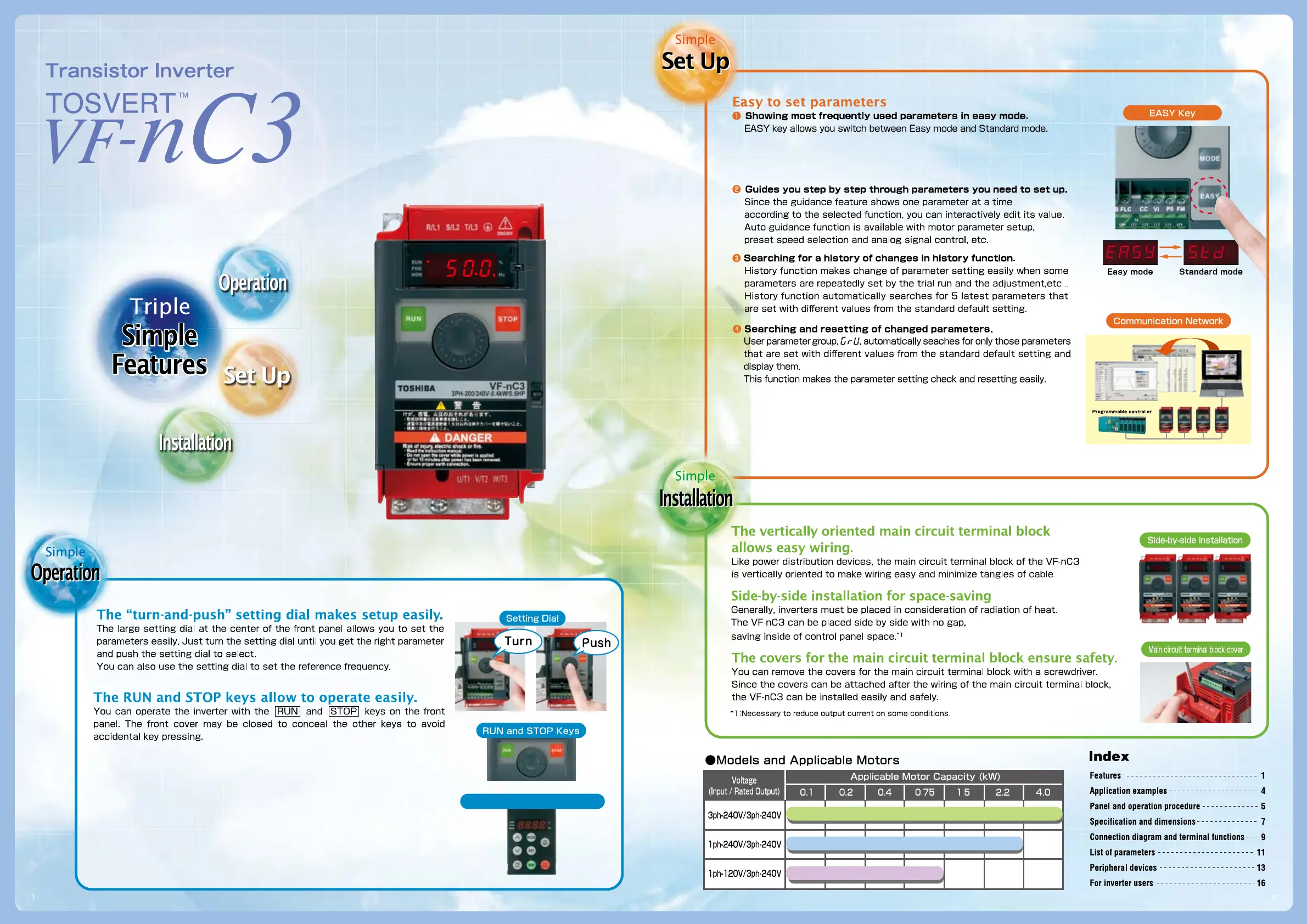

The Extension panel option allows to operate the
VF-nC3 in front of the cabinet.
An extension panel option installed on the surface of the cabinet can operate
the VF-nC3 in front of the cabinet.
It is possible to monitor the output frequency on the VF-nC3 and the output current
on the extension panel option (RKP007Z). It is possible to use it as a digital meter.
＊The extension panel option is connected to the inverter with the optional cable.
In the extension panel option, there is no setting dial.
Extension panel option <RKP007Z>
Easy mode : Scrolls through a list of only seven parameters.
You can optionally add up to 24 parameters to the list.
Standard mode : Rotates through all parameters.
Built-in RS485 communication
Built-in RS485 communication enable to control the inverter and build network.
◯ Communication rate : 38.4 kbps max.
◯ Compatible with the Modbus RTU and Toshiba protocols.
You can connect a PC to manage parameters and monitor operating conditions.
A RJ45 connector for RS485 communication is
located on the bottom of the VF-nC3.
