Toshiba TOSVERT VF-S11 Instruction Manual Supplement

E6581225
6

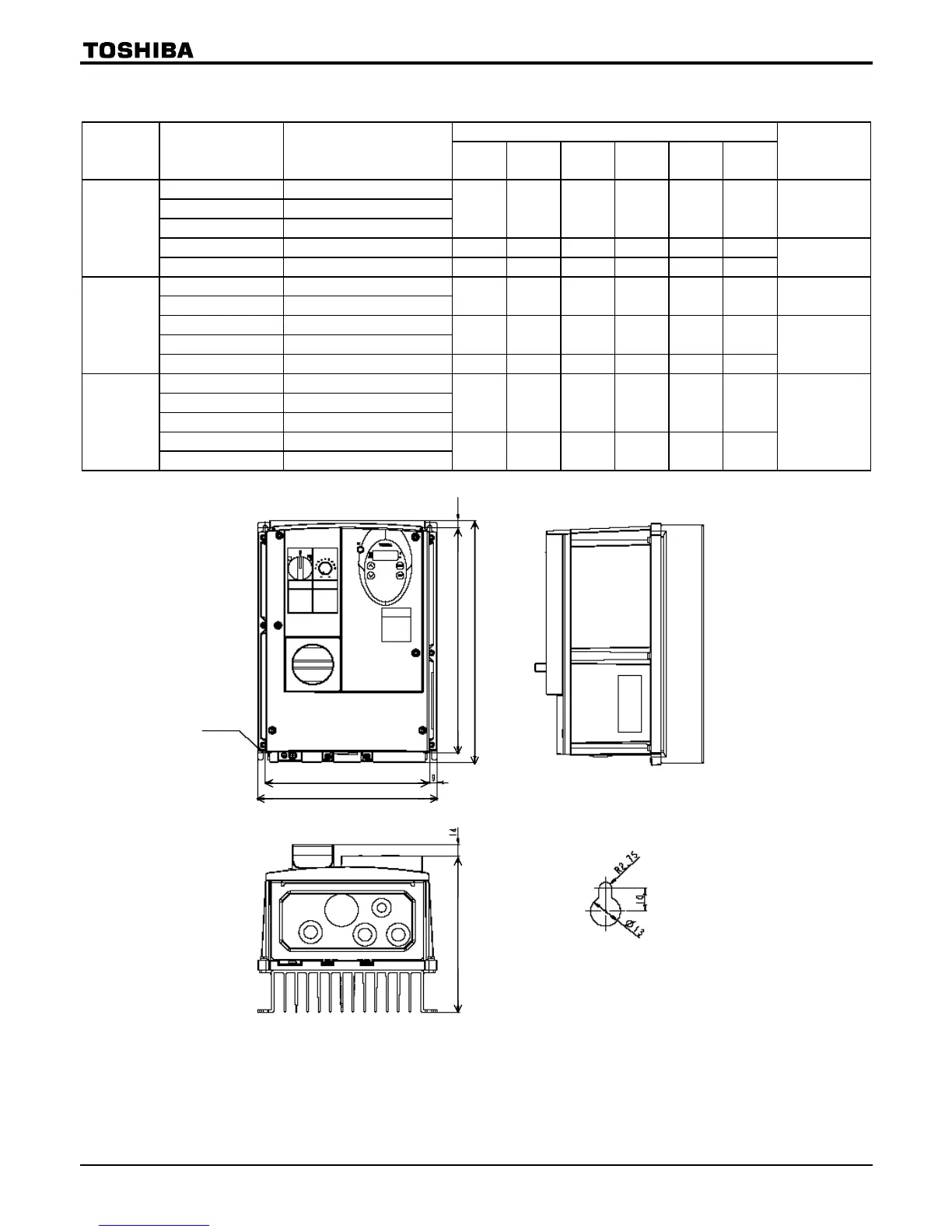

■Outside dimensions
Outside dimensions (mm)
Voltage
class
Applicable
Motor
（kW）
Inverter type
WHDW1H1D1
Cable port
0.2 VFS11S-2002PLE
0.4 VFS11S-2004PLE
0.75 VFS11S-2007PLE
210 240 177 192 218 14
φ19×3
φ21×1
1.5 VFS11S-2015PLE 215 297 206 197 277 14
1-phase
200V
2.2 VFS11S-2022PLE 230 340 222 212 320 14
φ19×1
φ23×3
0.4 VFS11-2004PME
0.75 VFS11-2007PME
210 240 177 192 218 14
φ19×3
φ21×1
1.5 VFS11-2015PME
2.2 VFS11-2022PME
215 297 206 197 277 14
3-phase
200V
3.7 VFS11-2037PME 230 340 222 212 320 14
φ19×1
φ23×3
0.4 VFS11-4004PLE
0.75 VFS11-4007PLE
1.5 VFS11-4015PLE
215 297 206 197 277 14
2.2 VFS11-4022PLE
3-phase
400V
3.7 VFS11-4037PLE
230 340 222 212 320 14
φ19×1
φ23×3
W1 (Installation dimension)
W
2-R2.75
H1 (Installation dimension)
H
D

Toshiba TOSVERT VF-S11 Specifications

General

Model	TOSVERT VF-S11
Category	Inverter
Output Frequency	0.1-400Hz
Frequency Range	0.1-400Hz
Control Method	V/f Control, Sensorless Vector Control
Power Rating	0.2kW to 15kW
Cooling Method	Forced air cooling
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	Modbus RTU
Input Voltage	200-240V, 380-480V
Braking Unit	Built-in (optional external braking resistor)
