Toshiba TOSVERT VF-S11 Instruction Manual Supplement

E6581225
5

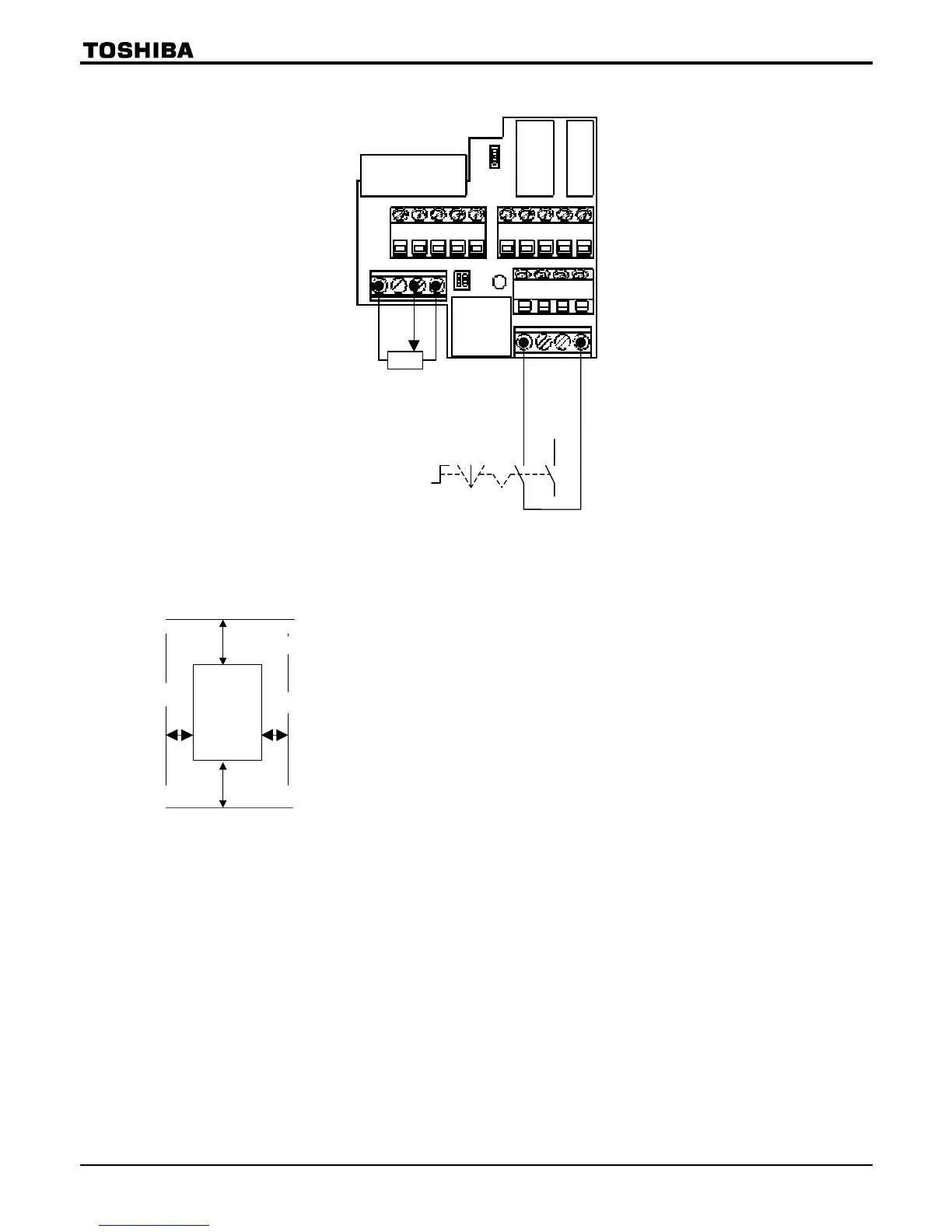

■Diagram of cables connected at the factory
Note: The colors indicated in the above figure refer to the colors of cables.
■Installation environment
• Operate in areas where ambient temperature ranges from -10°C to
+40°C.
• Install the inverter in a well-ventilated place and mount it on a flat metal
plate in portrait orientation. Install the inverter so that it is not inclined
more than ±10° from the vertical.
• Leave a space of 10cm or more on the upper and lower sides of the
inverter, and a space of 5cm or more on each side.
• The inverter has a built-in cooling fan. The cooling fan has a useful life o
f
approximately 30,000 hours (2 to 3 years when operated continuously),
so it needs to be replaced periodically. The inverter has a built-in cooling
fan. (Single/three-phase 200V-0.75kW models and smaller are not
equipped with cooling fans.)
If the cooling fan does not operate normally, the temperatures of the
internal electrical components will rise high, and as a result their lives will
be shortened.
So inspect it periodically.
0 Fw
Potentiometer fo
r
frequency setting
Operation ON-OFF
rotary switch
Red
BlueBlue
White
Black
PP VIB CC
CCF
5cm or more
5cm or more
10cm or more
10cm or more
VFS11

Toshiba TOSVERT VF-S11 Specifications

General

Model	TOSVERT VF-S11
Category	Inverter
Output Frequency	0.1-400Hz
Frequency Range	0.1-400Hz
Control Method	V/f Control, Sensorless Vector Control
Power Rating	0.2kW to 15kW
Cooling Method	Forced air cooling
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	Modbus RTU
Input Voltage	200-240V, 380-480V
Braking Unit	Built-in (optional external braking resistor)
