3

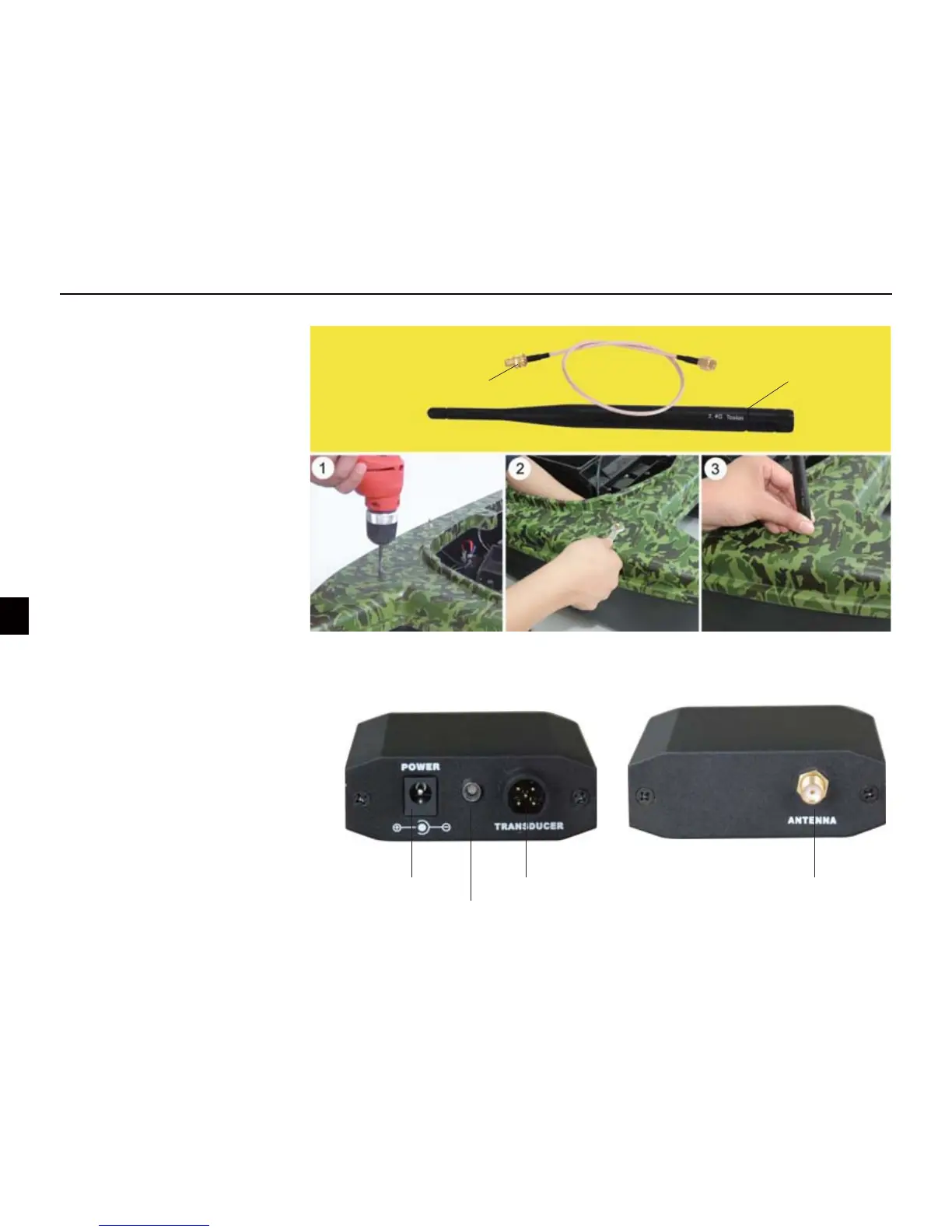

1) Drill an hole (5mm diameter)
on the selected position.
2) Screw down the wisher and
nut from the antenna
extended , then hold the DC
cable through the hole from
inner housing, and Screw
tighted the nut by an wrench.
3) Screw the antenna on boat
antenna_extended cable
connect to battery connect to transducer
signal indicator
connect to antenna
with antenna_extended
cable
antenna for transmitter
Antenna Installation
After all the installatiion are
nished, please connect the
parts (transducer, antenna,
battery) to the transmiter.
Then x the transmitter inner
the boat.
Wiring
Installation (antenna & wiring)
