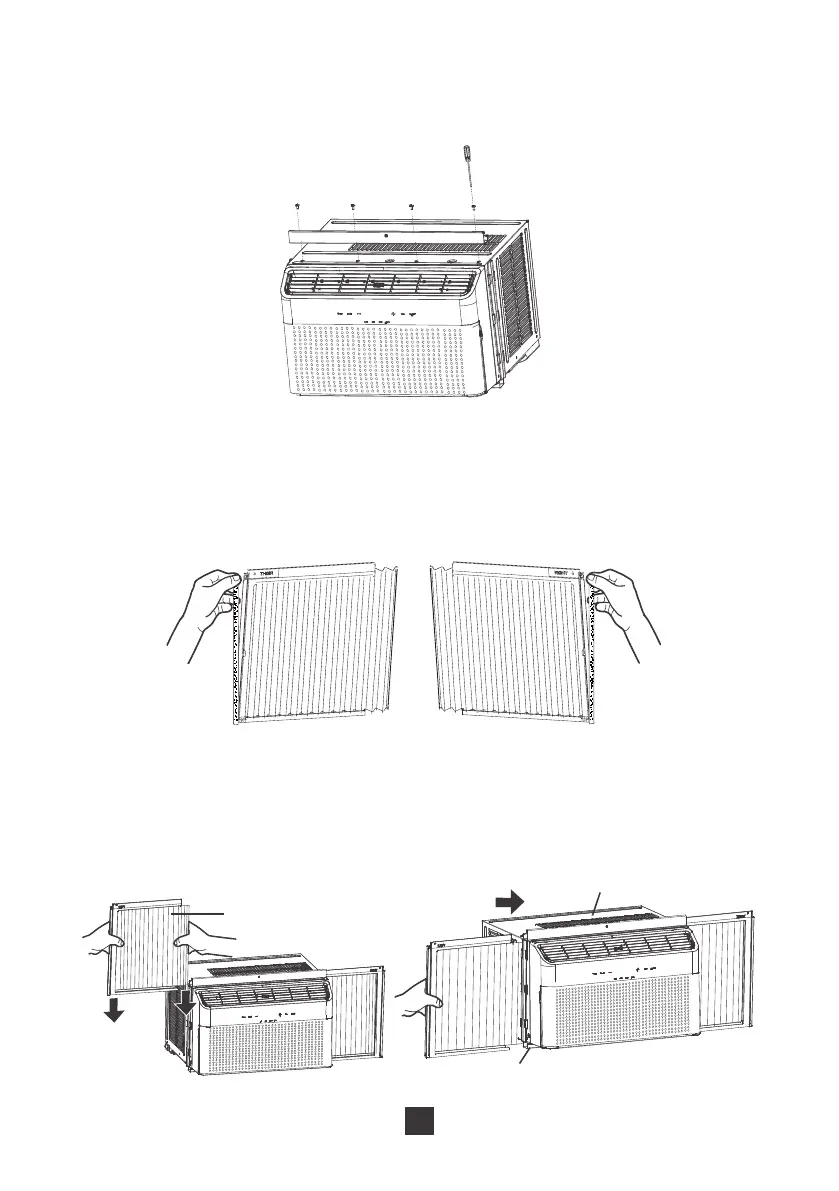

2. Use four (4) included Type A screws to fix the top mounting rail to the outer case
of the air conditioner. The flat edge with a single hole in the middle should be
closest to you.
Step 2: Install accordion panels
1. Remove the accordion panel seal from the paper backing. With the LEFT and
RIGHT text visible, apply the panel seal as shown in the figure below.
2. With the LEFT and RIGHT text facing towards you, pull the accordion panel towards
the unit. Align the end of the accordion panel with plastic groove on the unit and
slide to bottom. Slide the plastic framing of the accordion panel into the top mounting
rail and the lower guide rail.
top mounting rail
lower guide rails
accordion panel
