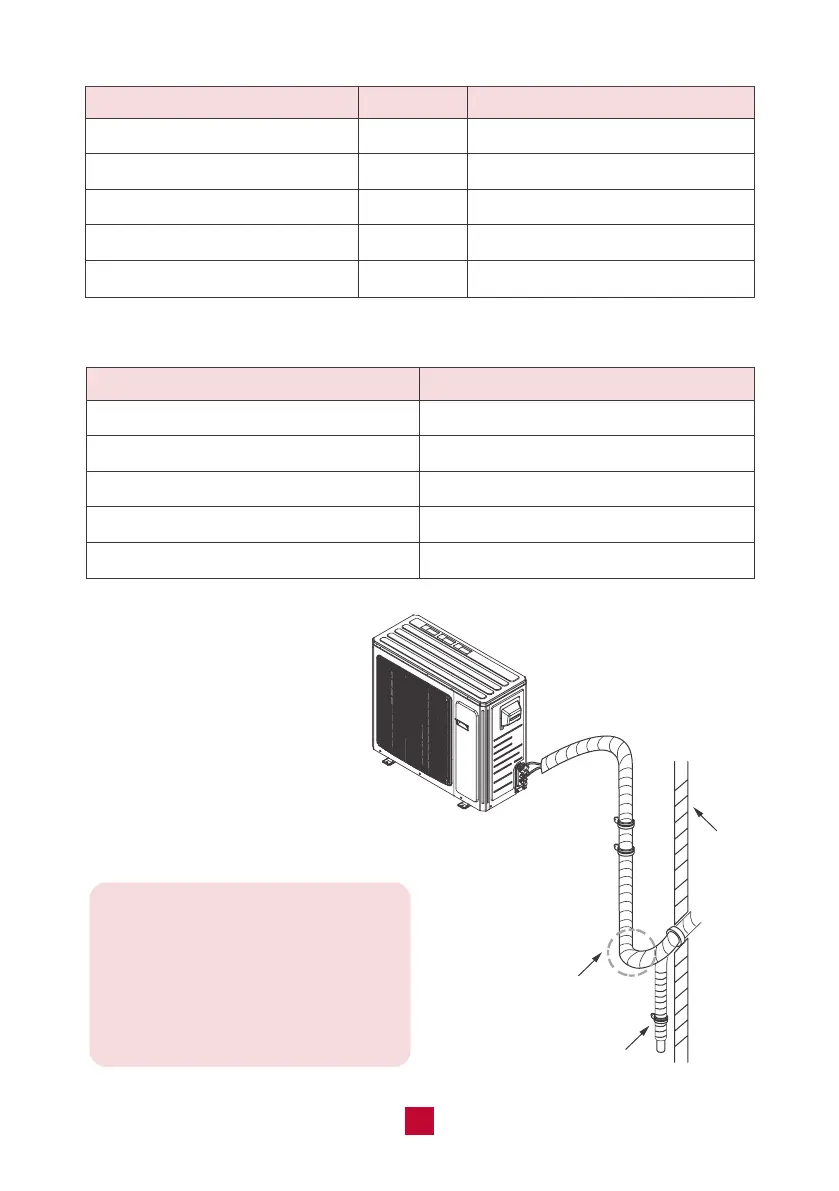

Note: If the outdoor unit is placed
higher than the wall hole you will
need to set a U-shaped curve in
the pipe before the pipe goes into
the room, in order to prevent rain
from getting into the room.
U-shaped curve
wall
drain hose
Minimum Cross-Sectional Area of Power and Signal Cables North American
Model
GWH09AFCXB-A3DNA2B
MC
GWH09AFCXB-D3DNA2B
GWH12AFCXB-A3DNA2C
GWH12AFCXB-D3DNA2C
GWH18AFDXE-D3DNA2B
A
13A
9A
21A
9A
13A
Recommended Wire Gauge
AWG 16+
AWG 18+
AWG 12+
AWG 18+
AWG 16+
Appliance Amps (A)
10
13
18
25
30
AWG
18
16
14
12
10
