Technical Information
Service Manual
TW09HQ1B8A/I TW09CQ2B8DI
TW12CQ2B8DI TW12HQ1B8A/I

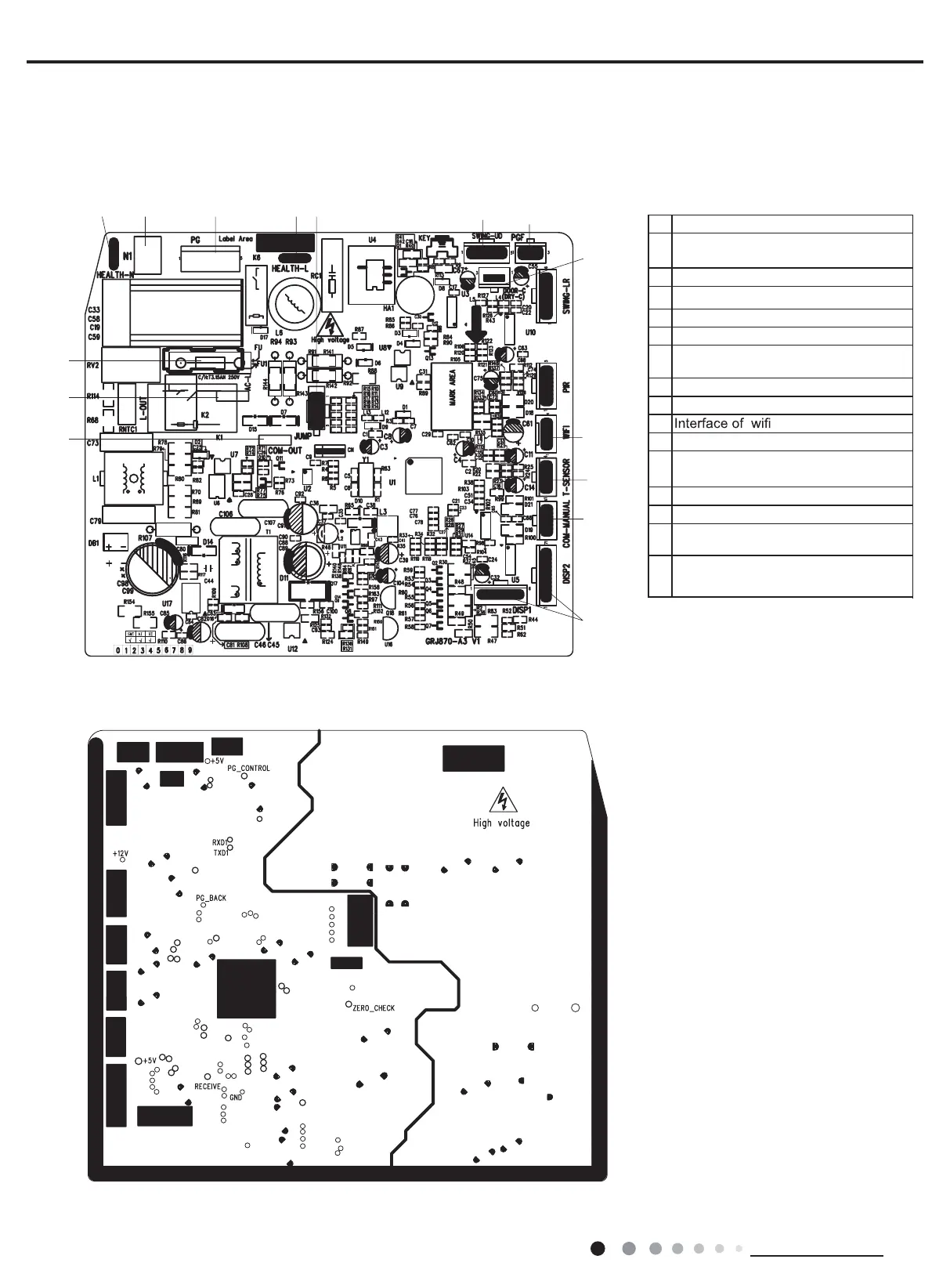

No Name
1
Interface of communication wire for
indoor unit and outdoor unit
2Interface of live wire
3Interface of neutral wire
4Interface of fan
5Jumper cap
6
7Up&down swing interface
Interface of health function live wire
(only for the mode with this function)
8Feedback interface of indoor unit
9
10
11
Interface of tube temperature sensor
12
Wired controller
(only for the mode with this function)
13
Display interface
Fuse
14
15
Interface of gate control
(only for the mode with this function)
● Top view
● Bottom view
2
1
13
315
4
56
78
9
10
14
11
12
Interface of health function neutral wire
(only for the mode with this function)
