Technical Information
Service Manual
TW09HQ2C2DI TW18HQ2C2DI
TW12HQ2C2DI TW24HQ2C2DI

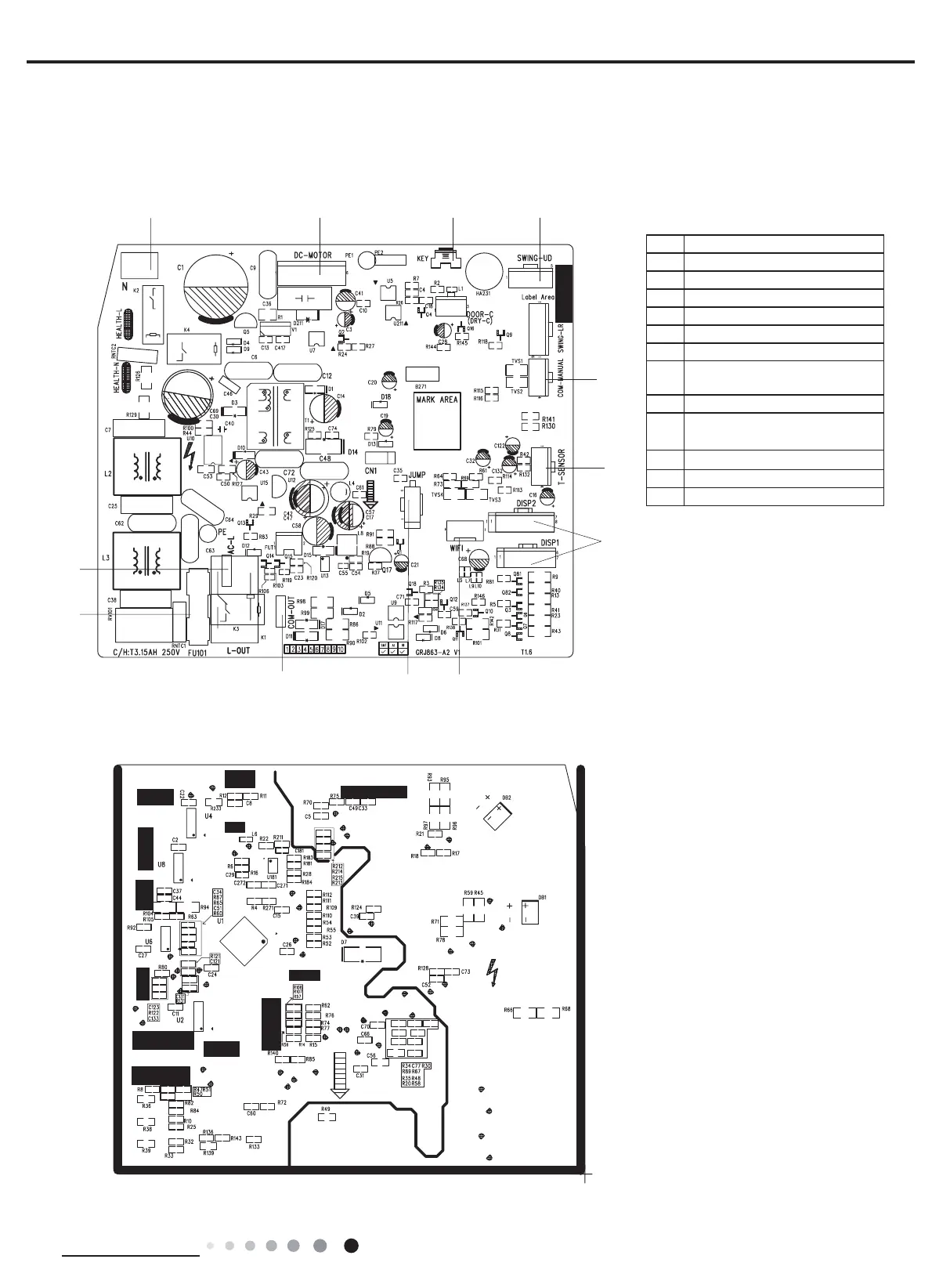

● Top view
● Bottom view
1234
6
10
7
8
95
11
12
No. Name
1 Neutral wire
2 Needle stand for indoor fan
3Auto button
4 up&down swing interface
5
6Interface of temperature sensor
7
Terminal for display board
connection
8Terminal of jumper cap
9
Interface of communication wire
for indoor unit and outdoor unit
10
11 Fuse
12 Live wire interface
Interface of wifi
Terminal of wired controlle
