Technical Information
Service Manual

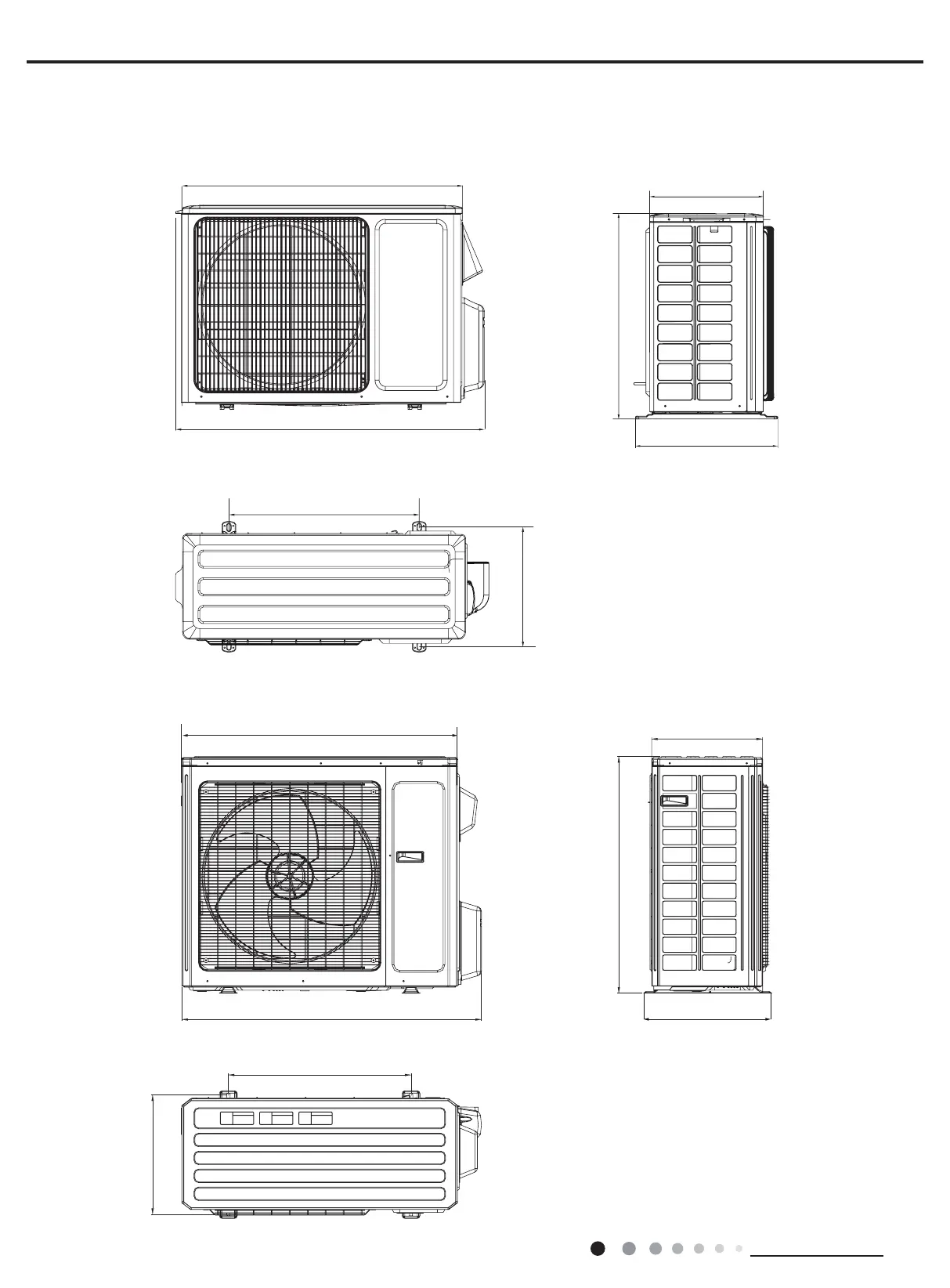

3.2 Outdoor Unit
Unit:inch
14 9/16
31 7
/
64
16 13/16
15 45/64
39 3/8
24 1/64
36
09/12K
18/24K
35 3/8
32 3/16
(21 59/64)/(19 19/64)
(13 15/16)/(13 55/64)
12
23 1/2
14 7/8
Unit:inch
