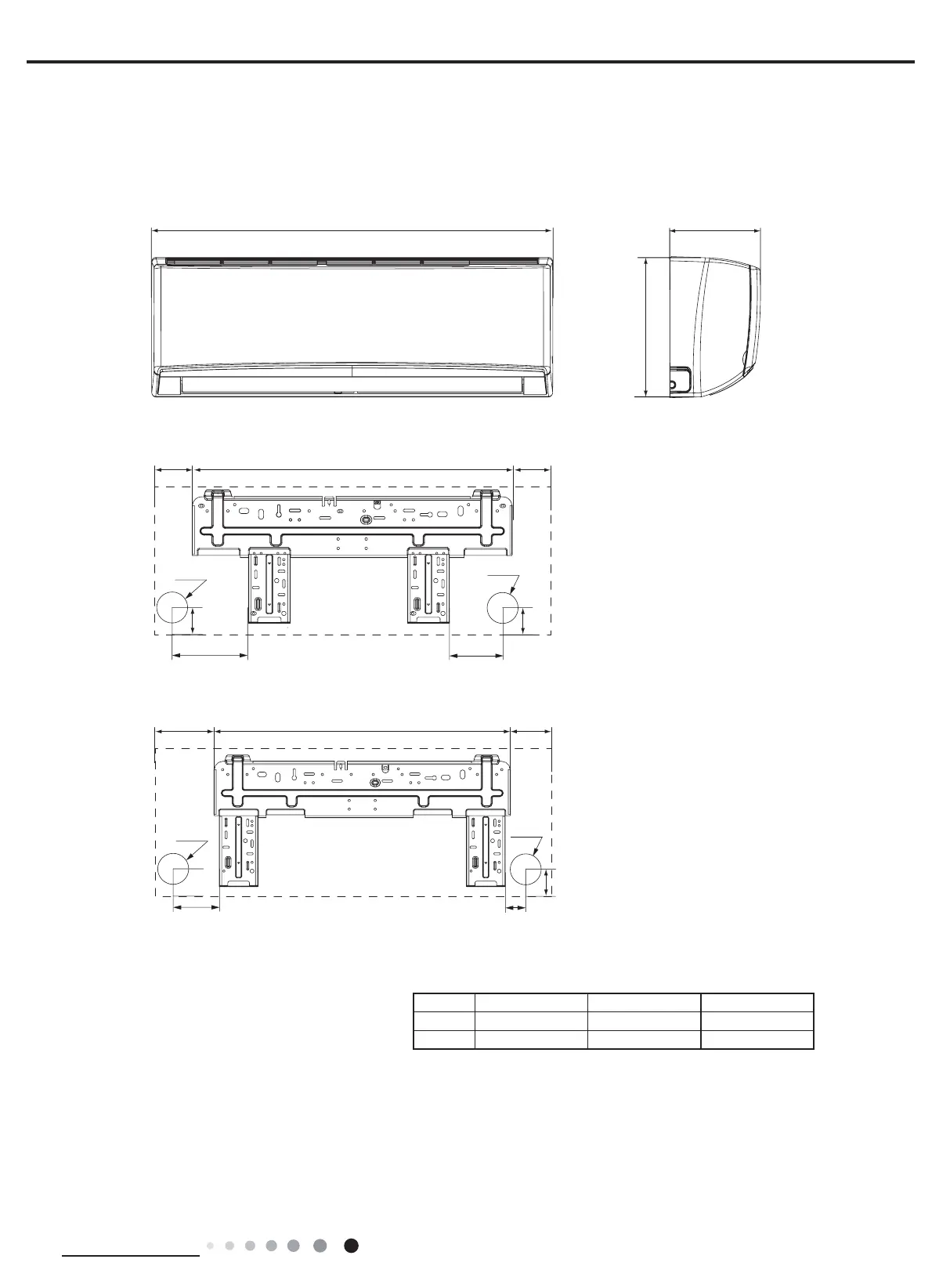

3. Outline Dimension Diagram
3.1 Indoor Unit
Unit:inch
Model W H D
09/12K 38 13/64 11 13/16 8 13/16
18/24K 42 7/16 12 51/64 9 11/16
