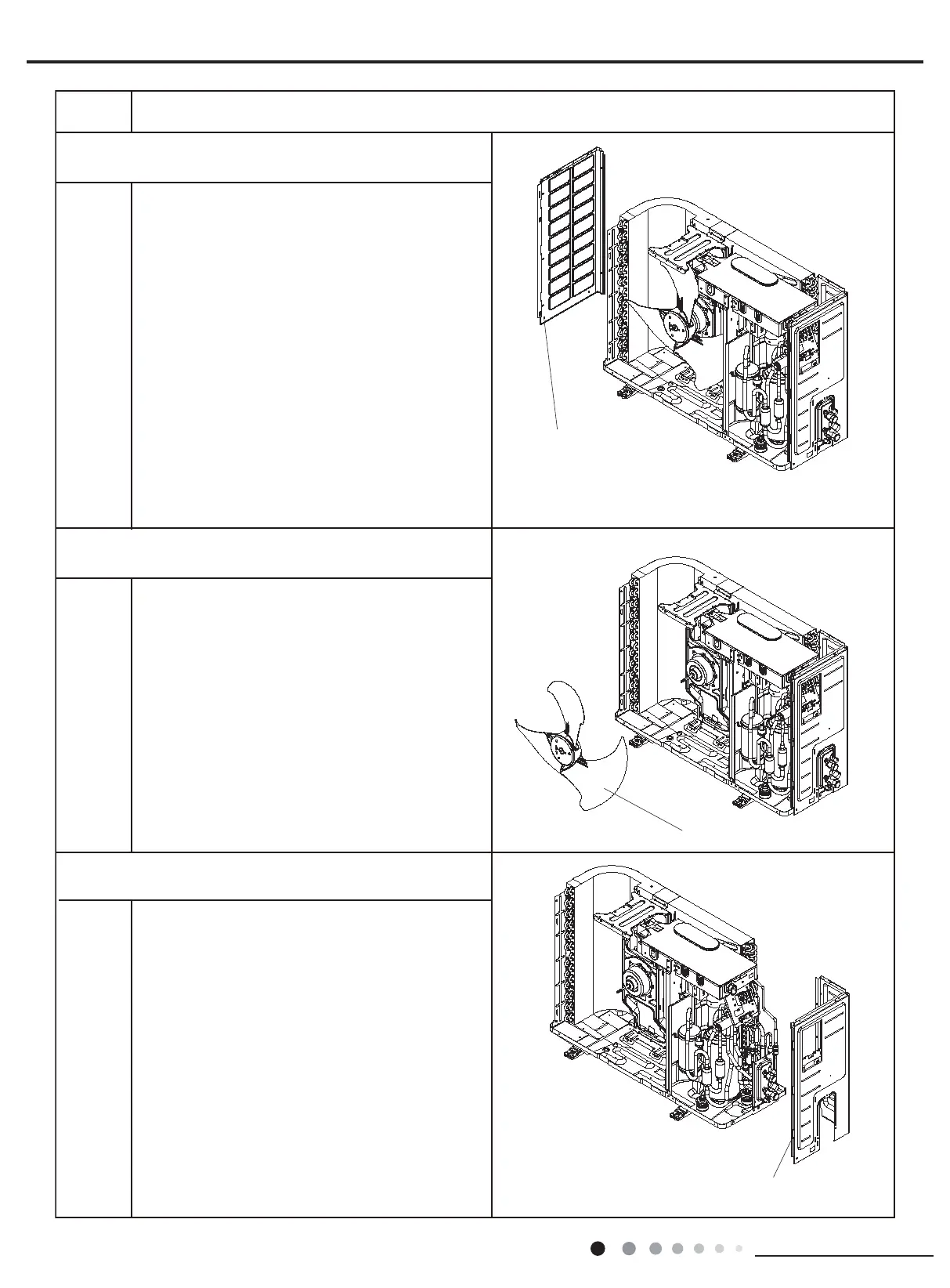

6. Remove right side plate
5. Remove cross fan blade
4. Remove left side plate
Remove the screws fixing left side plate and
condenser support boa rd, to remove the left side
plate.
Remove the screws fixing right side plate and valve
support, to remove the right side plate.
Remove the screw nut fixing cross fan blade, remove
the gasket and spring cushion, to remove the cross
fan blade.
left side plate
cross fan blade
right side plate
Steps Procedure
