Remove the scre ws thgir eht gnitcennoc
side plate with the chassis, the valve
support and the electric box, and then
yssa etalp edis thgir eht evome.

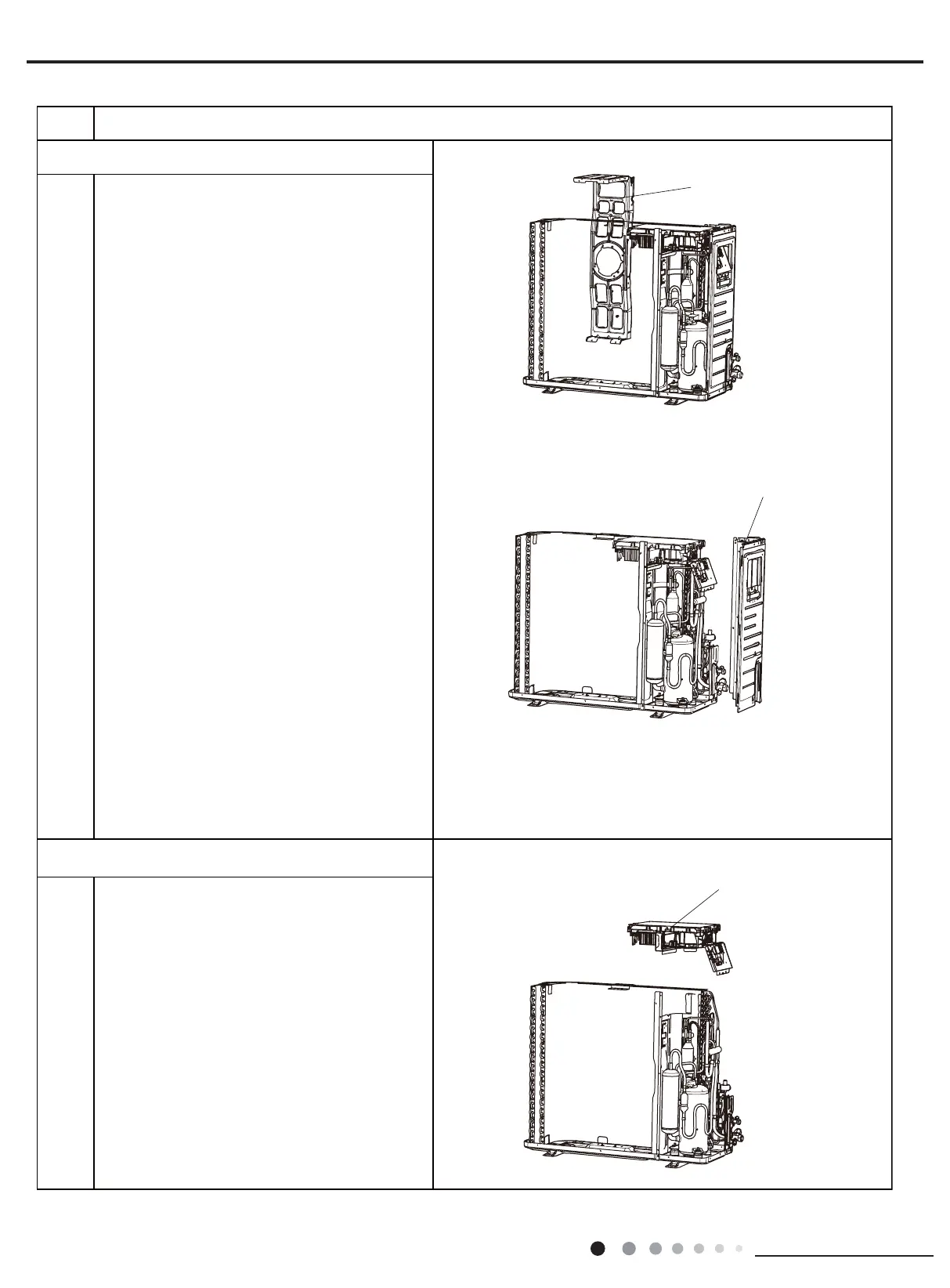

8.Remove electric box
motor support
right plate board
electric box
Remove the scre ws fixing the electric box
sub-assy; loosen the wi re bundle; pull out
the wi ring terminals and then pull the
electric box upwards to remove it.
7.Remove motor support
Twist off the tapping screws fixingthe motor
support, pull it upwardsand then remove the
motor support.
