Tosot TW24HQ3D6DI Service Manual

36
Installation and Maintenance
Service Manual
8. Installation

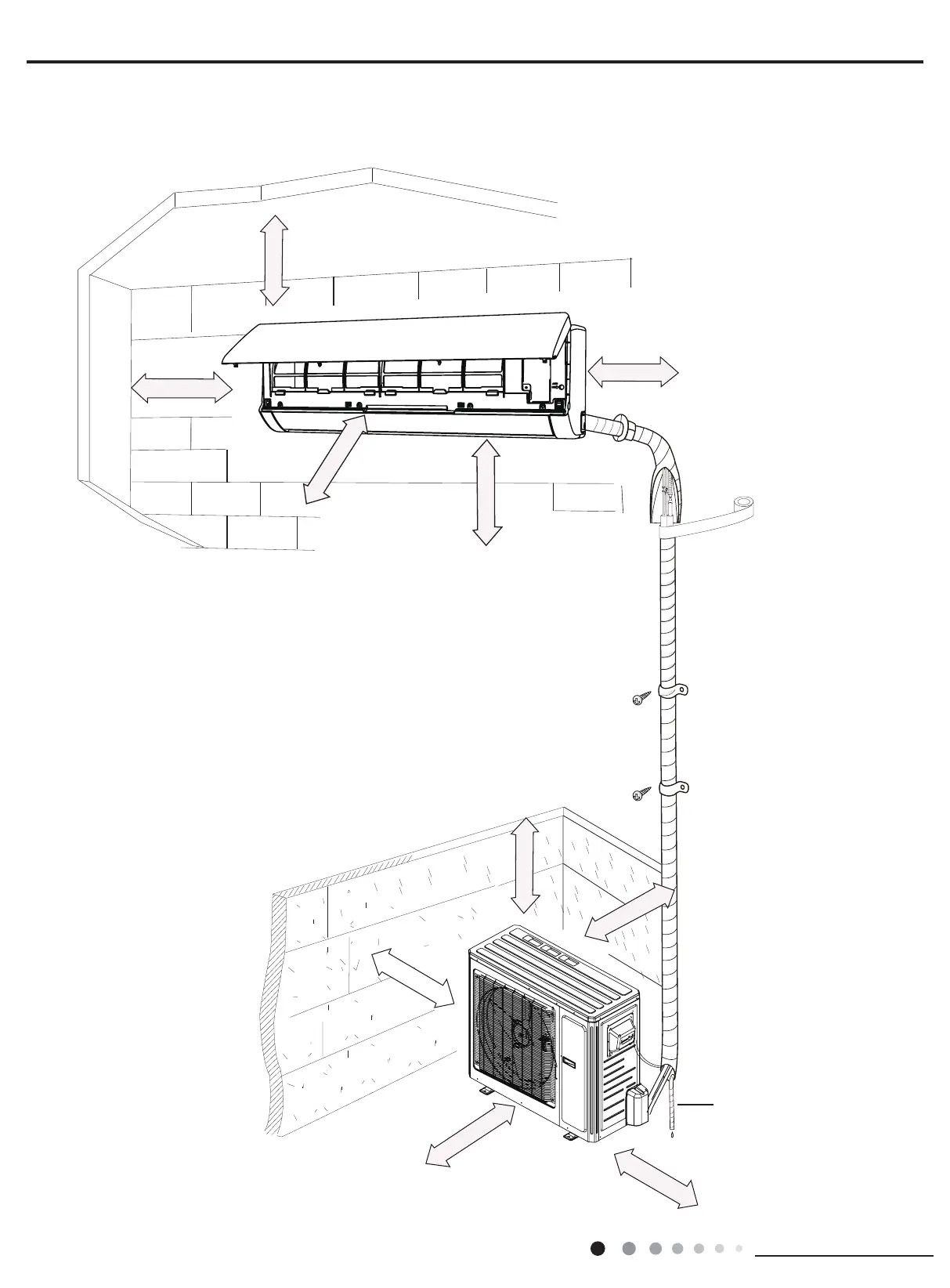

8.1 Installation Dimension Diagram
Space to the ceiling
Space to the wall
At least 5 7/8
At least 5 7/8
At least 5 7/8
At least 98 7/16
Space to the wall
Space to the obstruction
Space to the floor
Space to the obstruction
Drainage pipe
Space to the wall
Space to the obstructio
n
Space to the obstructio
Space to the obstruction
At least 118
At least 19 11/16
At least 78 5/8
At least 11 13/16
At least 11 13/16
At least 19 11/16
Unit:inch

Tosot TW24HQ3D6DI Specifications

General

Brand	Tosot
Model	TW24HQ3D6DI
Category	Air Conditioner
Language	English
