Tosot TW24HQ3D6DI - Outline Dimension Diagram; Indoor Unit

9
Technical Information
Service Manual
W
D
H
3 7/64
6
1 21/32
8 7/64 27 7 21/64
Φ2 3/4
Φ2 3/4
4277 13/64
5 1/2
7 1/2
1 1/2 1 1/2
Φ2 1/6
Φ2 1/6
09/12K unit
18/24K unit

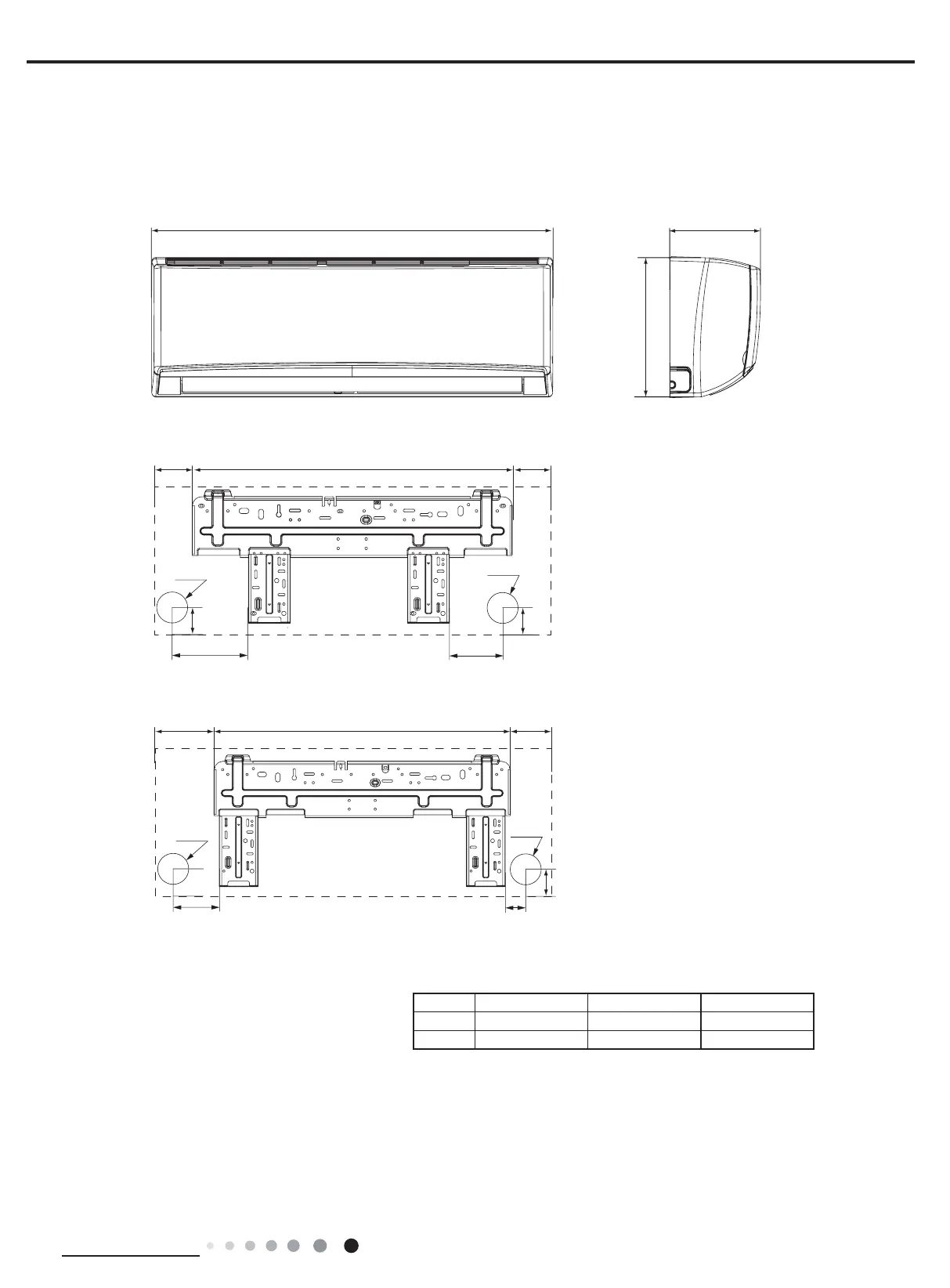

3. Outline Dimension Diagram
3.1 Indoor Unit
Unit:inch
Model W H D
09/12K 38 13/64 11 13/16 8 13/16
18/24K 42 7/16 12 51/64 9 11/16
