Total TBC1601 - Exploded View

TBC1601,TBC1601-4,TBC1601-6,TBC1601-8,
TBC1601-9,UTBC1601,TBC1601S

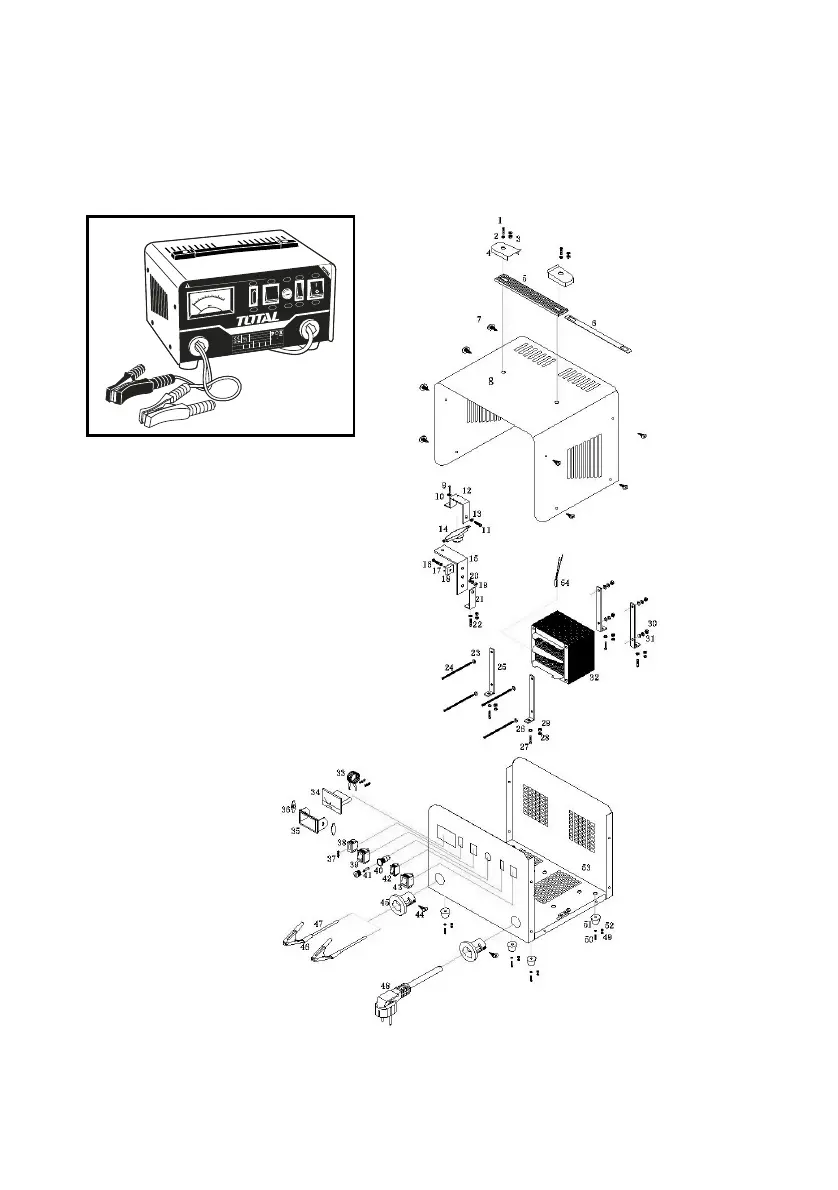

Exploded view
BATTERY CHARGER
0
2
4
6
8
10
A
TBC1601 EN60335-2-29
Voltage
220-240V~50/60Hz
Voltage
12/24V
Current
0.9A
Current
9/4A
Fuse
2A
RATED INPUT
RATED OUTPUT
1~ 1~
BATTERY MAX180Ah MIN28Ah
Disconnect the supply before making or breaking the connections to the battery.
WARNING: Explosive gases. Prevent flames and sparks. Provide adequate ventilation during charging.
I
BOOST
12A I
min
4A
Fuse
20A
MADE IN CHINA
IP20
No.45 Songbei Road,
Suzhou Industrial Park, China.
TOTAL TOOLS WORLD
totaltoolsworld
TOTAL TOOLS CO., PTE. LTD.
www.totalbusiness.com
-
DC.OUTPUT
AC-INPUT
+
12/24
VDC
220-240V~
50/60HZ
WARNING
Don't change voltage when power-on!
CHARGING CURRENT
20 A
24 V
BOOST
MIN
OFF
ON
T 2A
FUSE
FUSE
12 V
13
