3
ENGLISH
BEFORE INSTALLATION
Read these instructions thoroughly before beginning work.
Please leave instructions for customers. These instructions contain
maintenance and warranty information.
If necessary, remove the existing toilet and if new construction, purge the
supply line.

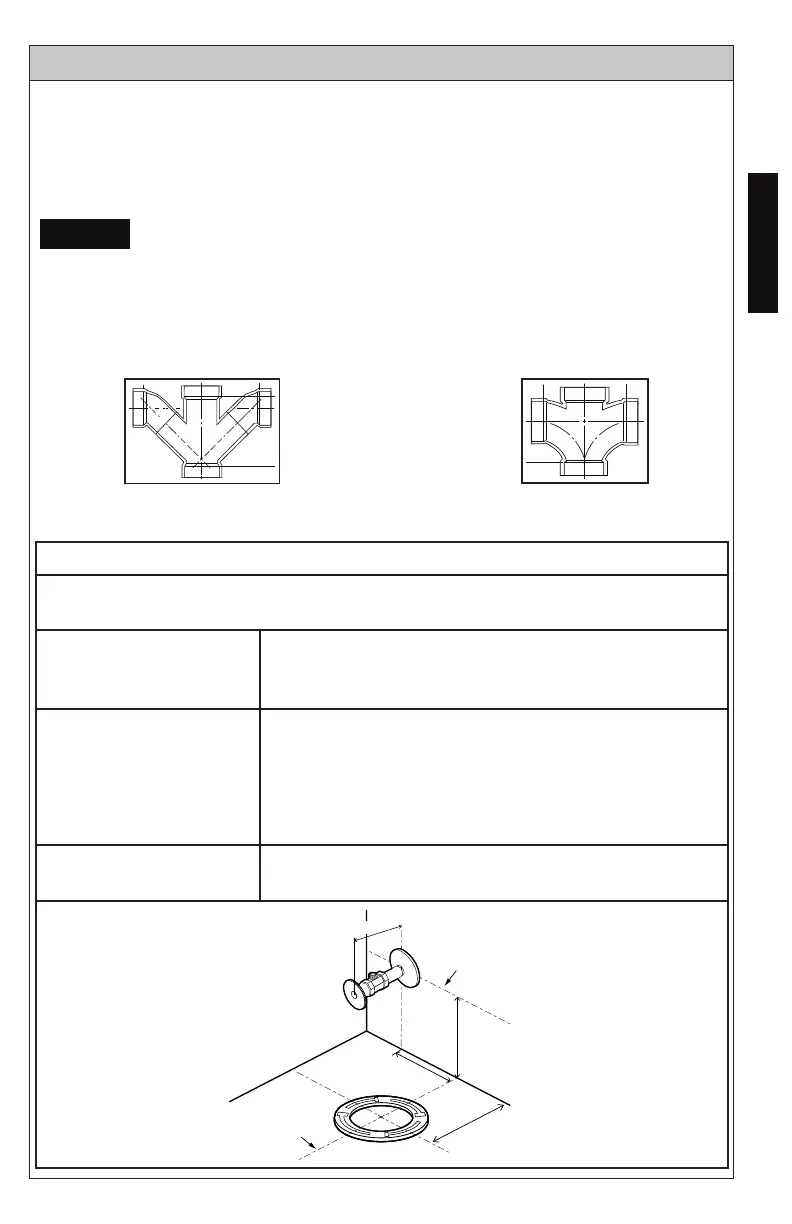

Due to the powerful performance of our Tornado, G-Max, E-Max and Power
Gravity ushing systems, they are not specied for back-to-back installations.
The only means of installing these toilets in a back-to-back situation is when
the toilet drain connections incorporate a WYE tting. Please contact your
builder or contractor prior to this installation.
Double Combination WYE / 1/8 Bend
YES
Double Sanitary Tee / Sanitary Cross
NO
NOTICE
Water supply shut-off valve installation recommendations
Follow these recommendations to ensure an optimal and trouble-free
installation with a neat and professional appearance.
Location
(From oor and left of
center of oor ange)
4-3/4” x 4-3/4” (120mm x 120mm)
Valve type
Angle stop type valve with supply connection
facing upward, inward, or downward
NOTE: Straight stop type valve, or valve with
supply connection on front of angle stop, is not
recommended
Maximum length
Angle stop must protrude less than 3-1/2” (90mm)
from wall
Centerline of
Stop valve
Finished wall
4¾”
(120mm)
Centerline of
Flange
4¾”
(120mm)
3½
” (90mm) MAX
“RI”
