INSTALLATION PROCEDURE
Left Right
Full
13. On the underside of the tank lid,
remove the 2 rods with lock nuts, and
screw them clockwise to the push
button assembly.
Place the lid on top of the tank, making
sure that the full ush push button is on
the left side (ill 10).
14. Adjust the length of the rods. If the
push button rods are too short (see
ill. 11a), the push buttons will not sit
properly and toilet may short ush.
If the push button rods are too long
(see ill. 11b), the push button may
continuously activate the ush valve.
Correct with the following steps:
1. Loosen the lock nuts counter-
clockwise.
2. Turn the rods clockwise to shorten,
counter-clockwise to lengthen (each
full turn is 1mm).
3. Place the lid on the tank to check the
adjustment.
4. When the adjustment is completed,
tighten the lock nut to secure.
15. Turn on the water supply at the angle
stop. Check ALL connections for leaks.
Fix as needed.
16. The toilet seat is installed with the seat
top mounting hardware. Refer to the
seat installation instruction.

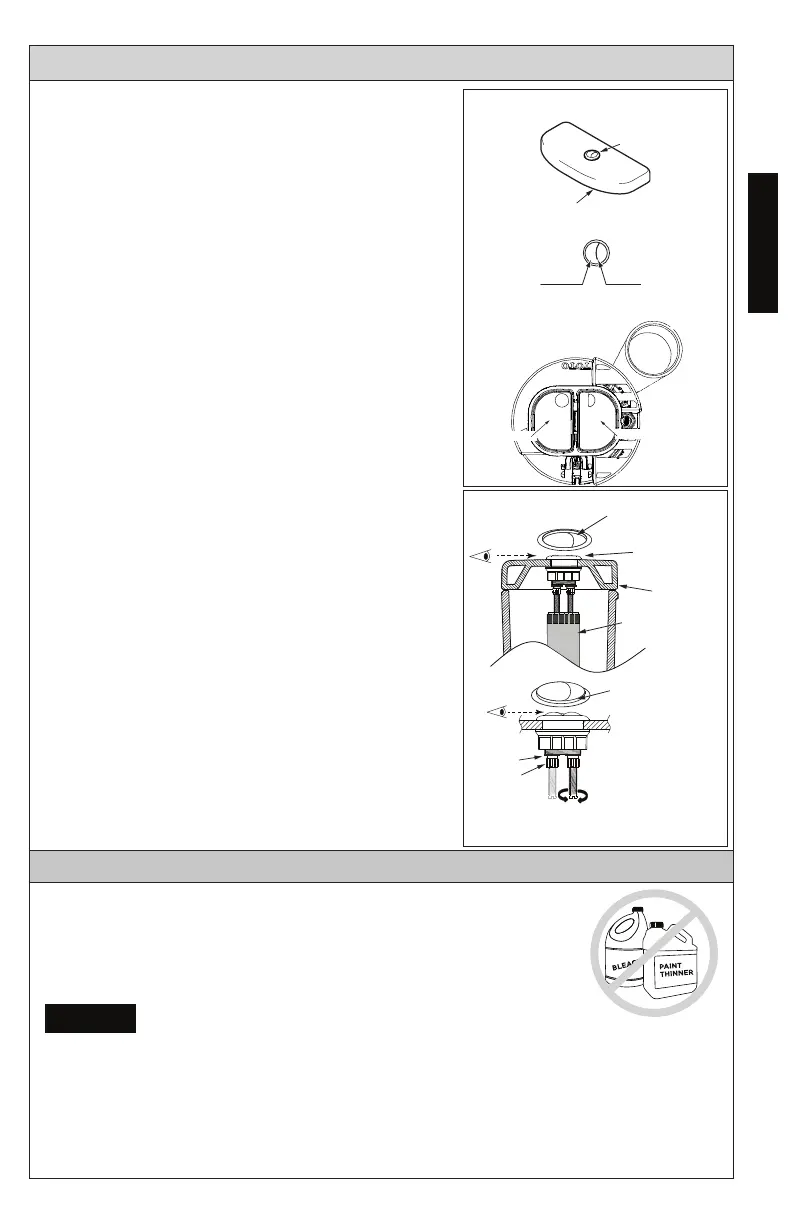

ill. 10
Full ush
Partial ush
CARE AND CLEANING
DO NOT USE IN-TANK BOWL CLEANERS.
The use of high concentration of chlorine or chlorine-related products can
seriously damage ttings in the tank. This damage can cause leakage and
property damage. TOTO shall not be responsible or liable for any tank tting
failure or damage caused by the use of in-tank bowl cleaners.
NOTICE
Use a detergent or non-abrasive toilet cleaner and a soft bristled
plastic brush to clean your toilet. To remove hard water stains, use
vinegar or lime dissolving cleaner and a non-scratch scour pad
made for porcelain. Allow a little contact time to allow the cleaner
to dissolve the buildup.
Clip
Clockwise/
Push button
assembly
If the rod(s) is too
short, the buttons
are lowered
Flush valve
ill. 11a
ill. 11b
If the rod(s) is too
long, the buttons
are pushed up
and water may
continue to ow
to toilet bowl.
Tank Lid
