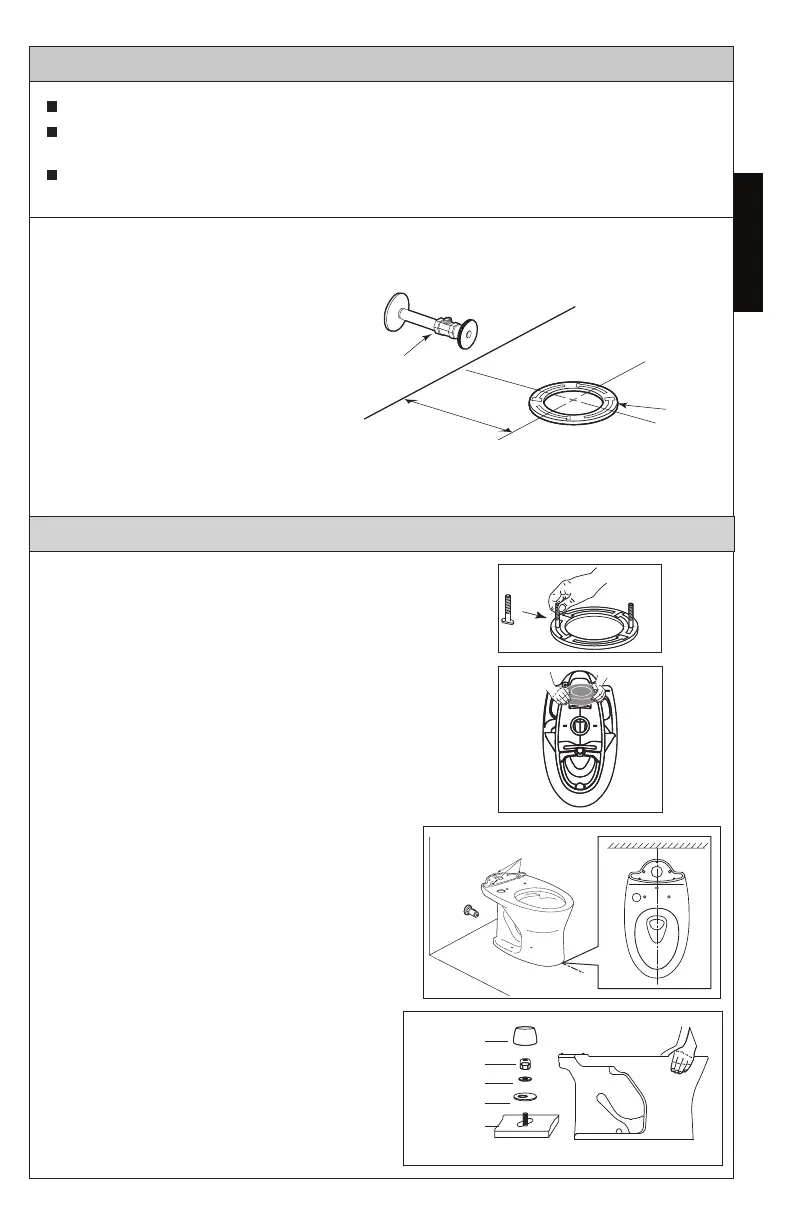

BEFORE INSTALLATION
Read these instructions thoroughly before beginning work.
Please leave instructions for customers. These instruction contain maintenance
and warranty information.
If necessary, remove the existing toilet.
For your new TOTO toilet to fit correctly, the rough-in, the distance between the
finished wall to the center of the
closet flange, must be at least
12 inches for most models.
NOTE: Models with 10”
rough-in have model numbers
ending with “.10”, for example
CT746CUFG.10.
Recommended water supply valve location:
5-7/8” (from oor) x 4-3/8” (from center).
Water
Supply
Valve
Finished Wall
"RI"
C/L
Closet
Flange
INSTALLATION PROCEDURE
Ill. 1
Bolt Cap
Nut *
Washer *
Base Cap
Bowl Base
Three Points of Contact
* Not Supplied
Ill. 2C
Ill. 2B
1) Clean any debris out of the closet flange
and then install new mounting bolts
(not supplied) into the slots of the closet
flange (see Illustration 1). The head of the
bolt should be inserted into the slot with
its threads facing upward.
2) Carefully turn the toilet upside down
onto some padding. Firmly press a new
bowl wax ring (not supplied) onto the
circular recess around the toilet bowl’s
horn (see Ill. 2A). Turn the toilet upright
and gently lower into position over
the closet flange. With toilet properly
aligned, press rmly on both sides
of toilet rim to set the bowl wax ring.
(see Illustration 2B)
CAUTION: Do not move the bowl after
the bowl wax ring is set. Thread the base
caps, washers and nuts and tighten evenly
until bowl is snug to closet flange. Install
the bolt caps (see Illustration 2C).
CAUTION: Do not over-tighten the nuts
as damage to the china bowl may result.
Ill. 2A
Points of Contact
(3)
