NOTE: Before installing the product, be sure to thoroughly flush the supply pipes of dirt and
debris. Shut off the water supply at the stop valves after flushing.
Install the Controller
4
ENGLISH

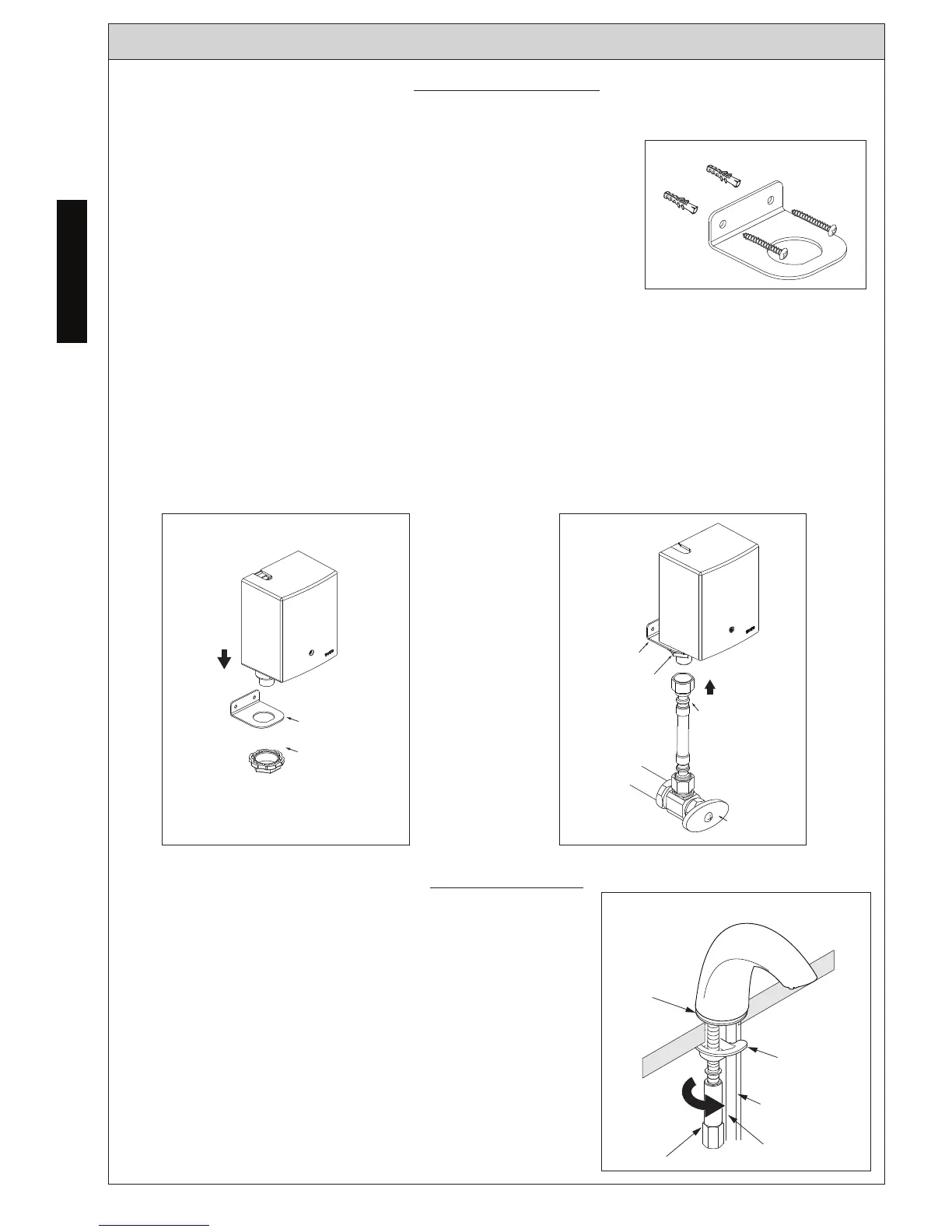

INSTALLATION PROCEDURE
To Install Deck-Mounted Models (ill. 4):
Secure the spout to the countertop with the included
bracket and hexagonal nut. Make sure that the spout
is mounted with the tip directed towards the center
of the basin.
Install the Spout
SPOUT
ill. 4
NOTE:
If using a thermostatic valve (sold separately), please refer to its installation manual for
details.
ill. 2
ill. 3
Nut
Spout connecting
hose
Sensor cord
Gasket
Mounting Bracket
Mount Bracket
Nut
ill.1
Supply Hose
Mount Bracket
Nut
Stop valve
1. See the rough-in dimension page to determine the proper
location for the controller.
2. Remove the screws on the front of the controller cover and pull
to remove.
3. Mount the bracket on the wall. If necessary, use wall anchors
(see ill. 1).
4. From the top, place controller into the hole in the bracket.
From below the bracket, fasten the large nut to secure the controller (see ill. 2).
IMPORTANT!
Be sure to install controller in the correct orientation as shown. Otherwise, product will
not function properly.
5. Connect the water supply line to the inlet adapter (see ill. 3).
To Next Page
