11
Lock Bolt
Magazine
Assembly
■ Do not spray to a naked flame or
any incandescent material.
■ Do not smoke when handling
fuel cell.
■ Keep stem of fuel cell away from
face or skin. Expanding gases
cause low temperatures. Do not
contact with gases.
■ Do not inhale.
■ Keep out of reach of children.
CAUTION
■ If the gas leaks from the metering valve or the
gas cartridge after attached the metering valve,
replace with the new metering valve.
■ Do not attempt to reuse the metering valve.
Replace with the new metering valve.

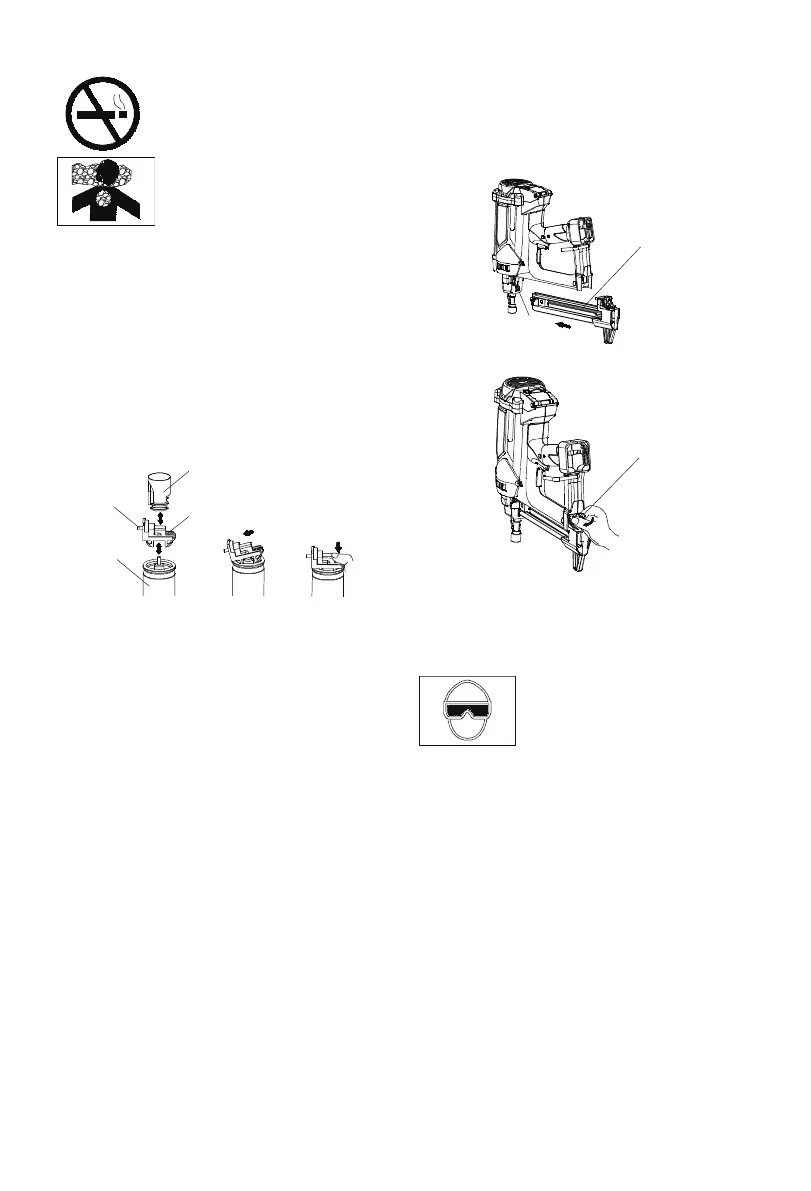

To attach the metering valve to a fuel cell.
(1) Separate the metering valve and the cap from
the gas cartridge.
(2) Stem downward, put the metering valve inclined
forward to the bowl cover.
(3) Press downward on the rear of the metering valve
until it seals, no gas leakage.
Check the metering valve:
Press the metering valve stem on fuel cell two
or three times against a stationary object and
release.
If gas is not dispersed, fuel cell is empty. Replace it. .
Observe Safety Regulations.
The fuel cell is now ready to insert into the Nailer.
PREPARING THE BATTERY
Read section titled “SAFETY, IMPORTANT
SAFETY INSTRUCTIONS FOR BATTERY
CHARGER”.
You must charge the battery before use.
The charging method of battery is shown as “Charging
Method” chapter.
MAGAZINE ASSEMBLY INSTALL
(1) REMOVE FUEL CELL AND BATTERY FROM
NAILER.
(2) Fit on the magazine assembly.Insert magazine
into the Nail Seat.
(3) Tighten the lock bolt.
WARNING
Never use Nailer after taking off the magazine.
TESTING THE NAILER
DANGER
Operators and others in work area
MUST wear safety glasses with
side shields which conforms to
ANSI Z87.1 specifications.
WARNING
Never use Nailer unless push lever is operating
properly.
The machine employs a preventive mechanism
for unloaded operation.
The machine enters a state where the push lever
cannot be pushed up. This takes place when the
magazine is not loaded with nails or when the
remaining number of nails becomes less than 2 or 3.
CAUTION
Use caution not to throw the push lever tip onto
any object.
Cap
Metering Valve
Stem
Fuel Cell
Nail Seat
To Next Page
