15

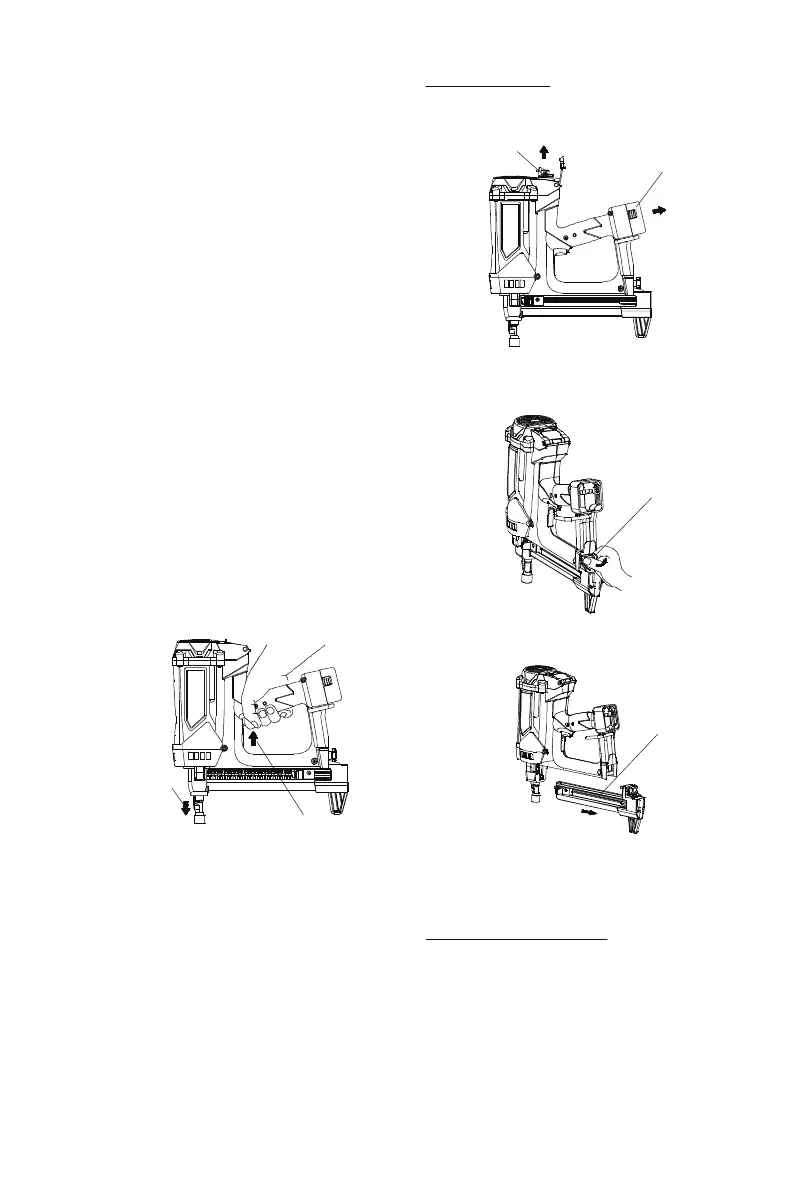

Nail Jam Remove
In fire process meet the nail jam malfuction,remove
it according the following steps:
(1) Remove the fuel cell and the battery;
(2) Remove all nails;
(3) Loose the lock bolt;
(4) Take off the magazine assembly, remove the
jam nails;
(5) Fit on the magazine assembly, tighten the lock
bolt, reinsert the fuel cell and battery pack,
then can continue firing.
Pushing arm jacket using
WARNING
Before fitting and remove the pushing arm jacket,
must make sure the finger not press the trigger
and make sure the fuel cell and battery pack have
been removed.
Battery Pack
Fu el Cell
Lock Bolt
Magazine
Assembly
downward nailer 2~3 times, pulling the trigger ,
the nails will be driven. Or use after put the
nailer and fuel cell indoor 30 minutes.
This Nailer is equipped with a FULL SEQUENTIAL
ACTUATION MECHANISM.
Explanation of FULL SEQUENTIAL ACTUATION
MECHANISM nailing operation:
First, press the push lever against the workpiece;
Next, press downward nailer;
Then, pull the trigger to drive a nail.
The machine employs a preventive mechanism
for unloaded operation.
The machine enters a state where the push lever
cannot be pushed up in place. This takes place
when the magazine is not loaded with nails or when
the remaining number of nails becomes less than 2
or 3.
CAUTION
Use caution not to press the push lever tip against
to the workpiece when the push lever cannot be
pushed up in place.
METHODS OF OPERATION
This Nailer is equipped with the push lever and does
not operate unless the push lever is depressed upward
top dead center position.
It is intermittent operation (Trigger fire) only.
(1) Position the nail outlet on the workpiece with finger
off the trigger.
(2) Depress the push lever firmly until it is completely
depressed.
(3) Pull and squeeze the trigger to drive a nail.
(4) Remove finger from the trigger.
To continue nailing in a separate location, move
the nailer along the workpiece, repeating above
steps (1) -(4) as required.
Trigger
Push lever
against the
workpiece firmly.
To Next Page
