17
■ When not in use, the Nailer, fuel cell and battery
should be stored in a warm and dry place.
■ Keep it out of reach of children.
4. WARNING LABEL
Change the WARNING LABEL if missing or damaged.
A new WARNING LABEL is available from a TOUA
authorized service center.
5. Maintenance chart
ACTION WHY HOW
Clean magazine and Prevent a jam. Daily cleaning.
feeder mechanism.
Keep push lever Promote operator Daily cleaning.
working properly. safety and efficient
Nailer operation.
Make sue all screw Avoid the nailer been Periodical
are tightening. damaged, make inspection.
sure the safety.
6. Operator troubleshooting
See page 18.
CAUTION
Repair, modification and inspection of TOUA
Power Tools must be carried out together with the
replacement parts list by an TOUA Authorized
Service Center.
In the operation and maintenance of power tools,
the safety regulations and standards prescribed
in each country must be observed.
MODIFICATIONS:
TOUA Power Tools are constantly being improved
and modified to incorporate the latest technological
advancements.
Accordingly, some parts (i.e. code numbers and/or
design) may be changed without prior notice.
SERVICE AND REPAIRS
WARNING
■ Only service personnel trained by TOUA,
distributor or employer shall repair the Nailer.
■ Use only parts supplied or recommended by
TOUA for repair.
All quality Nailers will eventually require servicing
or replacement of parts because of wear from normal
use.
NOTE
Specifications are subject to change without any
obligation on the part of TOUA.

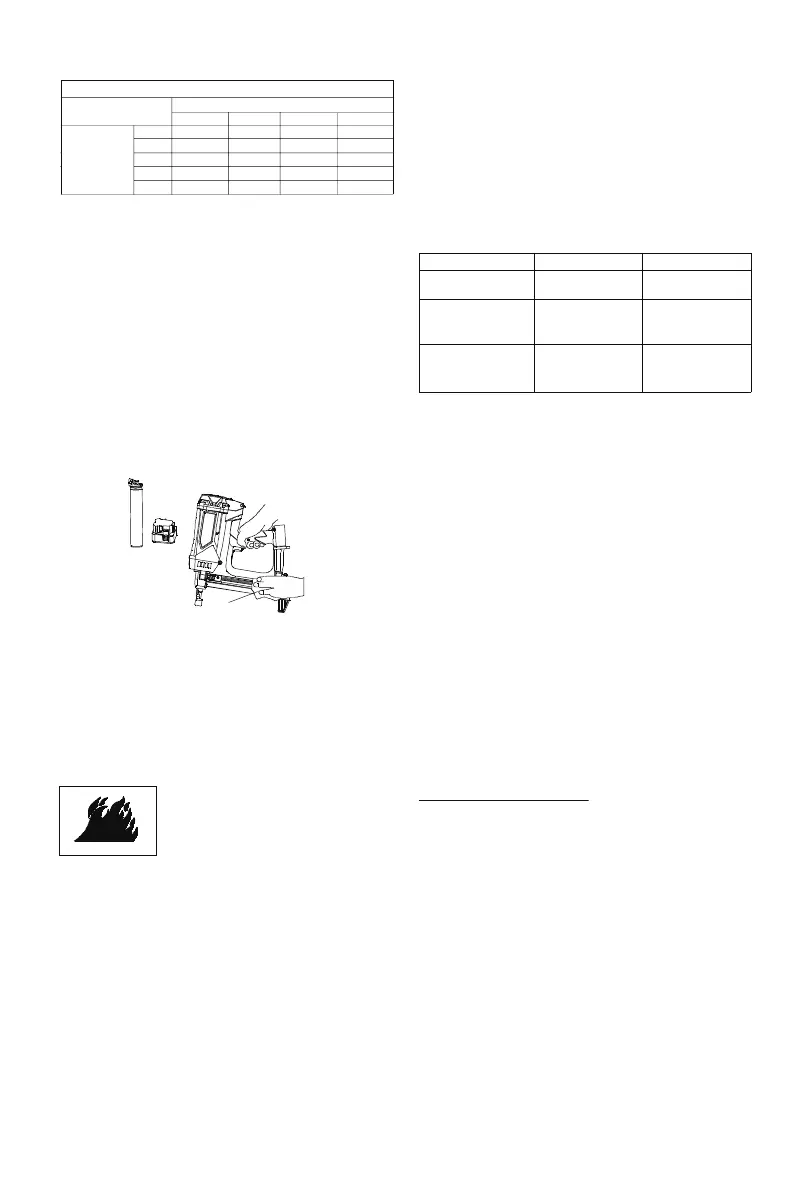

Cleaning time intervals form
Operation Environment
very dirty dirty common clean
1000 1 Week 2 Week 1Month 2Month
2000 1 Week 2 Week 1Month 1.5Month
4000 1 Week 2 Week 3 Week 3 Week
6000 1 Week 1 Week 2 Week 2 Week
8000 1 Week 1 Week 2 Week 2 Week
Note After completion of each cleaning must drip
the lubricating oil (504.6.03.001.01) to the
nailer the place which shown in attachment
Gas Concrete Nailer Cleaning Guide .
If you have any questions about of the cleaning
operating procedures and methods, please contact
with TOUA authorized service center.
2. Inspecting the magazine
①
REMOVE FUEL CELL and BATTERY.
② Clean the magazine.
Remove paper chips or wooden chips which
may have accumulated in the magazine.
③ Lubricate it with TOUA designated lubricant oil.
CAUTION
Check that the nail feeder slides smoothly by
pulling it with finger.
If not smooth, nails can be driven at an irregular
angle and hurt someone.
3. Storing
DANGER
■ Store Nailer properly with nails,
fuel cell and battery removed .
■ The fuel cell is an aerosol dispensers
with flammable contents.
■ When not in use, the Nailer, fuel cell and battery
should be stored in tool case and in a dry place
and below temperature 122°F (50°C).
■ Store indoors at temperature 41°F (5°C) ～77°F
（25°C）.
■ When not in use for an extended period, apply a
thin coat of the lubricant to the steel parts to avoid
rust.
■ Do not store the Nailer
、fuel cell and battery in
a cold weather environment.
Firing quantity
per week
Cloth
