Wall Mounted Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
14
Wall Mounted Installation – cont.

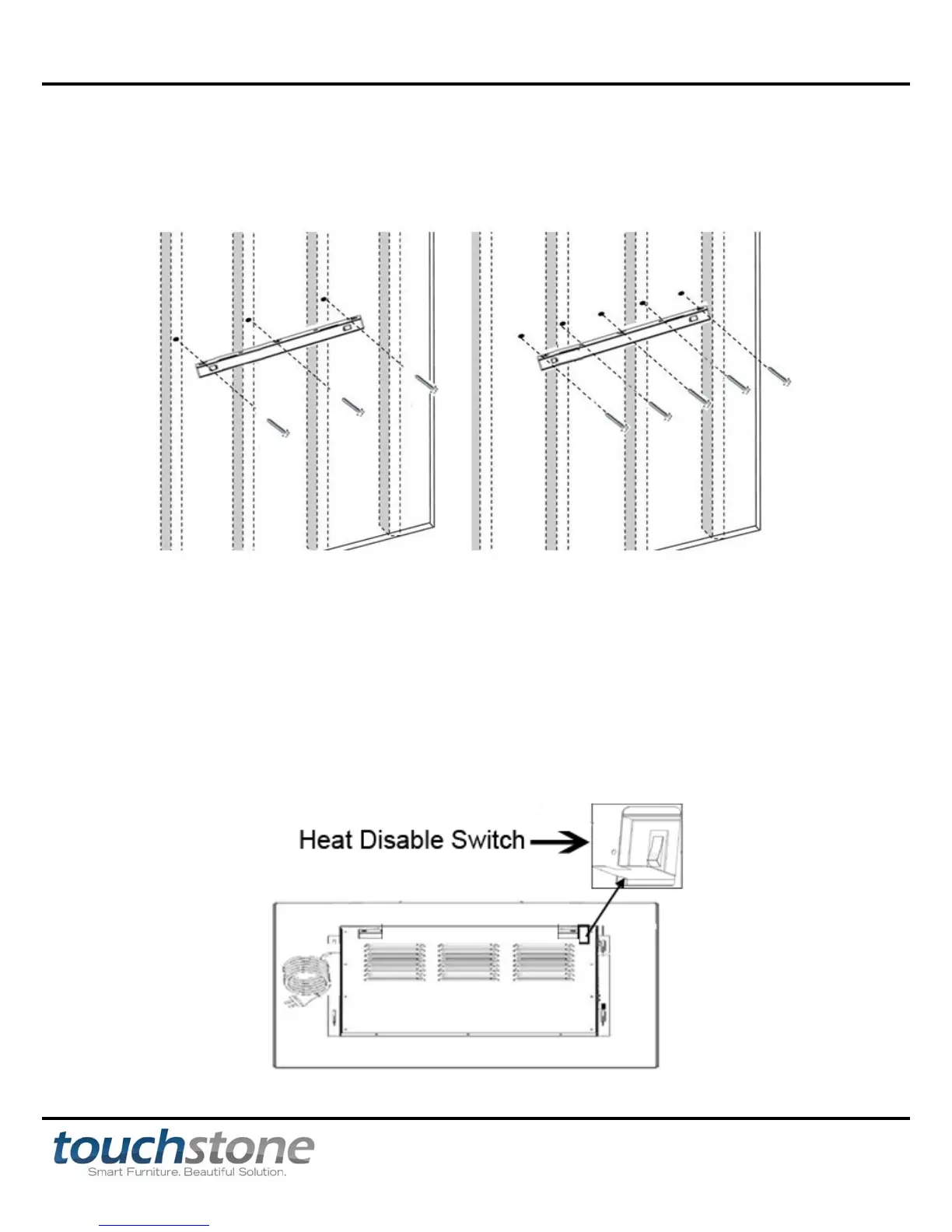

7. Align the holes in the wall bracket with the pilot holes and drywall anchors. Thread wood screws into the holes
in the wall bracket and then directly into the wall studs and/or drywall anchors. Make sure the bracket is level and
tighten all screws securely.
8. Once the bracket is secured to the wall, the fireplace may now be hung on the bracket.
Heat Disable Switch
Touchstone Wall Mounted Electric Fireplaces include a heat disable switch for disabling and enabling the
fireplace’s heating element. The heat disable switch is located on the back of the unit under the trap door (shown
below). This switch must be in the ON position for the heater to operate. For installations where the heating
element is not needed, flip the switch to the OFF (0) position.
