Hardware Overview and Installation
Example 2: Bose 301 Speakers
This example illustrates wiring of Bose 301 speakers (maximum 4 per channel) for a total
impedance load of 6 ohms.

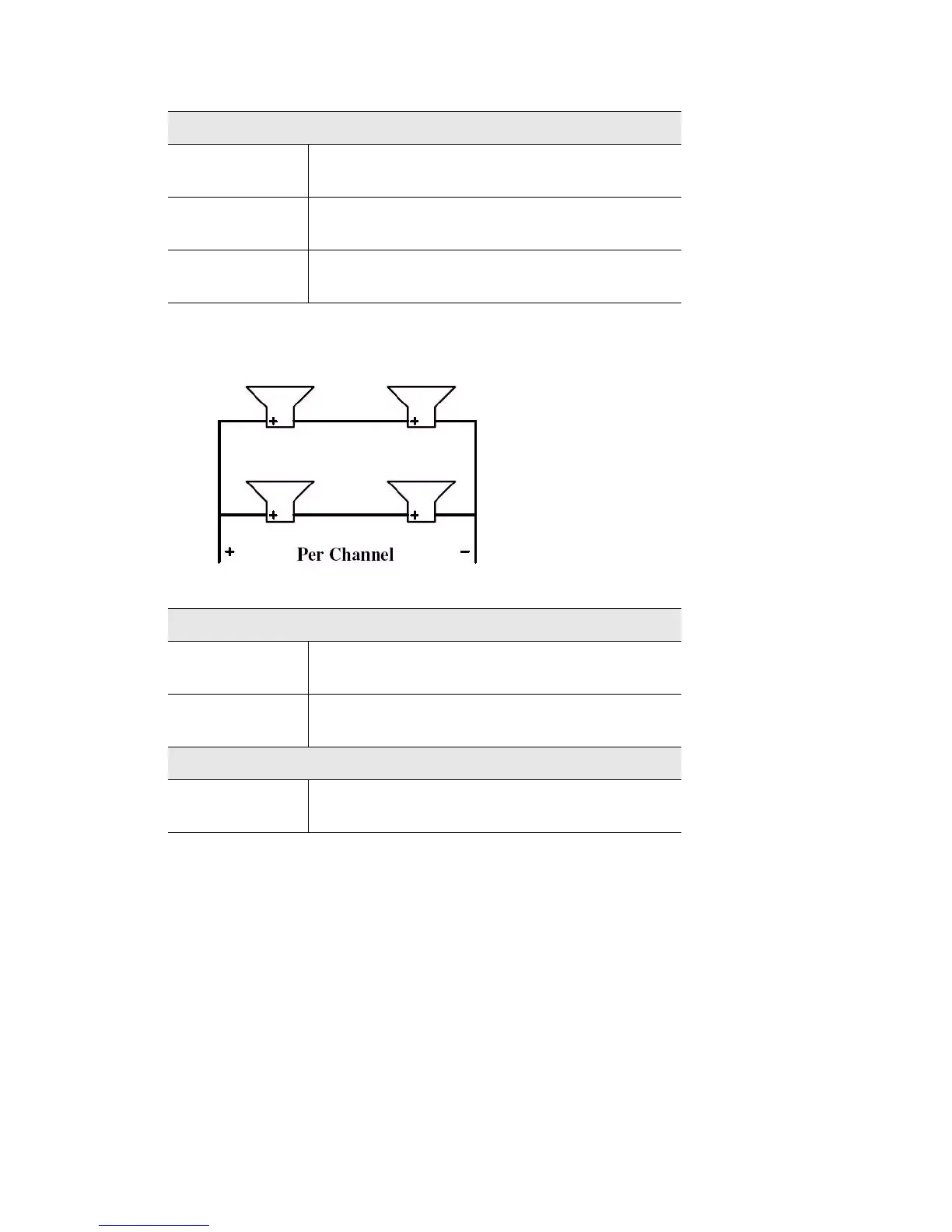

Bose 301 Speakers Wiring
Row (series) impedance specifications
Row 1 2 speakers in series: 6.0 ohms + 6.0
ohms for a total
of 12 ohms per row.
Row 2
2 speakers in series: 6.0 ohms + 6.0 ohms for a total
of 12 ohms per row.
Total impedance specifications
Connecting Rows
1 and 2
in Parallel
6.0 ohms total for this combination.
Power over 6 ohms = 100W/channel.
Connecting Rows
1 and 2 in Parallel
4.0 ohms total for this combination.
Power over 4 ohms = 150W/channel.
Row (series) impedance specifications
Row 1 2 speakers in series: 4.0 ohms + 4.0 ohms for a total
of 8 ohms per row.
Row 2 2 speakers in series: 4.0 ohms + 4.0 ohms for a total
of 8 ohms per row.
