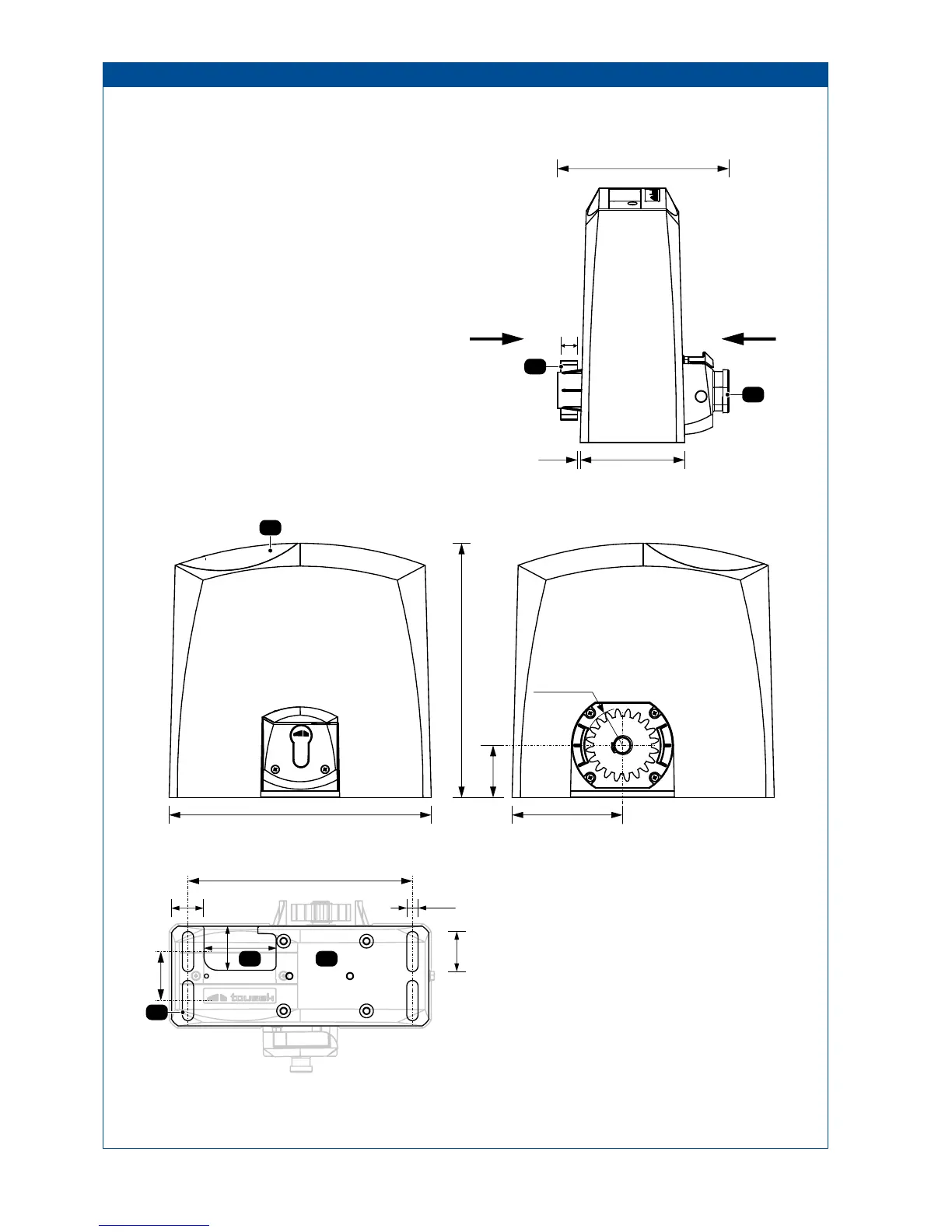

tousek PULL T8 - 10 Dimensioned Drawing

- 30 - tousek / E_PULL-T5-T8-T10_49002305 / 19. 12. 2013
1
2
3
5
A B
View B: View A:
306,5
272
133
63
316
48,5
206,5
22
1263,4
40
85
52
13,5
4
Gear wheel:
PULL T5,-T8: Z20M4, r44
PULL T10: Z16M4, r36
58,5
• Dimensions in mm
(1) lockable emergency release (euro standard cylinder)
(2) gear wheel
(3) cable entrance
(4) ground plate
(4a) slotted holes (4x) for mounting on foundation
(5) display for programming
10. Dimensioned drawing Sliding gate operator PULL T5, -T8, -T10
We reserve the right to change dimensions and
technical specifications without prior notice.
4a
