- 4 - tousek / EN_ST-61_07 / 25. 03. 2020
FE
–
ESC ENTER
+
Textdisplay
T
D
F1
ZM
K
B
E
VE
Control board features
1. General information Swing gate control unit ST 61
• suitable for swing gates with electromechanical operators
SWING X and SPIN 250, 230V (1 or 2 gate leafs) with inte-
grated sensor.
• leaf delay adjustable at opening and closing
• automatic closure with adjustable pause time
• travel time of both operators will be adjusted automatically
• separately adjustable softstop time of both operators
(no loss of force even with reduced speed).
• Safety system ARS (autom. reversal system)
• operating mode: impulse, automatic or dead man mode
• ntegrated evaluation of safety sensing edges
• self-monitoring of photocells
• self-diagnosis display
•
optional module: “electric lock /magnetic clamp” or “motor lock”
•
slots for optional and status display module and radio receiver
Components of the control board
(K) terminal blocks
(D) display connector
(with programming buttons +, -, ESC, ENTER)
or
TC/TSI-
connection (optional
„tousek-connect“/
„tousek service Interface“)
(E) System connector for optional module motor lock or
electric lock / magnet (
page 20)
(VE) 230V a.c. for electric lock/magnet module
(B) system connector
(FE) slot for optional radio receiver (
page 23)
(ZM)
slot for optional module „status display“(
page
19)
(T) transformer
(F1) fuse 6,3A F

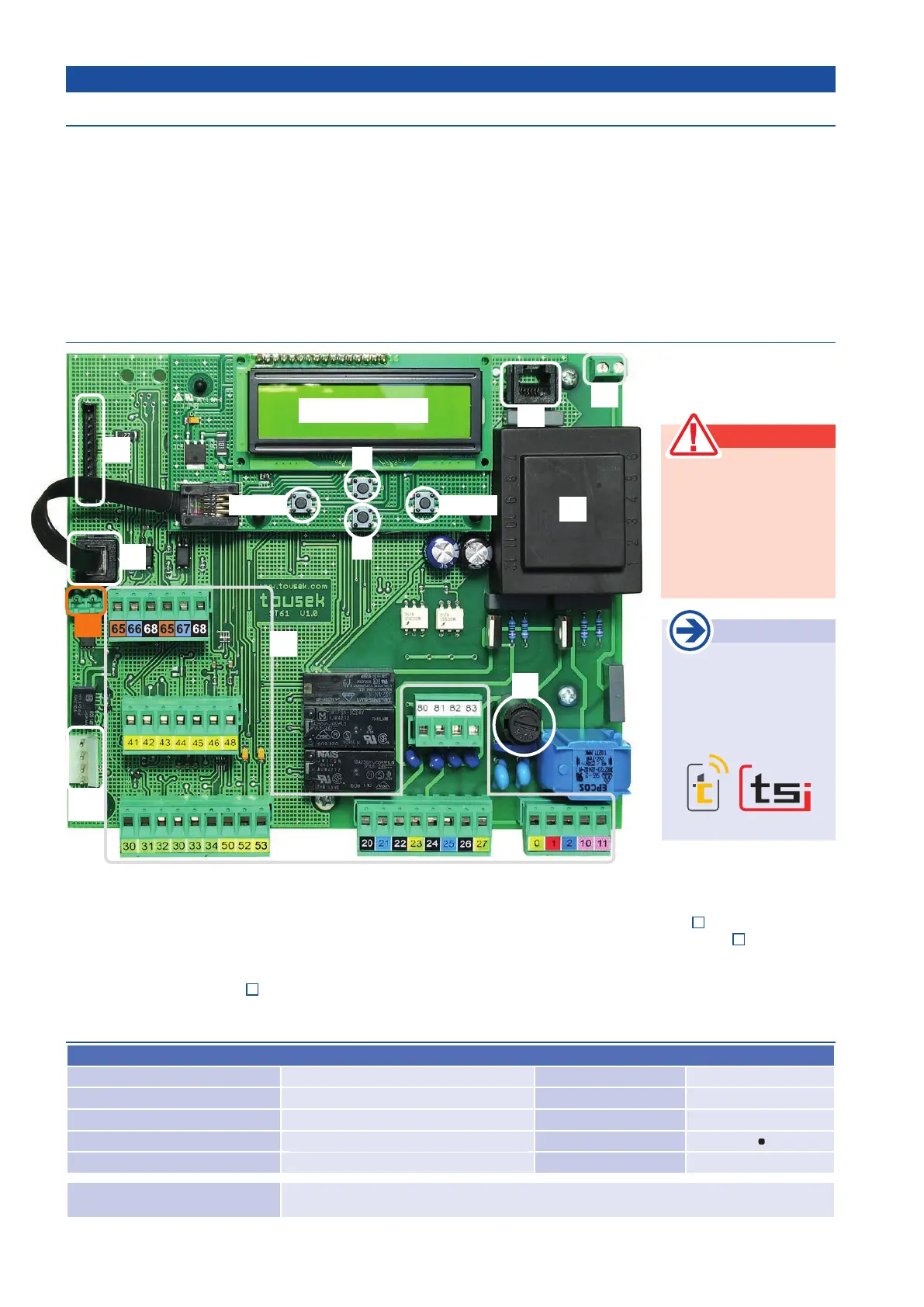

Control board overview
Technical data
Swing gate control unit ST 61
power supply 230V a.c., +/-10% 50Hz magnetic clamp output optional 24Vd.c.
motor output
2 x 500W, 230V a.c. ambient temperature - 20°C bis + 70°C
ashing light output
230V AC, 40W protection class IP54
electric lock output
optional 12Vd.c. oder 24V d.c. speed sensor
photocell output 24V a.c. art.number 12111670
optional components
pluggable radio receiver • additional module for courtyard/control lamp • Additional module for
gate status evaluation
• E-lock/magnet module • radio transmission system TX 310
Attention
During connection,
adjustment and mainte-
nance works please take
care, that the electronic
circuit board won´t be
damaged by moisture
(rain).
Important
The optional „tousek-
connect“ or the „tousek-
service interface“ must
be connected with
socket (D)! Not with (E) !
