I
I
in
the
into
id
I

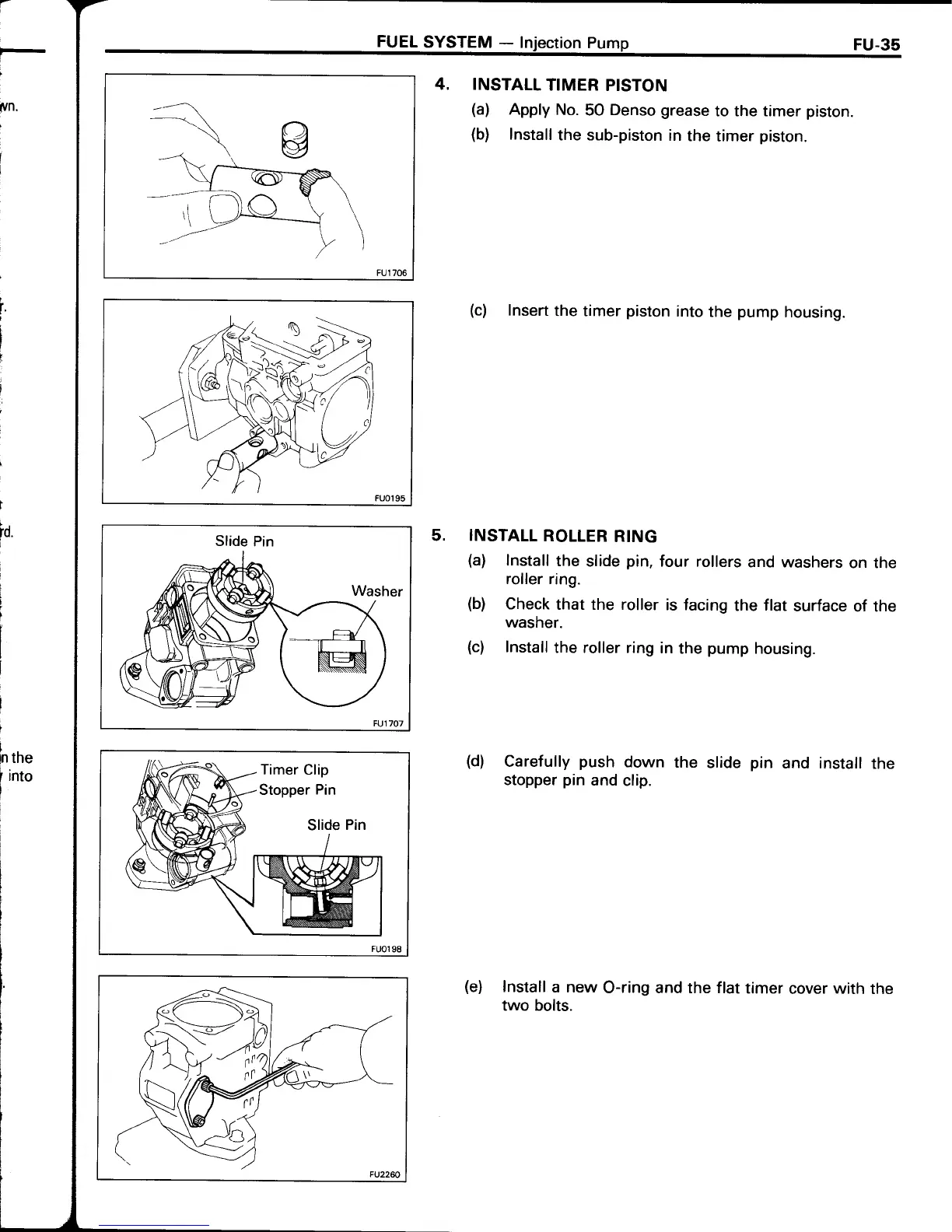

4, INSTALL
TIMER
PISTON
(a)
Apply No.
50
Denso
grease
to the timer
piston.
(b)
lnstall
the sub-piston
in
the
timer
piston.
(c)
lnsert
the timer
piston
into
the
pump
housing.
5. INSTALL
ROLLER
RING
(a)
lnstall
the
slide
pin,
four
rollers
and washers
on the
roller ring.
(b)
Check
that the roller
is facing
the
flat
surface
of the
washer.
(c)
lnstall
the roller ring
in
the
pump
housing.
(d)
Carefully
push
down
stopper
pin
and
clip.
the
slide
pin
and install
the
(e)
lnstall
a new
O-ring and the flat
timer
cover with
the
two bolts.
Slide
Pin
Timer
Clip
Stopper
Pin
Slide
Pin
FUEL
SYSTEM
_
I
>\-
,\>
7,.
