CHARGING
SYSTEM
-
Alternator
cH-16
I
i
L

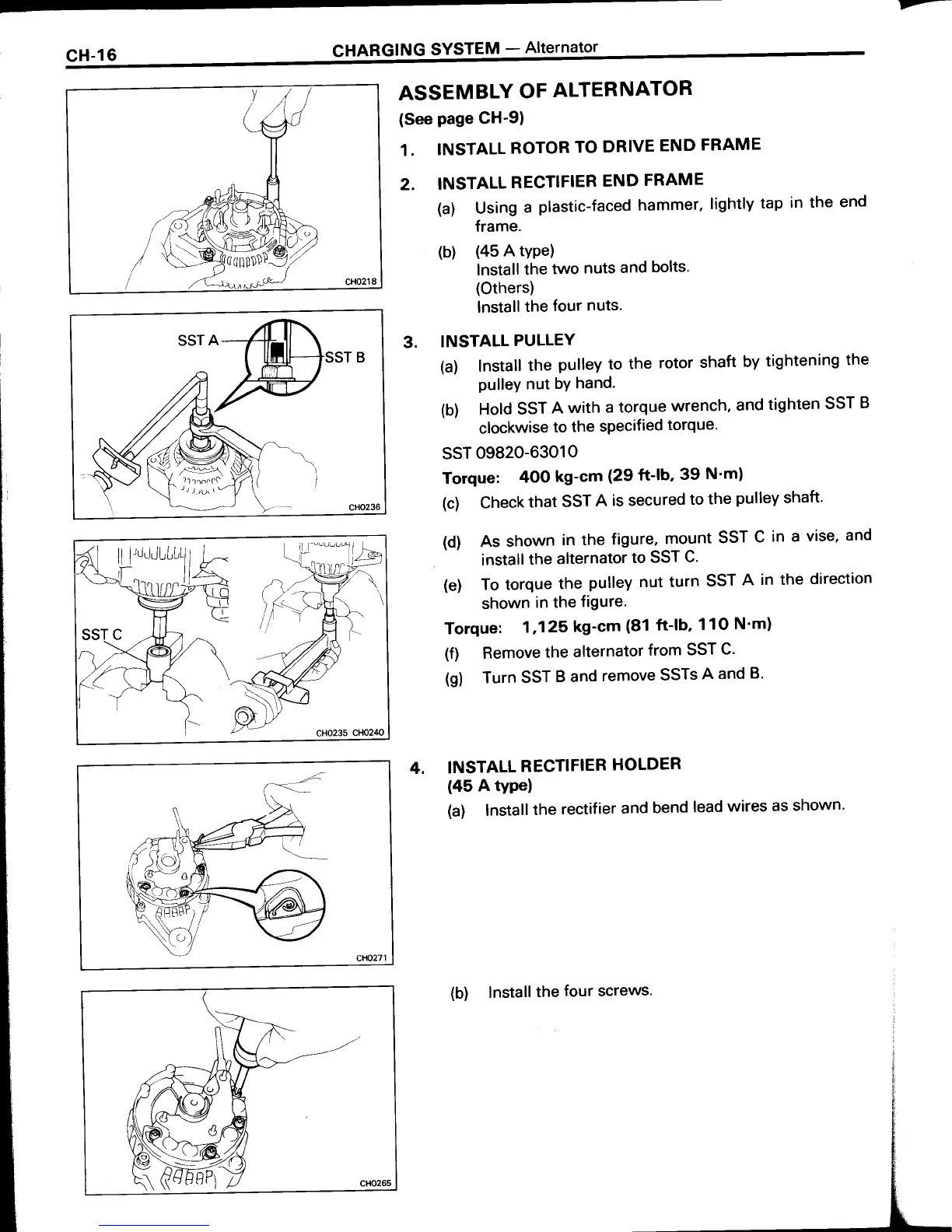

ASSEMBLY
OF
ALTERNATOR
(See
page
CH-g)
1.
INSTALL
ROTOR
TO
DRIVE
END
FRAME
2.
INSTALL
RECTIFIER
END
FRAME
(a)
Using
a
plastic-faced
hammer,
lightly
tap
in
the
end
frame.
(b)
(45
A tYPe)
lnstall
the
two
nuts
and
bolts'
(Others)
lnstall
the
four
nuts.
3.
INSTALL
PULLEY
(a)lnstallthepulleytotherotorshaftbytighteningthe
pulleY
nut
bY
hand.
(b)
Hold
SST
A
with
a torque
wrench,
and
tighten
SST
B
clockwise
to
the
specified
torque'
ssr
09820-63010
Torque:
4OO
kg-cm
(29
ft-lb,
39
N'm)
(c)
Check
that
SST
A
is secured
to
the
pulley
shaft'
(d)
As
shown
in
the
figure,
mount
SST
C
in a
vise'
and
install
the
alternator
to
SST
C'
(e)
To torque
the
pulley nut turn
SST
A
in the
direction
shown
in the
figure.
Torque:
1]25
kg-cm
(81
ft-lb,
1
1O
N'm)
(f)
Remove
the
alternator
from
SST
C'
(g)
Turn
SST
B and
remove
SSTs
A and
B'
4.
INSTALL
RECTIFIER
HOLDER
(45
A tYPe)
(a)
lnstall
the
rectifier
and
bend
lead
wires
as
shown'
(b)
lnstallthe
four screws.
li
l,rLiJtLLq I
1t-"-^li
