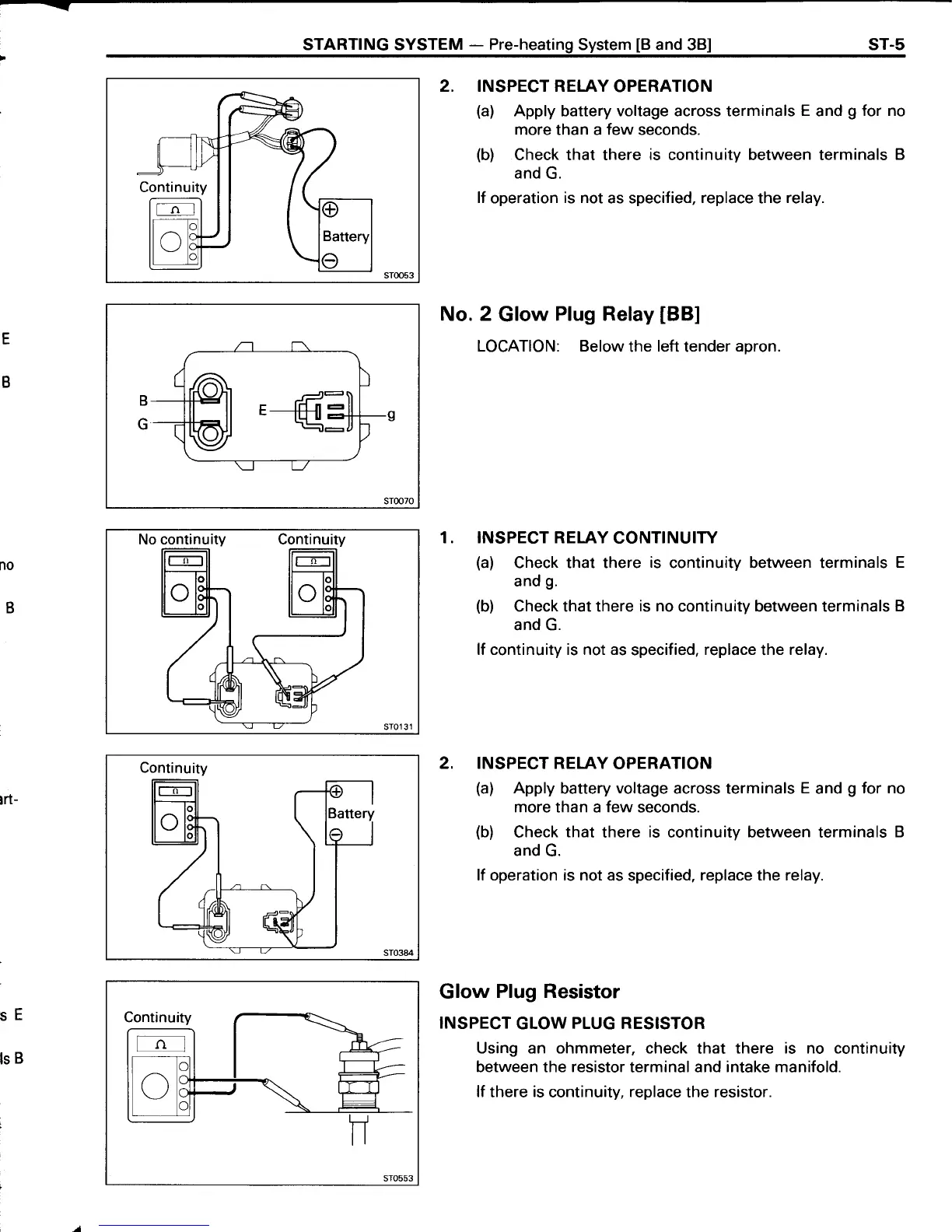

STARTING SYSTEM
-
Pre-heating
System
[B
and 38] sT-5
E
B
2. INSPECT RELAY
OPERATION
(a)
Apply battery voltage across terminals
E
and
g
for no
more than a few seconds.
(b)
Check that there
is
continuity between terminals
B
and
G.
lf
operation
is not
as specified,
replace
the
relay.
No. 2
Glow
Plug Relay
tBBl
LOCATION: Below
the
left
tender
apron.
1. INSPECT RELAY
CONTINUITY
(a)
Check that there
is
continuity between terminals
E
and
g.
(b)
Check that there
is no
continuity between terminals
B
and G.
lf continuity is not as
specified,
replace
the
relay.
2, INSPECT RELAY
OPERATION
(a)
Apply
battery
voltage
across terminals
E
and
g
for no
more
than a
few
seconds.
(b)
Check
that
there
is
continuity between terminals
B
and
G.
lf operation is not as
specified,
replace the relay.
Glow
Plug Resistor
INSPECT
GLOW
PLUG RESISTOR
Using an ohmmeter, check
that
there is no continuity
between the resistor
terminal and
intake manifold.
lf
there
is
continuity,
replace
the
resistor.
no
B
No continuity
sTol 31
trt-
sE
lsB
,/-
