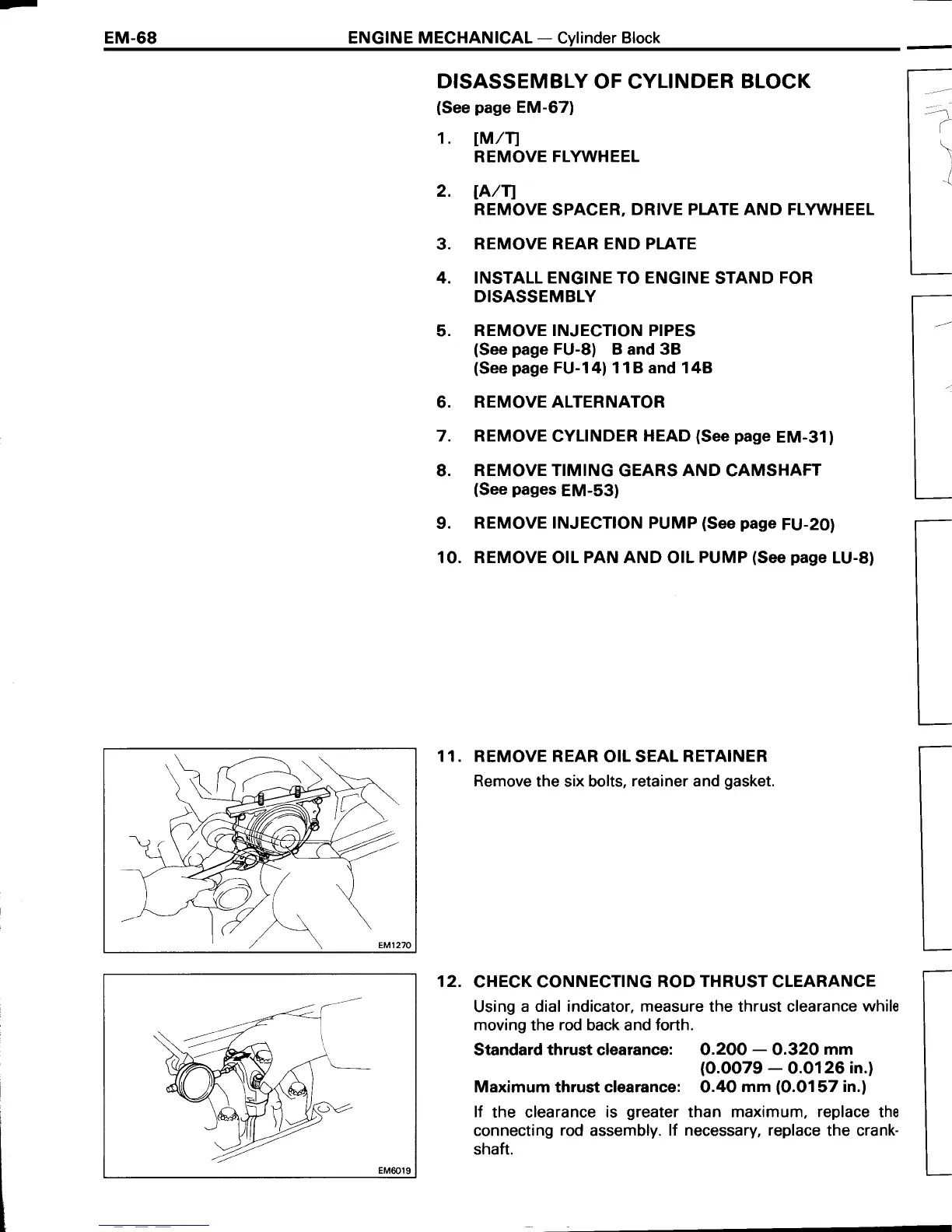

EM-68 ENGINE MECHANICAL
-
Cylinder Block
DISASSEMBLY
OF CYLINDER
BLOCK
(See
page
EM-67)
1.
lM/Tl
REMOVE
FLYWHEEL
2.
IA/TI
REMOVE
SPACER,
DRIVE PLATE AND FLYWHEEL
3.
REMOVE REAR END PLATE
4. INSTALL ENGINE TO ENGINE
STAND
FOR
DISASSEMBLY
REMOVE INJECTION PIPES
(See page
FU-8) B
and
38
(See page
FU-l4) 1 1 B
and
148
REMOVE ALTERNATOR
REMOVE
CYLINDER
HEAD
(See page
EM-31)
REMOVE TIMING
GEARS
AND
CAMSHAFT
(See pages
EM-53)
REMOVE INJECTION PUMP
(See page
FU-2O)
REMOVE
OIL
PAN AND
OIL
PUMP
(See pase
LU-8)
5.
6.
7.
8.
9.
10.
11. REMOVE REAR
OIL SEAL
RETAINER
Remove
the six bolts,
retainer
and
gasket.
12.
CHECK
CONNECTING
ROD THRUST
CLEARANCE
Using
a dial indicator, measure the thrust clearance
while
moving
the
rod
back and
forth.
Standard
thrust
clearance:
O.2OO
-
O.320
mm
(O.OO79
-
0.O126
in.)
Maximum thrust clearance: O.4O
mm
(O.O157
in.)
lf
the clearance
is
greater
than maximum, replace the
connecting rod assembly. lf
necessary, replace
the crank-
shaft.
