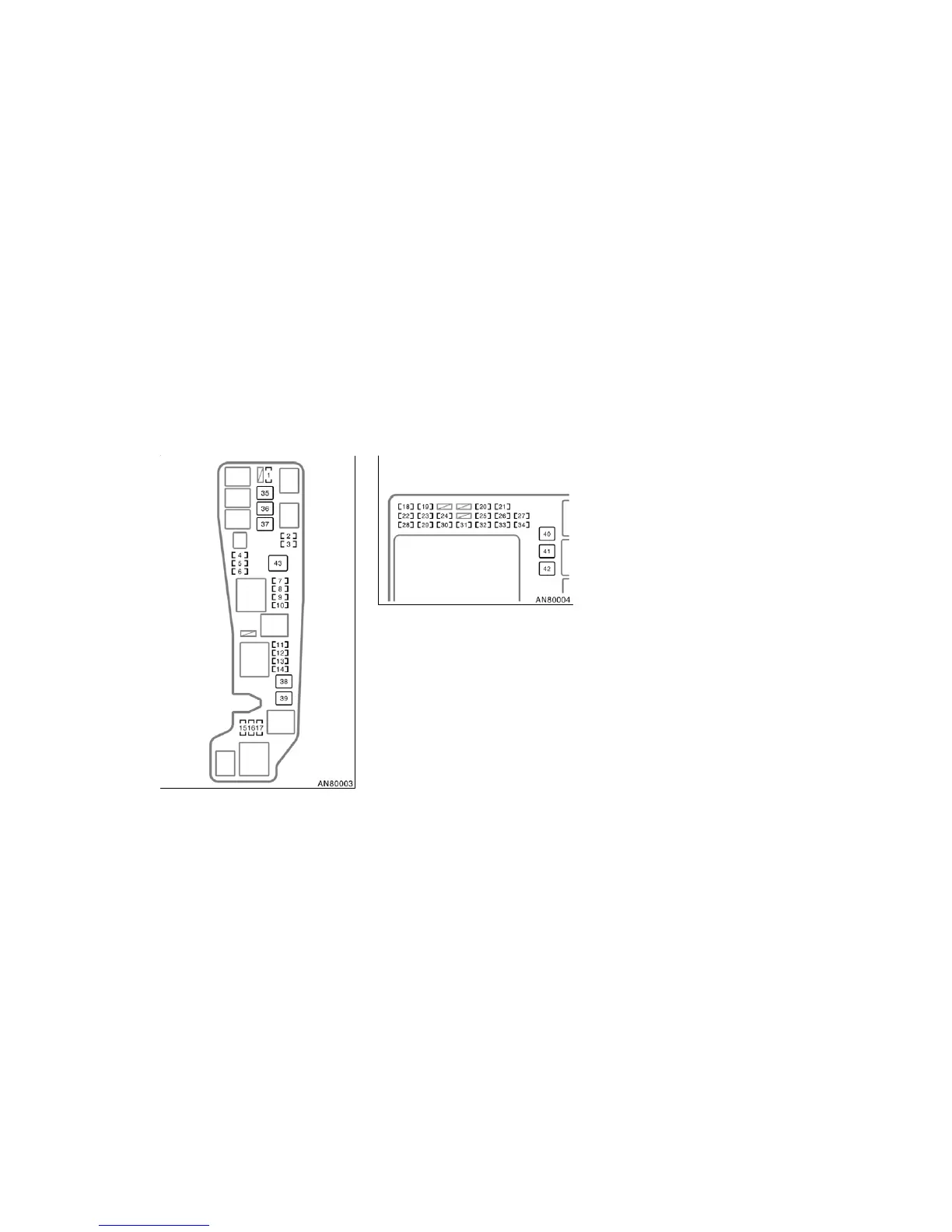

Engine compartment
Instrument panel
Fuses (type A)
1. FOG 15 A: Front fog lights
2. HEAD LH UPR 10 A: Left−hand head-
light (high beam)
3. HEAD RH UPR 10 A: Right−hand
headlight (high beam), headlight high
beam indicator light
4. SPARE 30 A: Spare fuse
5. SPARE 15 A: Spare fuse
6. SPARE 10 A: Spare fuse
7. ETCS 10 A (1.8 L 4−cylinder [1ZZ−
FE] engine with two−wheel drive
models only): Electronic throttle con-
trol system
8. AMP 30 A: Audio system
9. MAIN 30 A: Starting system, “AM2”
fuse
10. DOME 15 A: Audio system, navigation
system, clock, personal lights, interior
lights, open door warning light, wireless
remote control system
11. HORN 10 A: Horn
12. HAZARD 10 A: Emergency flashers,
turn signal lights
13. EFI 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, emission control system, “EFI”
fuse
14. ALT−S 5 A: Charging system
15. HEAD LH LWR 10 A: Left−hand head-
light (low beam)
16. HEAD RH LWR 10 A: Right−hand
headlight (low beam)
17. EFI2 15 A: (1.8 L 4−cylinder [1ZZ−FE]
engine with two−wheel drive models
only): Multiport fuel injection system/
sequential multiport fuel injection sys-
tem, emission control system
Fuses
