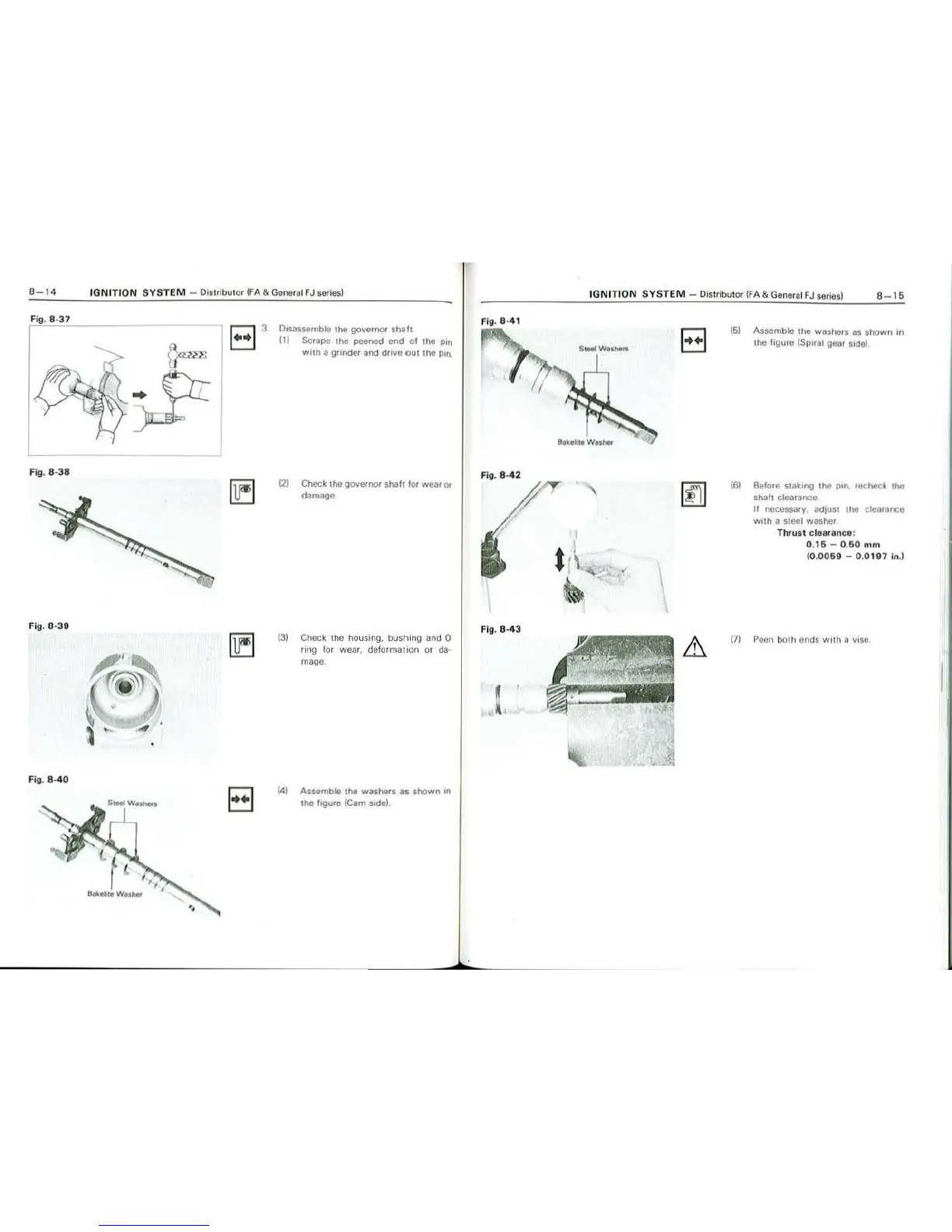

IGNITION SYSTE M - Di stribut or { FA & Gen eral FJ series!
r::l 3.
~
~~
~
l
..,
•
E1
Disassemble the governor sha It
(1) Scrape lhe peened end ol lhe pin
w11h a grinder and drive out tho P•n.
121 Check the governor shalt for wear or
damage.
(31
Check the ho using. bu sh ing and 0
rmg
fo r wear. deformation or da·
m age .
(41
Assemble 1he washers as shown on
the figure {Cam side)
Fig. 8 -41
Flg. 8· 42 r
Fig. 8 · 43
IG NI T ION SY STE M - Distributor (FA & General FJ serie s)
8- 15
Steel W1shert
151
Assemble the washers as shown on
1he ligure (Spiral gear sodel.
(61 Before s1ak1ng the pon. recheck the
shah clearance
If necessary ad1us1 1ho clearance
w11h a s1eel washer
Thrust clearance:
0. 15 - 0. 60 mm
f0 . 0059 - 0.0197 In.I
(71 Peon both ends with a vise
