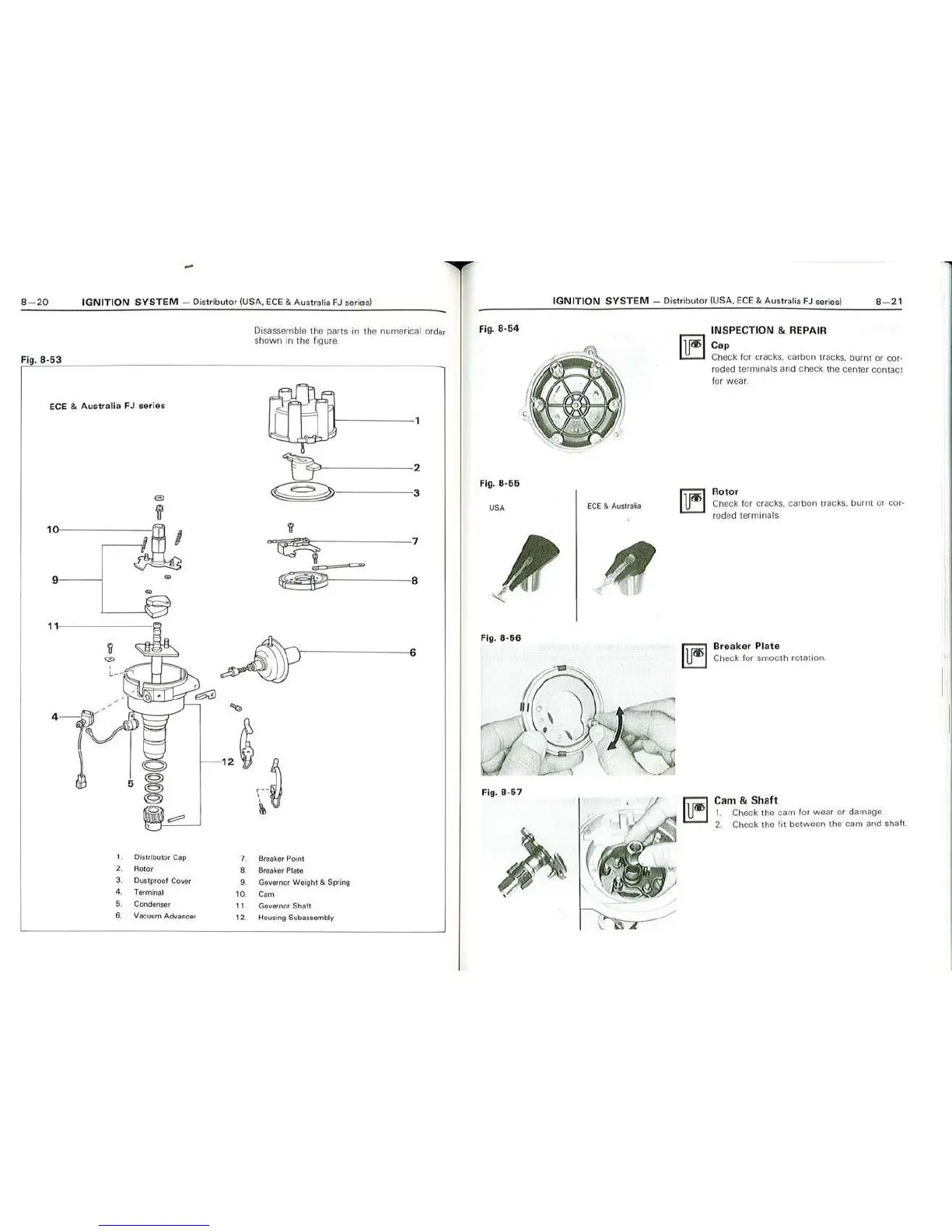

8-20 IGN I TION SYSTEM - Distrib ut or (USA. ECE & Australia FJ series}
Fig. 8-63
ECE & Australia FJ series
e
f
10
~
9
..
...
11
.,::::::'
I.
Ois tr i butor Cop
2. Ro to r
3. Dus1proof Cove r
4. Term i naJ
5.
Condense r
6. Vacuum Advancer
~
12
~
7.
s.
9.
tO .
11 ,
12.
Disassemble th e parts in the nu me ri ca l or de
1
shown in t he fi gu1e .
2
3
'ii
~
7
41>
a
eee
8
6
,- - ~
lb
Bte& k e1 P oin l
Breake r Pl atG
Governor We ig ht & Spr i ng
Cam
Gove1no r Sha ft
H o~ • sing Subassembly
IGNITION SYSTEM - Distrib ut or (USA. ECE & Australia FJ series}
8-2 1
fig. 8 - 64
Fig. 8 · 56
USA
ECE & A us tr alia
I
II
"-
Fig. 8-66
~ 1
Fig. 8-67
~
~
~
INSPECTION & REPAIR
Cap
Check f or cracks. carbon tracks. bu r nt or cor·
rod ed te rminals and check th e center contact
for wear.
Rotor
Check fo1 c1acks. ca 1b on iracks. burnt or cor-
roded terminals.
Breaker Plate
Check f or smooth rotation
Cam & Shaft
1 .
Check 1 he ca m for wear or damage.
2.
Check t he ht between the cam and shah.
I
I
