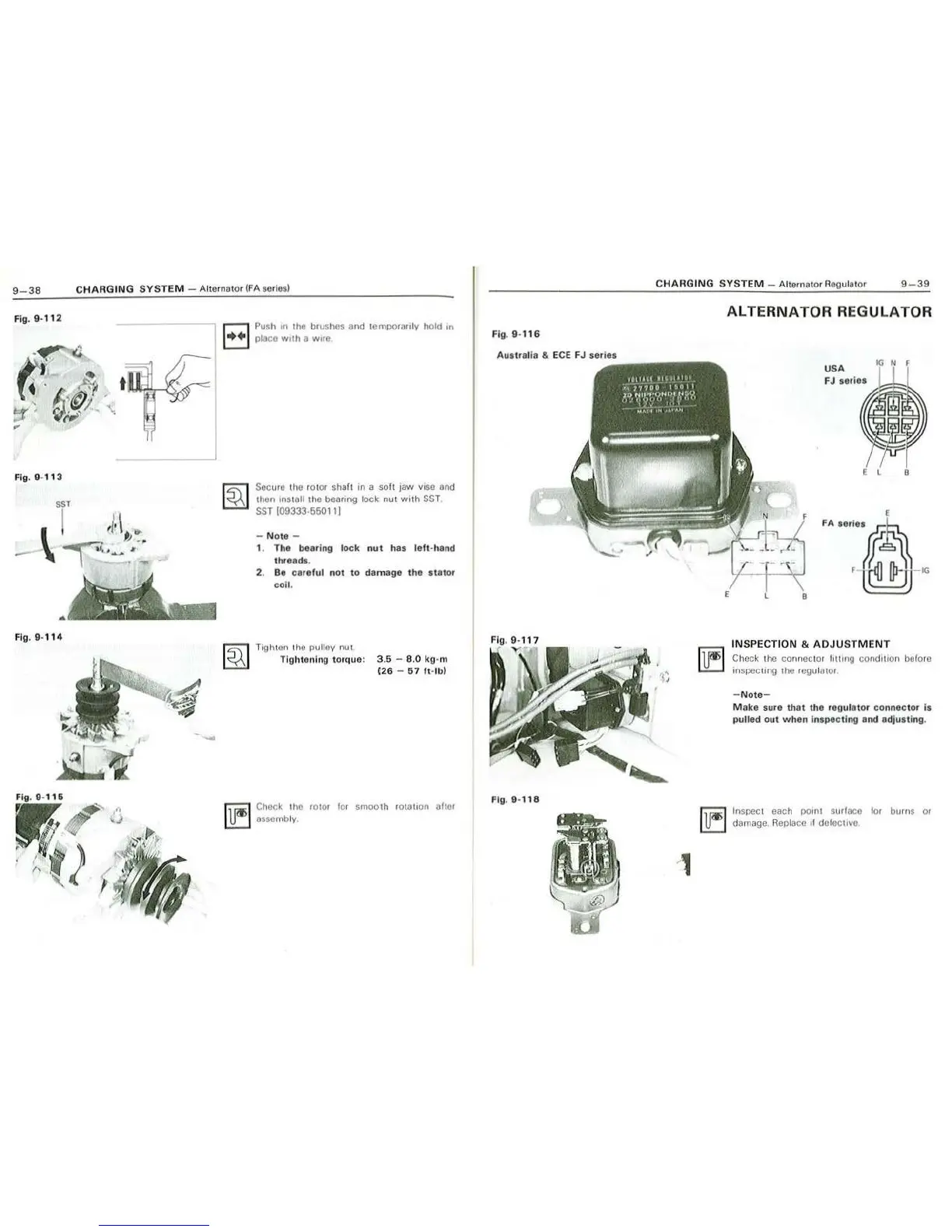

Toyota 2F - Alternator Regulator

9- 38
Fig. 9-112
Fig. 9 -11 3
Flg.9 - 114
Fig. 9· 116
CHARGI NG SYSTE M - A lt ernator (FA series)
...
r::J Push 1n the brushes and temporarily hold on
i.:.:J place wllh a wore
Secure the r otor shah in a sofl 1aw vose and
then insloll tho bearing I oe le nut with SST
SST (09333·6501 Ii
- N ote -
1. The bearing lock nut has left -hand
threads.
2. Be careful not to damage th e stator
coll .
Ti gh ten lhe pulley nut
Tig ht eni ng torque: 3 .5 - 8.0 kg·m
1 26 - 57 IHbl
lii2ii! Chock tho rotor lor smooth rorn11on alter
~ assemb l y ,
Fig. 9- 116
A us tralia & ECE FJ ser ies
Fig. 9- 118
CHARGING SYSTEM - Alternator Regulator 9-39
1
ALTERNATOR REGULATOR
E
E
l B
.. ..... ~
r ~ ~
INSPECTION & ADJUSTMENT
C he ck t he co nnector foiling condotoon before
on specung the regulator
- Note -
Make sure that th e regulator connector is
pulled o ut when inspe cti ng and adj usti ng .
Inspect each poo nt surface for burns or
damage.
Replace ol defectove.
