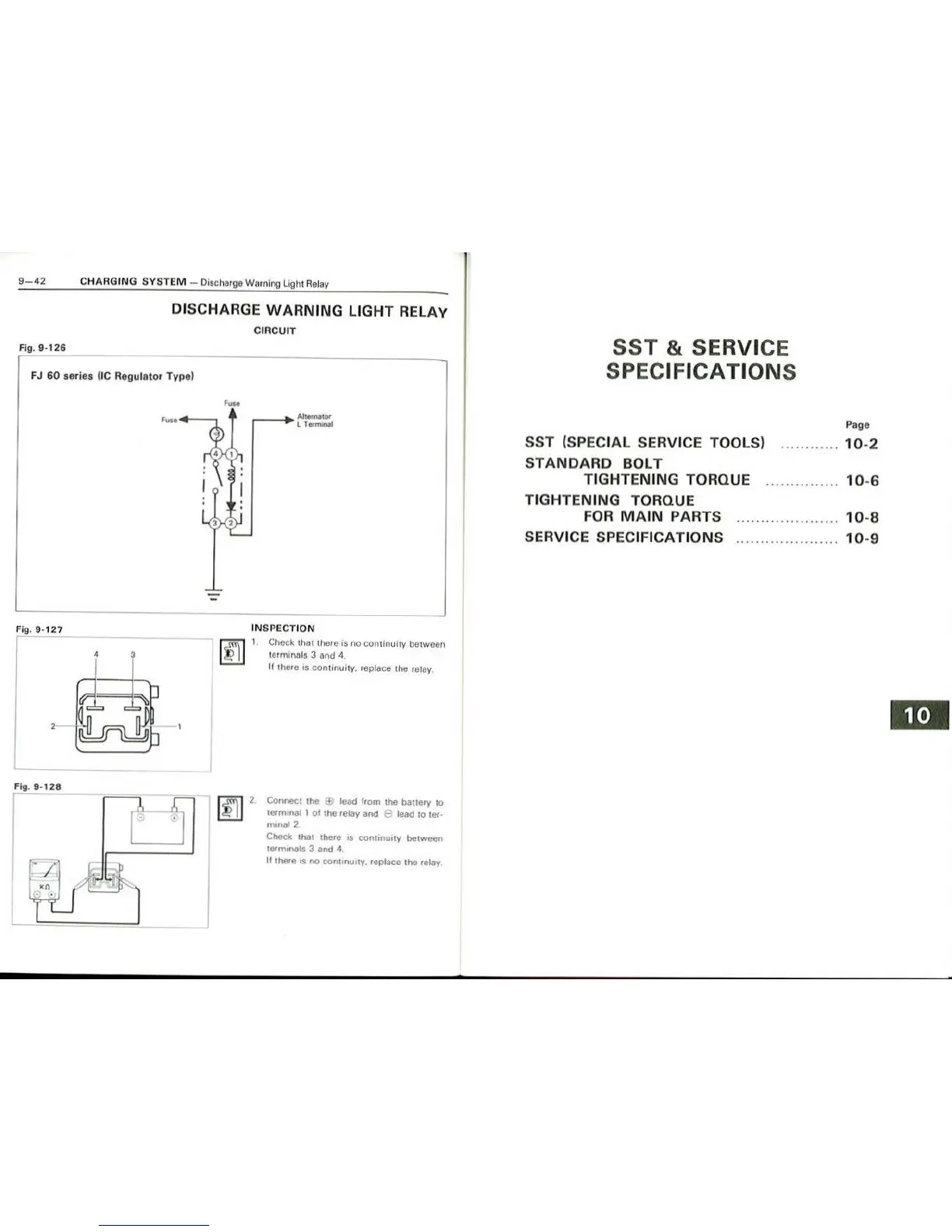

9-42 CH ARG IN G SY STE M - Discharge Warning Light Rel ay
Fig. 9 ., 26
DISCHARGE WARN IN G LIGHT RELAY
CIRCU IT
FJ 60 series (IC Regulator Type )
-
-
Fig. 9. 12 7
2
Fig. 9 · 128
I
IN SPEC TI ON
Check that theie 1s no continuity betw een
1erminals 3 and 4.
If th ere is contin ui ty. re place th e rel ay.
Connect the ~ lead lrom the battery to
tetm1nal 1 of the relay and 6 lead to tet ·
m1na l 2
Check thal there IS cont1nu11y betw een
terminals 3 and 4.
If there is no cont1nui1y. replace 1he relay
SST & SERVICE
SPECIFICATIONS
SST (SPECIAL SERVICE TOOLS)
STANDARD BOLT
TIGHTENING TORQUE
TIGHTENING TORQUE
FOR MAIN PARTS
SERVICE SPECIFICATI
ONS
Page
10 -2
10 -6
10 -8
10 -9
