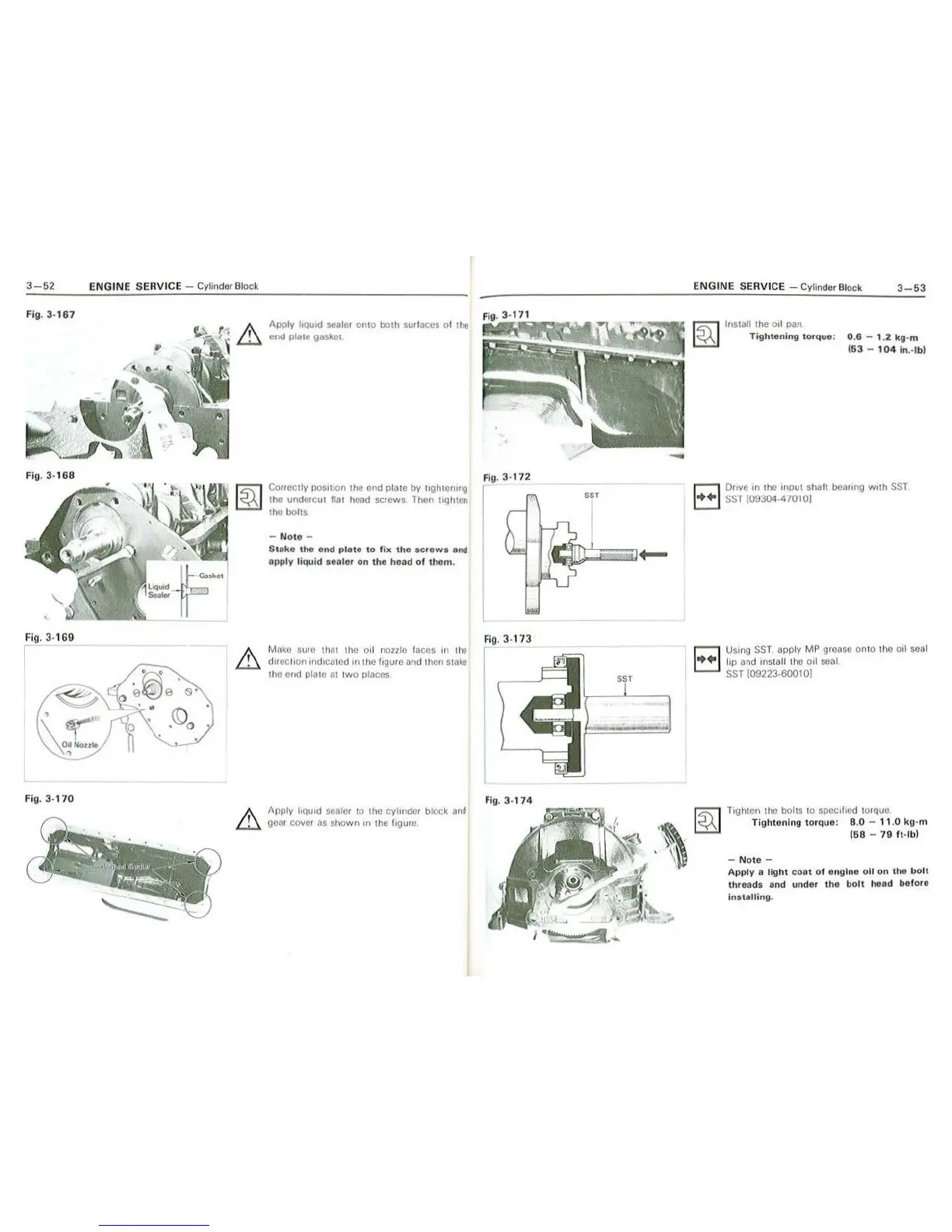

3- 52 ENGINE SERVICE - Cylinder Bl ock
Fig. 3 · 167
Fig. 3· 168
Fig. 3 · 170
Apply hQu1d sealer on10 both surfaces or the
end plate gasket
Correctly posmon the end plate by 119hten1ng
the undorcu1 flat head screws Then uqhtcn
Ille bolls
- Note -
Stoke 1h e end plate to fix the scre ws and
a pply li qu id senior on tho head of them.
Mok c sure th at the 011 nozzle tacos " ' the
diroc11on 1n d1 cated in the figure and then siake
tho end plate ot two places
Apply
hqu1d sealer to the cylinder block an d
goar co ver as shown in the lrgure.
Fig. 3· 172
Fig. 3- 173
I
Fig. 3· 174
SST
SST
ENGINE SERVICE - Cylinder Block
3- 53
lns1all the 01 1 pan
Tightening torque:
0.6 - 1.2 kg ·m
( 53 - 104 in.-lb)
r::J Dnve on the inp ut shaft boorong wllh SST
D SST (09304-47010)
Usi
ng SST. apply MP groaso on to tho oil seal
hp and 11 1 siall t he 0 11 seal
SST (09223·6001 OJ
Tig ht en the bolls to spec 1r1od torque
Tightening torque: 8 .0 - 11.0 kg·m
158 - 70 ft ·lb)
- Note -
Apply a light coat of engine oi l on the bolt
threads and under the bo lt hood before
installing.
