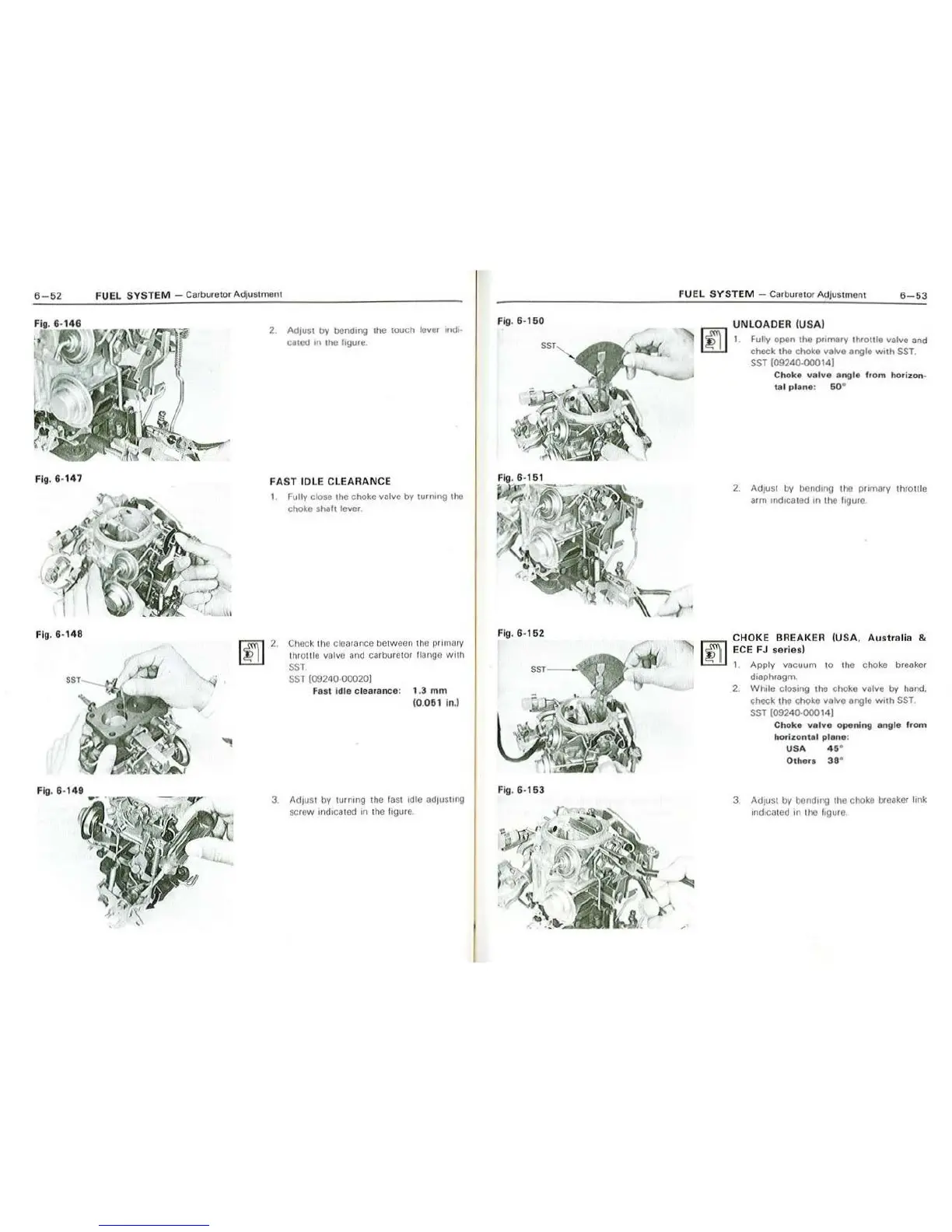

Toyota 2F - Page 80

6-52
Fig. 6· 147
Fig. 6·1 48
FU EL SYSTEM - Carburetor Adjustment
111
2. Ad1ust by bending 1he touch lever 1nd1 ·
ca1cd m lhe figure.
FAST IDLE CLEARANCE
~ 2.
Fully close lhe choke valve by turning tho
choke shalt lever
Check
1h e clearance be tw een 1ho pri ma 1y
thro
lll e valve and carburetor flango with
SST
SST (09240 000201
Fast i dlo clearance: 1 .3 mm
(0.061 In.I
3 l\d1ust by 1urning lhe fas1 idle ad1ushllg
sc row ind1ca led in 1 he hgure
Fig. 6- 150
Fig. 6· 1 52
Fig. 6-153
FUEL SYSTEM - Ca rburetor Ad jus 1m ont
6- 53
UNLOADER (USA)
~ 1. fully open the primary throule valve and
l.!!L!.I check 1he chOke valve anglo with SST .
SST(09240--00014)
Choke valve angle from horizon-
tal plane: 50 •
2. Ad1ust by bend1119 11 10 primary 1hro1tle
arm incf1ca 1 ed 1n the figure
CHOK E BREAKER (USA, Australia &
~ ECE FJ series)
~ I Apply vacuum to tho choke breaker
diaphragm.
2. While closing the choke valve by hand.
cneck the choke valve angle with SST
SST {09240·00014)
Choke valve opening angle from
horizontal plane:
USA 45 •
Others 38 °
3 Ad1us1 by bonding tho cho ke breaker link
1
nd1ca1ed 1n tho l19ur o
