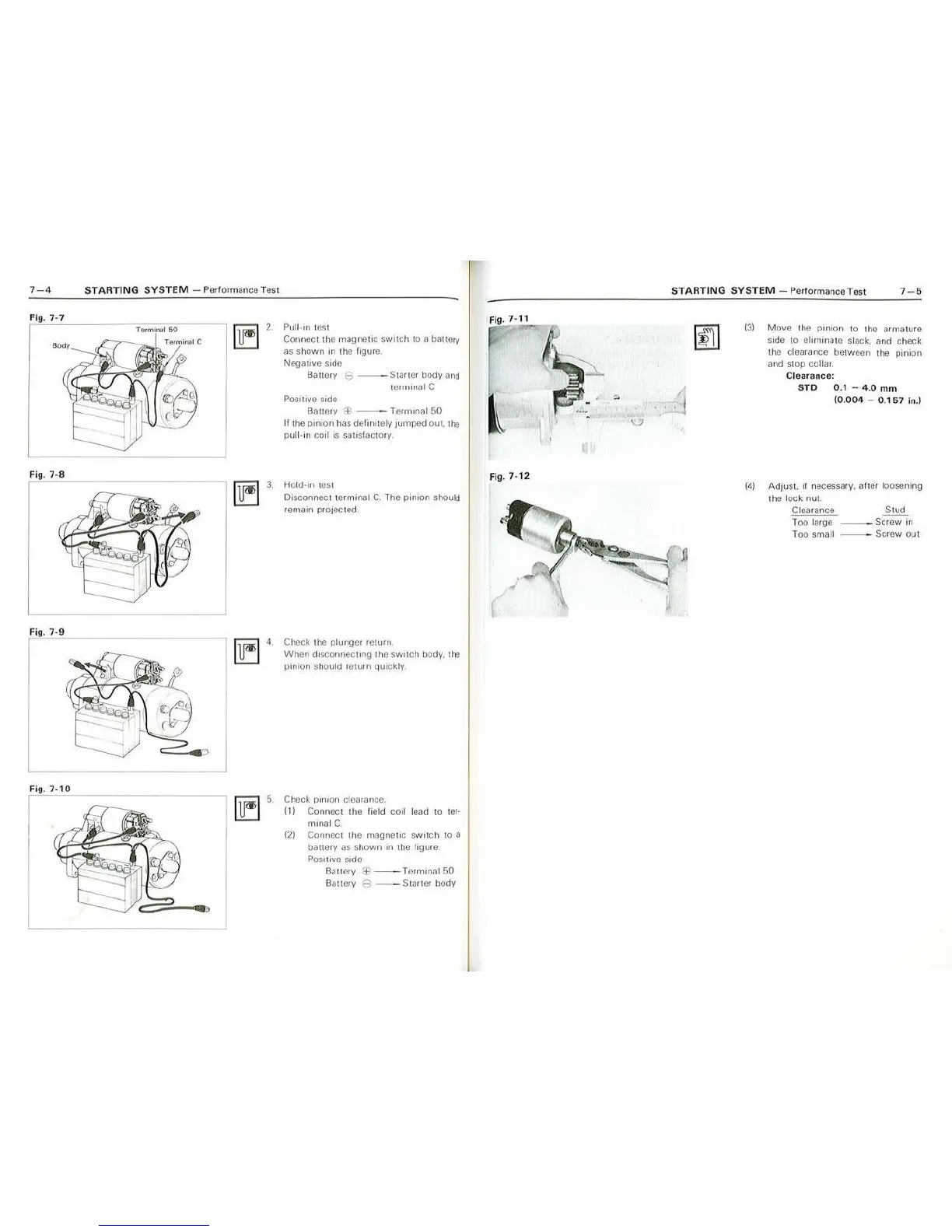

7- 4 STARTI NG SYSTEM - Pe rform an ce Test
Fig.
7-7
~ 2 .
Fig. 7-8
~ 3 .
Fig. 7-9
Fig. 7-10
~ $ .
Pull- on test
Connect the magnetic switch to a batteoy
as shown 1n the figur e.
Negauve sode
Ba uery 8 --- Starter body and
terminal C
Postt 1 ve side
Battery :fl - - - Terminal 50
If the po noon has dcfonote ly iumped out. the
pull -in coil is sausfac1ory .
Ho ld·in test
Disconnect
terminal C. The pinion should
remain project ed .
Clleck the plunger retu111 .
When d1
sconnec1 1 ng t he sw11c h l:>o(fy, the
pinion should return quickly.
Ch ec k p1 111 on cloa 1 ance .
(I) Connect the held co il l ead to t e•·
m1na l C
(2) Connect the magnetic sw11c h to a
battery as shown
on the ligure.
Positive
sodo
Ba t tery $ --Termina l 50
Battery 8 - - Starter body
Fig. 7-11
Fig. 7· 12
·-
./
,
l
\.l
\ I
STARTING SYSTEM - Performance Test 7- 5
(3)
(4)
Move the pi nio n 10 1he ar ma1 ur e
side 10 ehmmate slack. and check
the cl
ea rance betw een th e pinion
and st op co ll ar.
Clearance:
STD 0.1 - 4.0 mm
10 . 004 - 0 .1 57 in .)
Adjus t. if necessary. after loosening
the lock nut.
Clearance Stud
Too large -- - Sc rew in
Too
small -- - Screw o ut
