Toyota 2F - Page 87

7- 8

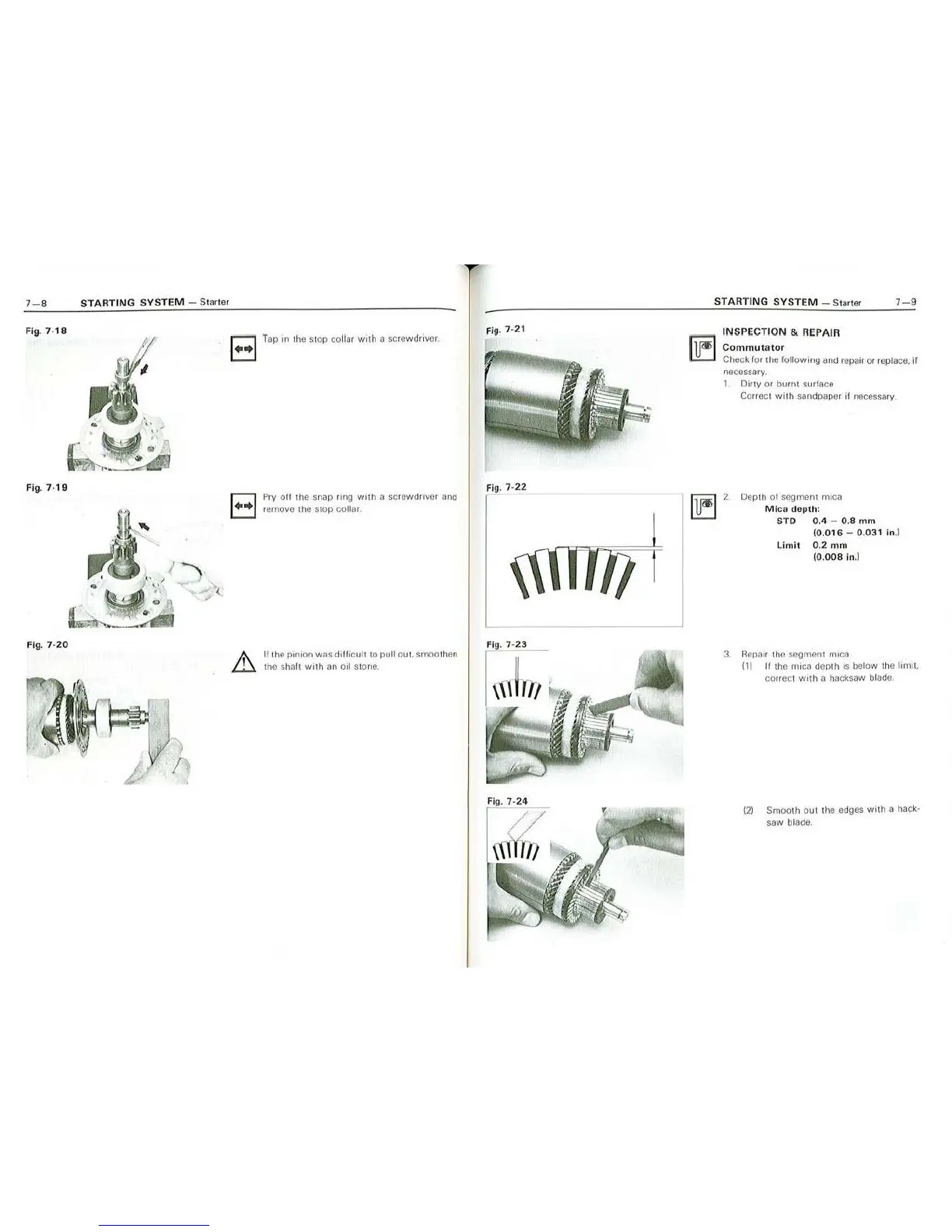

STARTING SYSTEM - Starter
Fig. 7- 18
Fig. 7- 19
Fig. 7-20
Tap on the st op co ll ar with a scr ew driver.
Pry
off th e snap ring with a screwdriver Md
remove !he stop collar
If th e pinion was diflicult to pull o ut . smooo hen
the shalt with an oil stone
Fi9 . 7·21
Fig. 7· 22
Fig. 7-2_3 __
Fig. 7- 24
STARTING SYSTEM - Starter
!NSPE CT!ON S. REPAIR
Commutator
7 -9
Check for the following and repair or replace. if
necessary.
1. Dirty or burnt surface
Correct with sandpaper it necessary.
De pt h or segment mica
M ica depth:
STD 0.4 - 0.8 mm
( 0.016 - 0.031 in .)
Linli1 0.2 n1n1
(0. 008 in.I
3. Repair th e segment mica
(1) If the mica depth is below the limit.
correct with a hacksaw blac Je .
(2) Smoo th o ut the edges with a hack·
saw blade.
