Toyota 2F - Ignition System

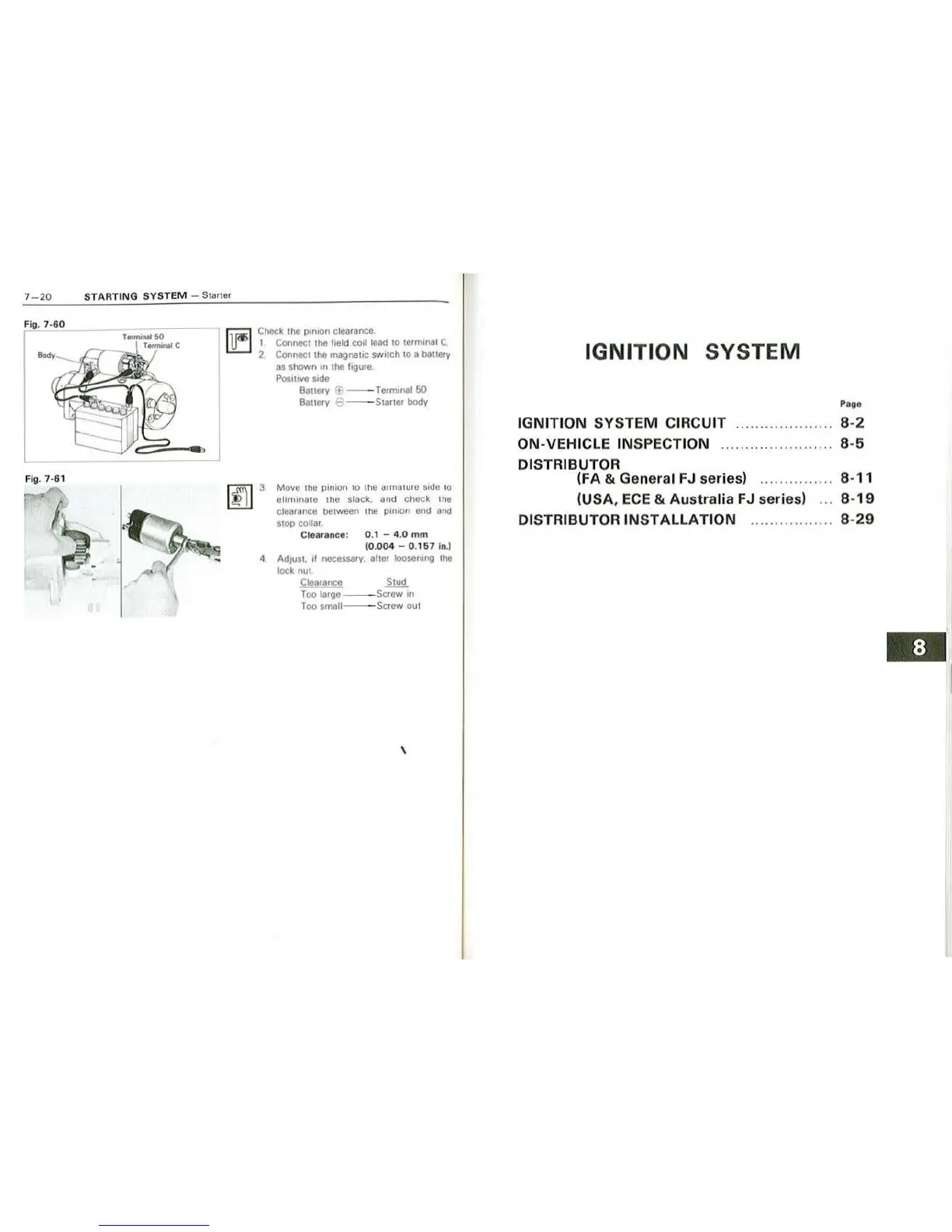

7- 20 START IN G SYSTEM -Sta rter
Fig. 7-61
Check 1he ponoon clearance.
I
Connect the held cool lead to terminal C
2 Connect the magne11c switch to a battery
as shOwn
on the figure
Pos111ve side
Bauery
'i' - -Terminal 50
Ba11cry A --S1a11er body
Move 1he ponoon 10 lhe arma1ure soda 10
01om1no1e the slack. and check t he
clearance between 1he pinion end and
s1op collar
Clearance: 0.1 - 4.0 mm
(0.00 4 - 0. 167 in.I
4 AdJUSI. of necessary. alter loosening the
lock nu1
Clearance
Too
large--Screw on
Too small Screw oul
\
IGNITION SYSTEM
Page
IGNITION SYSTEM CIRCUIT ...... ........... .. . 8-2
ON-VEHICLE IN SPECTION .......... .. ........... 8-5
DISTRIBUTOR
(FA & General FJ series)
(USA, ECE & Australia FJ series)
DISTRIBUTOR IN STALLATION ................ .
8-11
8-
19
8- 29
