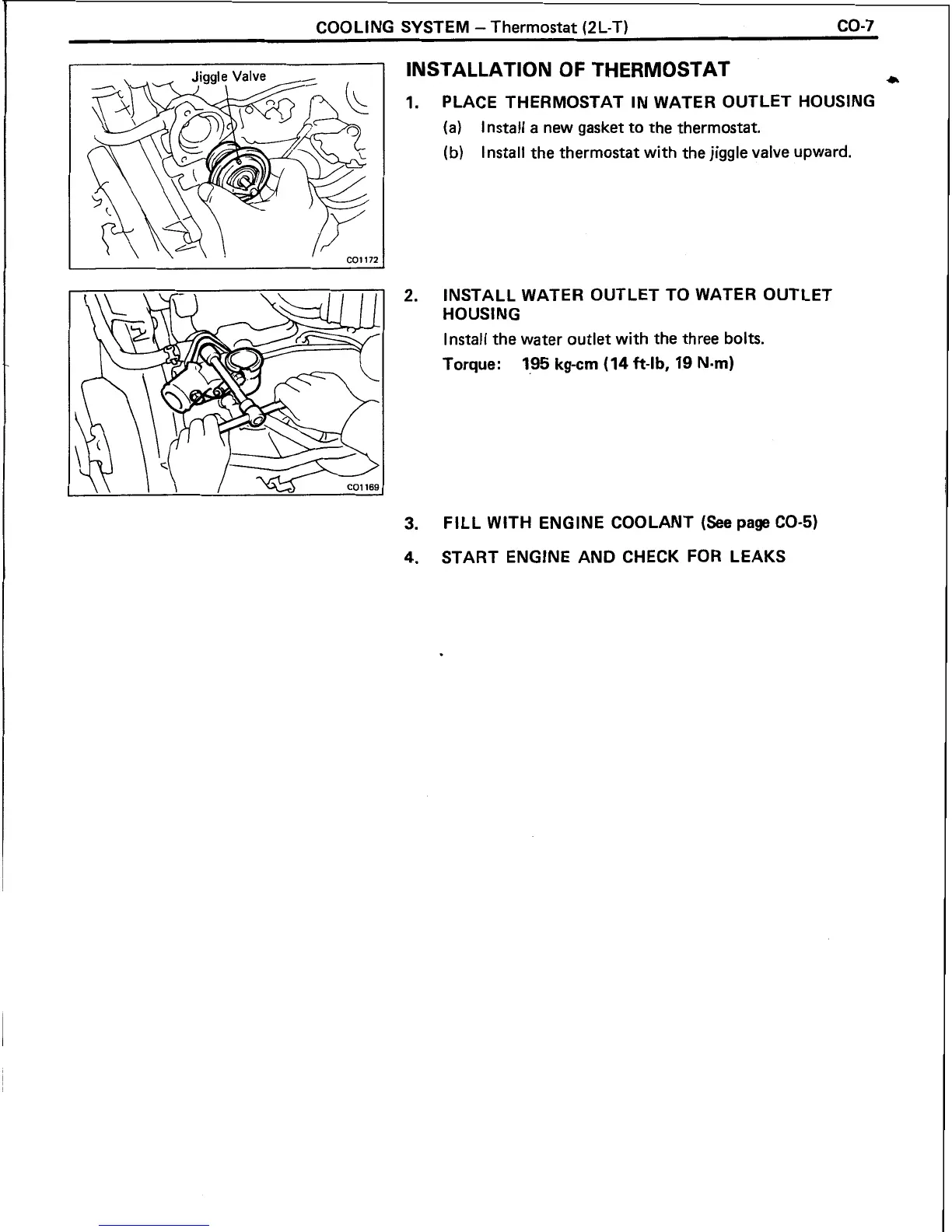

COOLING SYSTEM
-
Thermostat
(2L-T)
CO-7
INSTALLATION OF THERMOSTAT
.r*
1.
PLACE THERMOSTAT IN WATER OUTLET HOUSING
(a)
Install a new gasket to the thermostat.
(b)
Install the thermostat with the jiggle valve upward.
2.
INSTALL WATER OUTLET TO WATER OUTLET
HOUSING
Install the water outlet with the three bolts.
Torque:
195kg-cm(14ft-lb,19N.m)
3.
FILL WITH ENGINE COOLANT
(See
page
CO-5)
4.
START ENGINE AND CHECK FOR LEAKS
