Pushing
force
98
N
(10
kgf)
[22
Ibfl

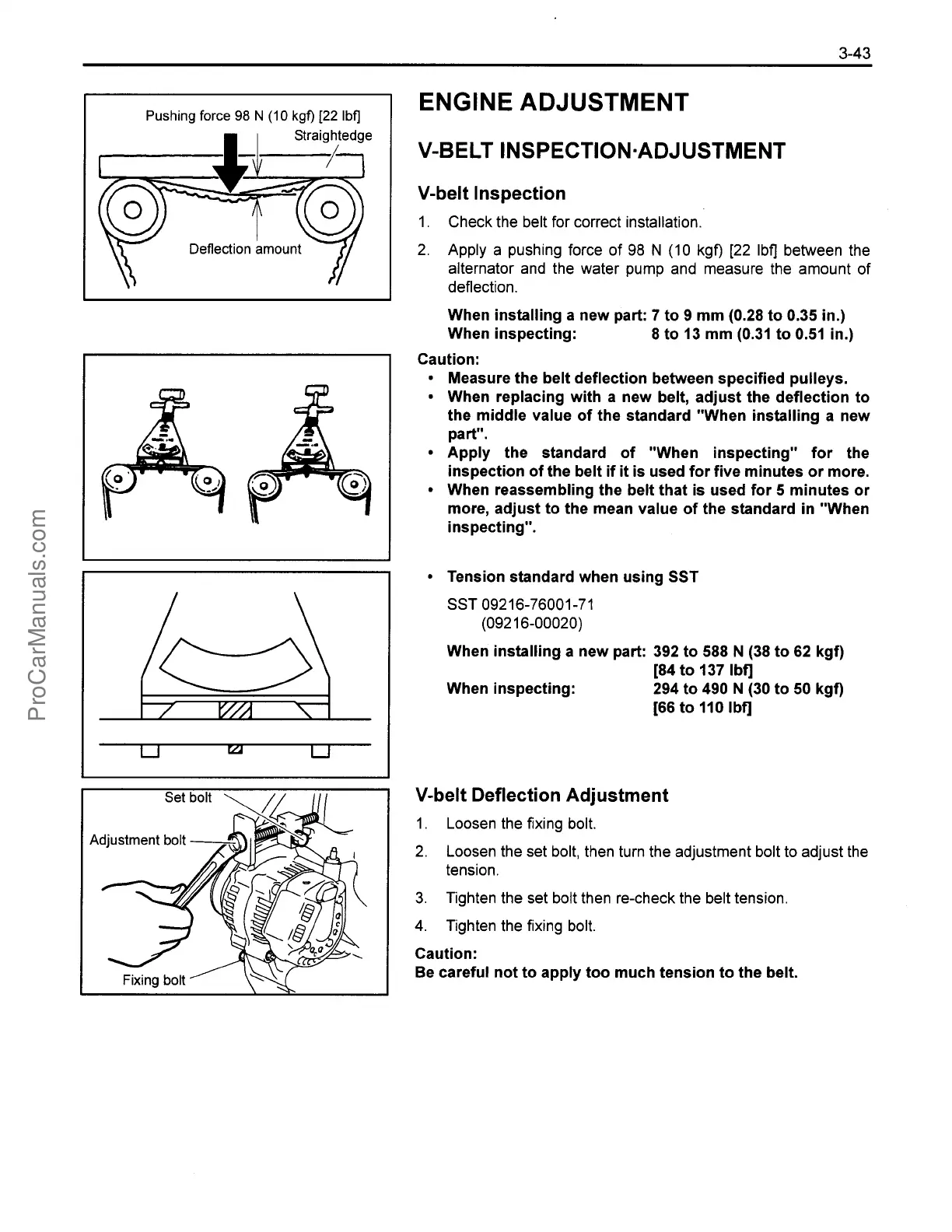

ENGINE ADJUSTMENT
V-BELT INSPECTION-ADJUSTMENT
V-belt Inspection
1.
Check the belt for correct installation.
2.
Apply a pushing force of 98
N
(10 kgf) [22 lbfj between the
alternator and the water pump and measure the amount of
deflection.
When installing a new part:
7
to
9
mm
(0.28
to
0.35
in.)
When inspecting:
8
to
13
mm
(0.31
to
0.51
in.)
Caution:
Measure the belt deflection between specified pulleys.
When replacing with a new belt, adjust the deflection to
the middle value of the standard "When installing a new
part".
Apply the standard of "When inspecting" for the
inspection of the belt if it is used for five minutes or more.
When reassembling the belt that is used for
5
minutes or
more, adjust to the mean value of the standard in "When
inspecting".
Tension standard when using
SST
SST 0921 6-76001 -71
(092 16-00020)
When installing a new part:
392
to
588
N
(38
to
62
kgf)
[84
to
1 37
I
bfl
When inspecting:
294
to
490
N
(30
to
50
kgf)
[66
to
110
Ibfl
V-belt Deflection Adjustment
1. Loosen the fixing bolt.
2. Loosen the set bolt, then turn the adjustment bolt to adjust the
tension.
3.
Tighten the set bolt then re-check the belt tension.
4.
Tighten the fixing bolt.
Caution:
Be careful not to apply too much tension to the belt.
