(C)TOP STRAP ANCHORS AND LOCA-
TIONS
Sedan—On the filler panel behind the
rear seat
With filler panel trim—

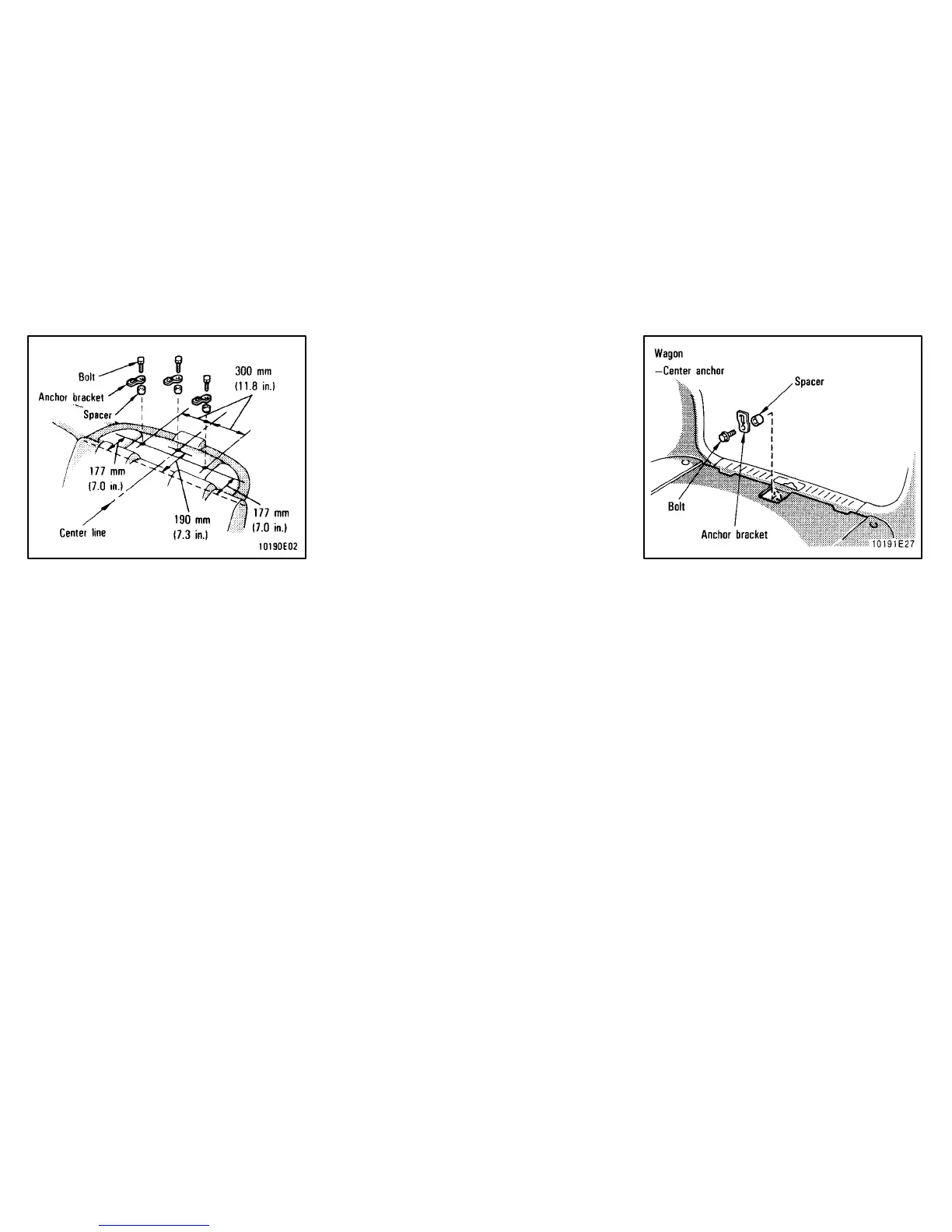

a. Using the illustration as a guide, run
your fingers across the trim of the filler
panel itself to locate the position of the
holes underneath.
b. Make a hole in the covering directly
above the hole in the filler panel.
c. Insert a 10 mm (0.4 in.) spacer and
tighten down the anchor bracket for your
child restraint system with a bolt. Torque
the bolt to 16.5—24.7 N⋅m (1.68—2.52
kgf⋅m, 12.2—18.2 ft⋅lbf).
Without filler panel trim—
a. Remove the cap on the filler panel you
wish to use.
b. Insert a 10 mm (0.4 in.) spacer and
tighten down the anchor bracket for your
child restraint system with a bolt. Torque
the bolt to 16.5—24.7 N⋅m (1.68—2.52
kgf⋅m, 12.2—18.2 ft⋅lbf).
To comply with Canada Motor Vehicle
Safety Standards, vehicles sold in Cana-
da are provided with a bracket set in the
glovebox, designed for use with any of the
3 anchor locations shown in the illustra-
tion.
Wagon—On the rear cargo floor
Center anchor—
a. Roll up the covering on the rear cargo
floor. The center anchor hole is plugged.
Cut out the rear deck trim along the dotted
line.
b. Insert a 10 mm (0.4 in.) spacer and
tighten down the anchor bracket for your
child restraint system with a bolt. Torque
the bolt to 16.5—24.7 N⋅m (1.68—2.52
kgf⋅m, 12.2—18.2 ft⋅lbf).
c. Cut a small hole in the floor covering to
allow the anchor bracket to come through
and then reinstall the floor covering.
