1-1. For safe use
Corolla_TMMT_EE (OM12F04E)
The main SRS airbag system components are shown above. The
SRS airbag system is controlled by the airbag sensor assembly. As
the airbags deploy, a chemical reaction in the inflators quickly fills the
airbags with non-toxic gas to help restrain the motion of the occu-
pants.

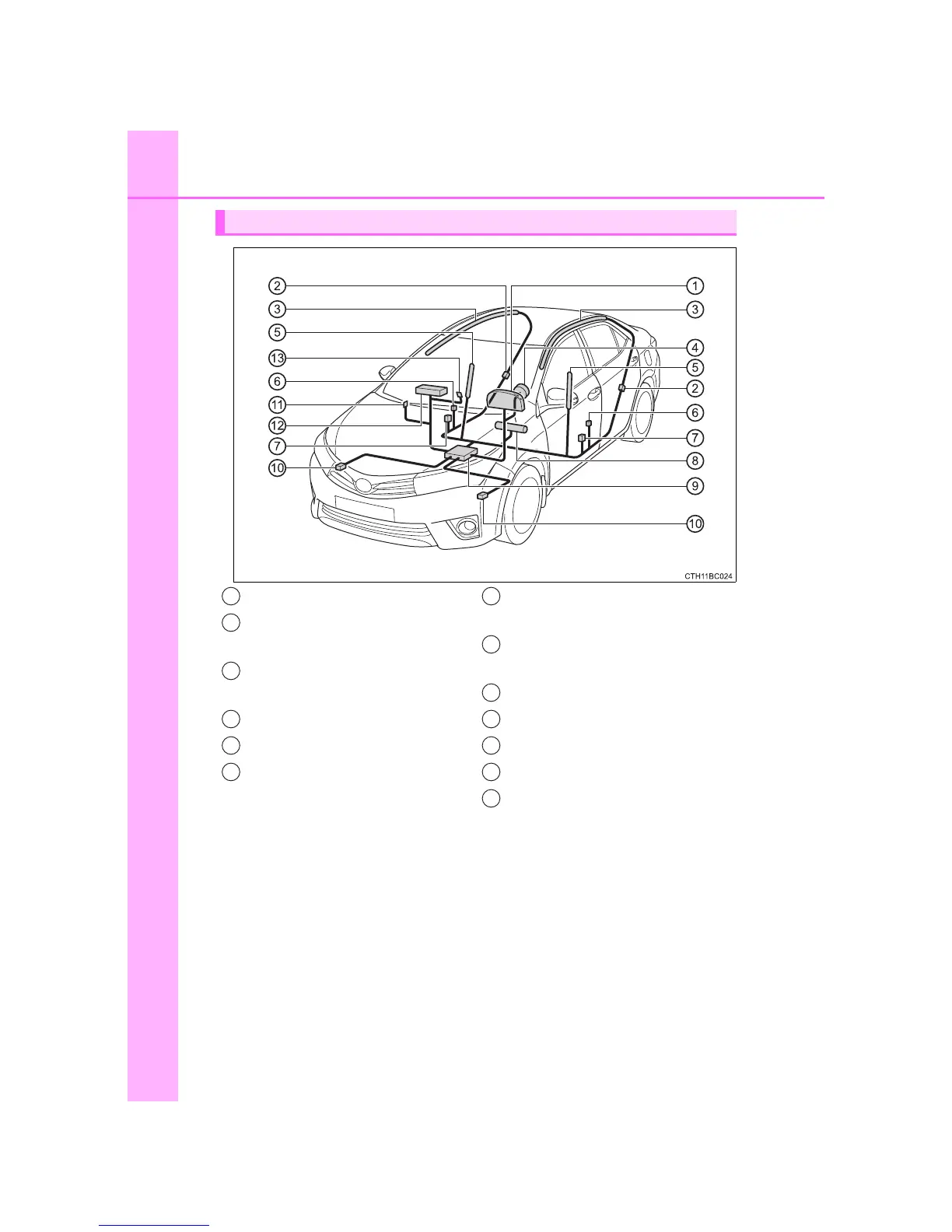

SRS airbag system components
SRS warning light
Side impact sensors (rear) (if
equipped)
Curtain shield airbags (if
equipped)
Driver airbag
Side airbags (if equipped)
Side impact sensors (front) (if
equipped)
Seat belt pretensioners and
force limiters
Driver’s knee airbag (if
equipped)
Airbag sensor assembly
Front impact sensors
Airbag manual on-off switch
Front passenger airbag
Airbag manual on-off indicator
1
2
3
4
5
6
7
8
9
10
11
12
13
