TP-Link Archer T2U Plus User Manual

11
Chapter 4 Mac OS X

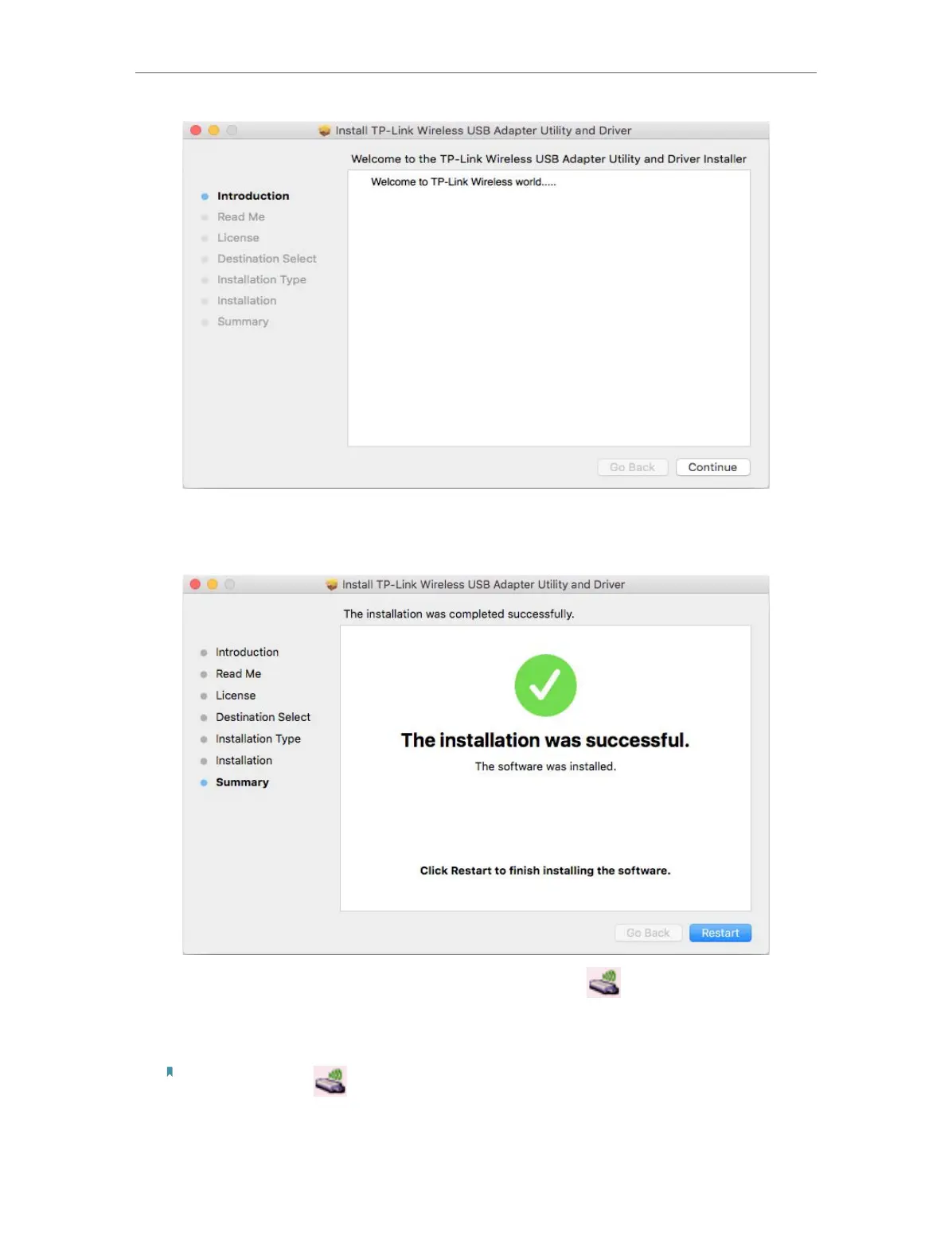

4. When the following screen appears, the driver and utility have been installed
successfully. Click Restart to finish the installation.
5. After restarting the computer, the TP-Link Utility icon will appear on the menu
bar in the upper-right corner of the screen. To use the utility to join a Wi-Fi network
with your adapter, refer to Join a Wireless Network.
Note:
If the TP-Link Utility icon
does not appear on the menu bar, make sure the USB wireless network adapter
is connected properly and its LED is on.

TP-Link Archer T2U Plus Specifications

General

Interface	WLAN
USB version	2.0
Connectivity technology	Wired
Wi-Fi	Yes
Modulation	16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, OFDM
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Frequency range	2.4 - 5 GHz
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	600 Mbit/s
WLAN data transfer rates supported	150, 200, 433 Mbit/s
Gain	5 dBi
Antennas quantity	1
Detachable antenna(s)	-
Certification	FCC, CE, RoHS
Component for	Laptop
Product color	Black
LED indicators	Status
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.13 High Sierra
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows XP
Package depth	148 mm
Package width	207 mm
Package height	42 mm
Package weight	140 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	18 mm
Width	57.8 mm
Height	173.4 mm
